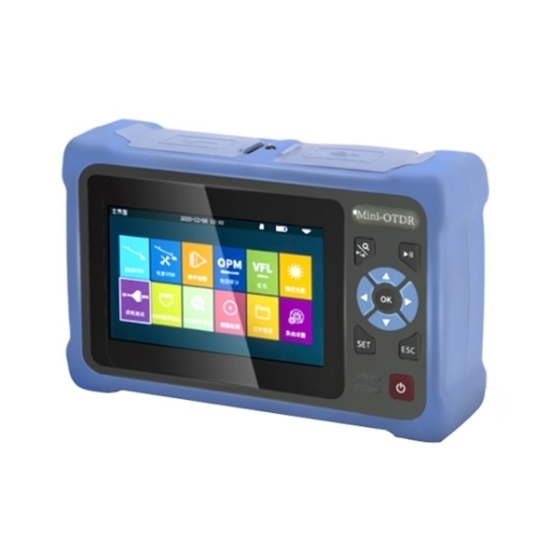

Single Mode Mini OTDR Tester

0 reviews • Write a review

from

$897.86

Ex Tax: $897.86

Stock: In Stock
Model: RDDLZ-OTDR-4000D
Weight: 1.00
SKU: RDDLZ-OTDR-4000D

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Sell professional fiber optic tester, wavelength 1550nm, dynamic range 24dB, mini otdr fiber optic tester provides users with high precision fiber optic test curve data, users can more intuitively understand and analyze the status and failure of the entire fiber optic link.

Specification

Model	RDDLZ-TM4000D
Wavelength	1550nm
Dynamic Range	24dB
Test with Light	Not Supported
Display	4.3-inch multi-touch capacitive screen
Output Power	10mW
Operating Mode	CW/1Hz/2Hz
Fiber Type	G.652 single-mode fiber
Event Blind Zone	2.5m
Attenuation Blind Area	8m
Measurement Range	500m, 1km, 2km, 4km, 8km, 16km, 32km, 64km, 100km
Pulse Width	3ns~20us
Distance Measurement Accuracy	±( 1m+sampling interval+0.005 % x test distance)
Linearity	±0.05dB/dB
Sampling Points	16k~128k
Sampling Resolution	0.05m~8m
Reflection Accuracy	±3dB
Data Storage	8G
Laser Safety Level	Class2 level
File Format	SOR standard file format

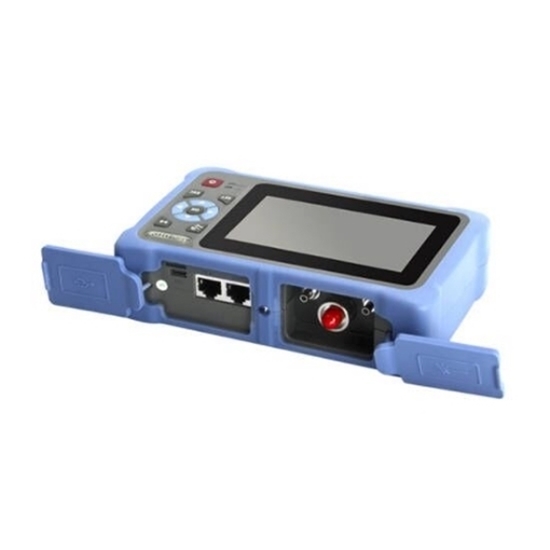

Optical Connector	FC/UPC (interchangeable SC, ST); optional SC/APC
Data Interface	Type-C
Extended External Storage	TF card
Power Supply	Li-polymer battery: 3.7V, 4000mAh
Power Adapter	5VDC, 2A
Battery Life	Standby>20 hours, measurement>12 hours
Weight	500g
Working Temperature	-10℃~+55℃
Storage Temperature	-20℃~+80℃

Features

Support 12 functions: Automatic OTDR, Expert OTDR, Event Map, Optical Power Meter, Visible Red Light, Adjustable Light Source, Optical Loss Test, RJ45 Network Cable Pairing, RJ45 Network Cable Ranging, RJ45 network cable line finding, Flashlight, Endface Inspection.
Single mode functional OTDR tester equipped with a high-performance chip, performance + energy efficiency double enhancements, smooth operation, accurate measurement, and intelligent battery management makes the battery life also greatly enhanced.
Large-capacity polymer battery, stable current, long-lasting battery life, safe to use, standby longer than 20 hours.
8G storage capacity, support auto-save, SOR format, PDF format, can store 200,000 items.

Details

Applications

Tips: How to choose the wavelength of the fiber optic tester?

The 1550 wavelength test distance is longer, 1550nm is more sensitive to bending than 1310nm fiber, 1550nm has less attenuation per unit length than 1310nm, and 1310nm has higher fusion or splice loss measured than 1550nm. In actual fiber optic cable maintenance work, the two wavelengths are generally tested and compared. For both the positive gain phenomenon and over spacing line, two-way test analysis and calculation are performed to obtain good test conclusions.
