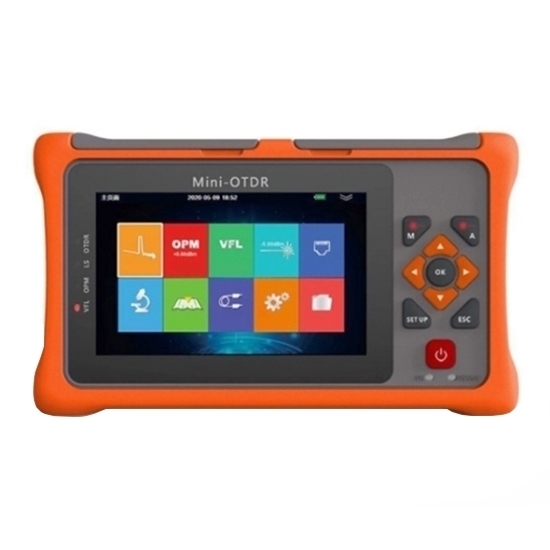

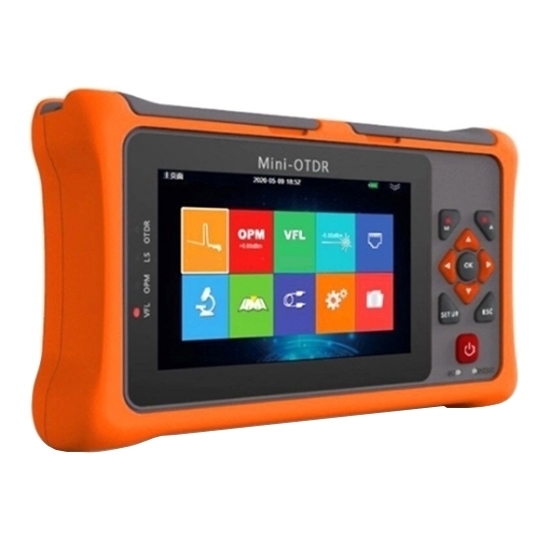

9 In 1 Mini OTDR Fiber Optic Tester

0 reviews • Write a review

from

$897.86

Ex Tax: $897.86

Stock: In Stock
Model: RDDLZ-OTDR-1100
Weight: 1.00
SKU: RDDLZ-OTDR-1100

Available Options

Connector Endface

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy online multifunctional mini optical domain reflectometer, support OTDR, OPM, VFL, LS, network cable test, fiber optic detection, event map, loss test, flashlight and other nine functions. 9 in 1 mini OTDR fiber optic tester wavelength 1310/1550nm, dynamic range 22/20dB, support uploading data via USB interface to PC terminal for further data analysis, processing and printing test results.

Specification

Model	RDDLZ-TM1100-A22D
Wavelength	1310/1550nm
Dynamic Range	22/20dB
Measuring Range	100m, 500m, 2km, 5km, 10km, 20km, 40km, 70km
Sampling Resolution	Minimum 0.2m
The Sampling Point	64,000 Point
Inearity	≤0.05dB/Db
Loss Threshold	0.01dB
Loss Resolution	0.001dB
Range Resolution	0.01m
Range Accuracy	±(0.5m+Range×3×10-5+Sampling resolution), (Excluding refractive index error）
Memory	>100000
VFL	10mW，CW/2Hz

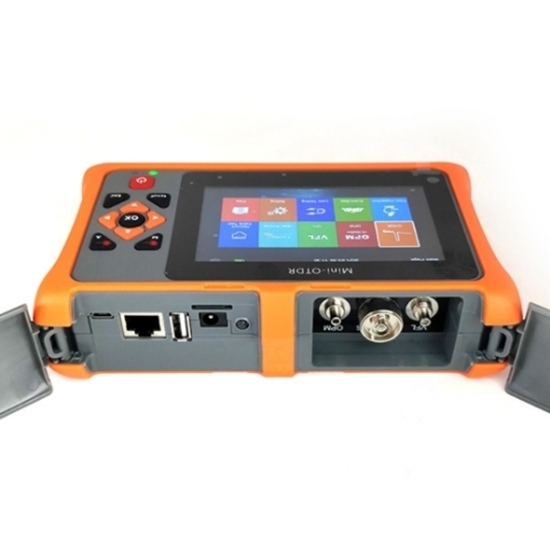

Data Interface	2xUSB（Type A x 1，Micro USB x 1, SD card
Screen	4.3-inch TFT-LCD (Standard distribution capacity touch screen)
Battery	3.7V/5200mAh
Working Temperature	-10℃~+55℃
Storage Temperature	-20℃~+80℃
Humidity	≤95%（No condensation）
Dimension	175x105x45mm
Weight	0.56kg（Contain the battery）

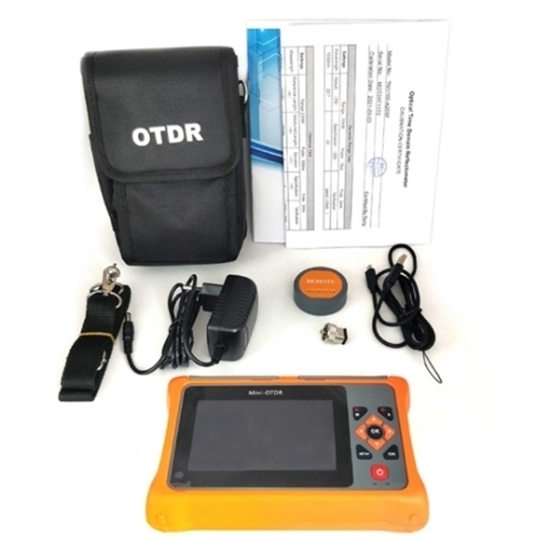

Attachment	Power adapter, lithium battery, FC adaptor, USB cable, quick guide, portable package
OPM	Type A: -10dBm~-70dBm, Type B: +26dBm~-50dBm
LS	The output power：-5dBm，Modulation frequency：CW/270Hz/1KHz/2KHz
Network Cable Test	Network Cable test

Features

Nine-in-one function (OTDR, OPM, VFL, LS, Network Cable test, Fiber Inspection, Event Map, Loss test, Flashlight).
4.3-inch full-view capacitive touch screen with multi-touch support.
International standard test data, with perfect simulation software, make your report easier.
Sink-type lamp port design, so that the optical time domain reflectometer lamp port is better protected.
Support uploading data to PC via USB port for further data analysis, processing and printing test results.

Functions

Applications

Tips: Optical field reflectometer applications

OTDR (optical time domain reflectometer) uses the backward scattered light generated when the light propagates in the fiber to obtain attenuation information, which can be used to measure fiber attenuation, splice loss, fiber fault location and understand the loss distribution along the length of the fiber, etc. OTDR tester is an essential tool in fiber optic cable construction, maintenance, and monitoring.
