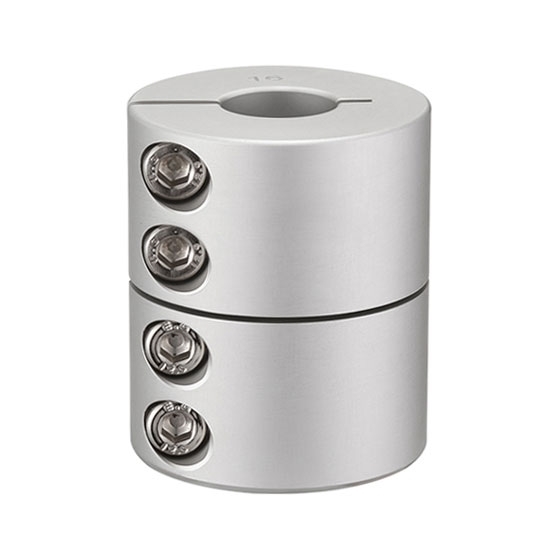

Rigid Coupling, 32 X 32mm

0 reviews • Write a review

from

$119.86

Ex Tax: $119.86

Stock: In Stock
Model: RDDLZ-SC-GNC-3232
Weight: 1.00
SKU: RDDLZ-SC-GNC-3232

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Clamping shaft coupling is made of aluminum alloy as a whole, with strong corrosion resistance, 32mm x 32mm, 8mm to 15mm, high torque, high rigidity, the eccentricity adjustment must be fully carried out when using.

Specification

Model	RDDLZ-SC-GNC-3232
Rated Torque	15 Nm
Allowable Speed	4700rpm
Moment of inertia	7.1 X 10^-6
d1/d2 Inner Diameter Size	6-6.35-7-8-9-9.525-10-12-12.7-14-15-16
Φd	32
L	32
F	7
Moment of inertia	M4
Tightening Torque	3.5 N.m
Weight	55g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

Rigid Shaft Coupling Dimension 32 x 32mm (unit: mm)

Tips: Application of rigid coupling

Rigid couplings do not have the ability to compensate for the relative deviation of the axis of the two coupled shafts, nor do they have shock absorption performance, but the structure is simple and the price is cheap. Only when the load is stable and the speed is stable, and the relative deviation of the two shafts to be coupled is extremely small, a rigid coupling can be selected.
