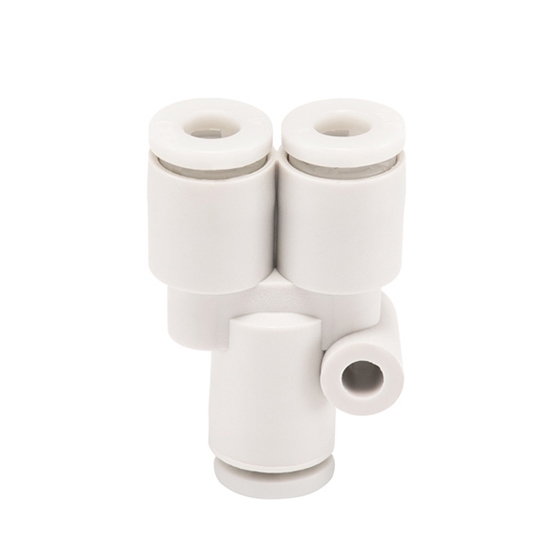

Low-cost quick connector is a water/air hose quick connector that has 03/04/06 mm input cannula diameters. Hose connects is an intubation type, used for RVs, campers, faucets, lawn sprinklers, spigots, and faucets. Strong plastic shell makes quick connect fitting more smooth and wear-resistant.

Specifications

Model	RDDLZ-KJU
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)		Model	Weight (g)
①	②	Model	Weight (g)
Ø3		RDDLZ-KJU03-00	2.6
Ø3.2		RDDLZ-KJU23-00	2.8
Ø4		RDDLZ-KJU04-00	3
Ø6		RDDLZ-KJU06-00	4.7
Ø3	Ø4	RDDLZ-KJU03-04	2.7
Ø3.2	Ø4	RDDLZ-KJU23-04	2.9
Ø4	Ø6	RDDLZ-KJU04-06	3.7

Tips: The use environment of quick connectors

Quick connectors need to consider the humidity and dust condition of the use environment, as well as the easy corrosion and other use environments to select the type of quick connectors, tube material, and sealing material. Shape and size of the installation Please determine the type and material of the quick coupling and specify the shape and size of the assembly corresponding to the characteristics of the piping. Please note that the dimensions are related to the fluid flow rate.
