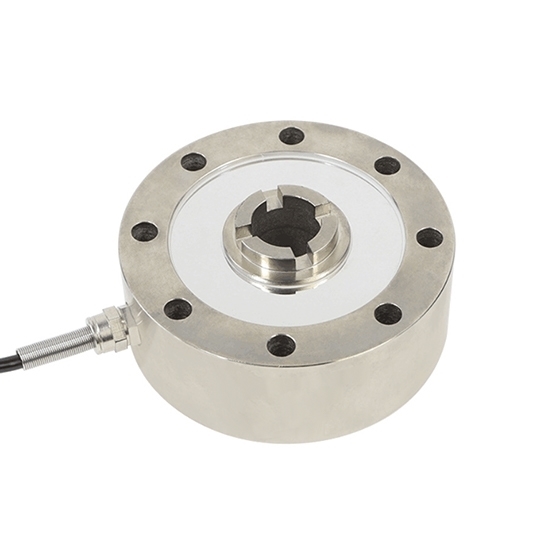

Precision Low Profile Load Cell, Spoke Type, 0-100KN

0 reviews • Write a review

from

$229.36

Ex Tax: $229.36

Stock: In Stock
Model: RDDLZ-LC-LF104
Weight: 1.00
SKU: RDDLZ-LC-LF104

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

High quality low profile spoke type load cell made of 42CrMo alloy steel, with 0-100KN capacity (optional 10/20/30/50/100KN), 10kHz response, and -20~80℃ range. Supports 120% safe and 150% ultimate overload, perfect for industrial weighing and automation.

The force measuring load cell itself outputs a mv signal, which is too small to be used directly and needs to be passed through an amplifier or an instrument before it can be used. After purchasing one precision low profile load cell, you can buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Specification

Model	RDDLZ-DYLF-104
Capacity	0-100KN (optional 10/20/30/50/100KN)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Output Sensitivity	2.0±10%mV/V
Zero Output	±1%F.S.
Non-linearity	0.03%F.S.
Hysteresis	0.03%F.S.
Repeatability	0.03%F.S.
Creep (30 minutes)	0.03%F.S.
Temperature Sensitivity Drift	0.03%F.S./10℃
Zero Temperature Drift	0.05%F.S./10℃
Frequency Response	10kHz
Material	Alloy Steel
Resistance	700/1400Ω
Insulation Resistance	≥5000MΩ/100VDC
Excitation Voltage	5-15V
Operating Temperature Range	-20~80℃
Safe Overload	120%
Ultimate Overload	150%
Cable Specification	φ5×3m
Cable Pulling Force	10kg
TEDS	Optional (Contact customer service)

Feature

High Accuracy, Stability, and Durability: Provides precise measurements with consistent performance, made from 42CrMo alloy steel for long-term reliability in harsh conditions.
Anti-Interference Capability: Ensures reliable functionality against electromagnetic and mechanical disturbances.
Wide Application Range: Ideal for crane scales, rail scales, and industrial automation systems.
Waterproof Design: Includes a six-sided waterproof connector and durable cable protection.
Bidirectional Measurement: Supports both tensile and compressive load measurements effectively.
Optional TEDS Support: Integrates with Transducer Electronic Data Sheets for enhanced functionality.
Wide Operating Temperature: Performs reliably between -20°C and 80°C for various industrial applications.

Dimension (unit: mm)

Force mode

Application

Tips: What are the advantages of the spoke-type design?

The spoke-type design offers uniform stress distribution for accurate and reliable measurements, a compact low-profile structure for space-limited installations, and robust durability to handle both tensile and compressive forces. It enhances sensitivity, minimizes fatigue, and is versatile for applications like overhead weighing, rail scales, and industrial automation, making it ideal for precision force measurement.
