Portable USB Temperature Data Logger

0 reviews • Write a review

from

$45.89

Ex Tax: $45.89

Stock: In Stock
Model: RDDLZ-TDL-U04
Weight: 1.00
SKU: RDDLZ-TDL-U04

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Multi use temperature data logger has wide measuring range, high accuracy and large data memory. It is mainly used for temp and humidity mapping during storage and transportation of vaccines, food, medicine, chemicals and other products. After recording, insert this data recorder into the USB port of PC, it will automatically generate PDF and CSV reports without any software.

Specification

Model	RDDLZ-TDL-U04
Usage Type	Multi-use
Recording Mode	Push-To-Start or Start Delay
Temperature Scale	℃ or ℉
Operating Range	-30℃ ~ 60℃
Accuracy	±0.5℃ (-20℃ ~ +40℃), ±1.0 (Other Range)
Resolution	0.1
Memory Capacity	32,000
Logging Interval	Programmable (10s ~ 18h) [Default: 10mins]
Start Delay	Programmable (0 ~ 254mins) [Default: 30mins]
Alarm Delay	Programmable (0 ~ 960mins) [Default: 10mins]
Alarm Range	Programmable high or low alarm limit [Default: <2℃ or >8℃, <40%RH or >80%RH]
Shelf Life / Battery	Typically 1 year, CR2032 3.0V Lithium Battery (Depending on sampling rate and environment)
Report Generation	Simultaneously generate PDF report and CSV file
Communication Interface	USB 2.0
Waterproof Level	IP65 (with Waterproof O-ring)
Time Zone	UTC + 0:00 (Default)

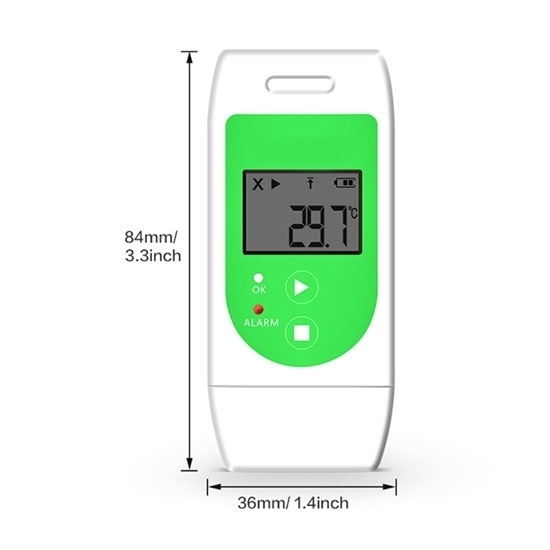

Demension	84mm * 36mm * 14mm
Net Weight	25g
