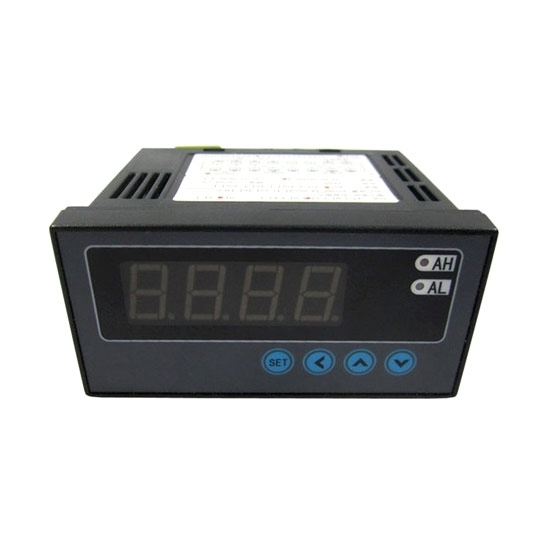

Digital Panel Meter For Displacement Sensor 4 Digit

0 reviews • Write a review

from

$174.62

Ex Tax: $174.62

Stock: In Stock
Model: RDDLZ-DPM-DS4D
Weight: 1.00
SKU: RDDLZ-DPM-DS4D

Available Options

Short Description

Output Signal

Dimension

Additional Power Supply

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Intelligent digital panel meter has adjustment and digital filtering function. The digital display controller can be used for various sensors and transmitters, such as temperature sensor, pressure sensor, flow sensor, level sensor, displacement sensor, AC/DC current sensor and transmitter with 4-20mA/0-5V/0-10V analog output, etc.

Specification:

Basics	Model	RDDLZ-DPM-DS4D-CH6
		Digital panel meter user manual
	Dimension (WHL)	D1: 16080125mm horizontal, hole size 15276mm; D2: 80160125mm vertical, hole size 76152mm; D3: 969676mm, hole size 9292mm; D4: 964882mm horizontal, hole size 9245mm; D5: 489682mm vertical, hole size 9245mm; D6: 727275mm, hole size 6868mm; D7: 4848108mm, hole size 45.5*45.5mm.
	Shipping weight	2 kg
Technical parameters	Display	-1999~9999
	Measurement accuracy	＜0.5%
	Measuring speed	10 times/second
	Display method	4 digit LED display; 4 digit LED display + setting
	Instrument power supply	100-240VAC, 50/60Hz
	Universal signal input	DC current 4-20mA, 0-20mA, 0-10mA; DC voltage 0-5V, 1-5V; RTD sensor: Pt100 (-200~+500℃), Cu100 (-50~+150℃), Cu50 (-50~+150℃), BA1 (-200~+650℃), BA2 (-200~+500℃), G53 (-50~+150℃); Thermocouple: K type (-100~+1300℃), S type (0~+1700℃), R type (0~+1700℃), B type (500~1800℃), N type (-100~+1300℃), E type (-100~+800℃), J type (-100~+1100℃), T type (-100~+400℃). *Note: DC voltage 0-10V input need to be customized and can't be a universal signal input.
	Alarm	AH and AL alarm (2-channel relay output)
	Additional power supply (optional)	P0: No power supply; P1: DC 24V±5%, ＜50mA; P2: DC 12V±5%, ＜50mA. *Note: Additional power supply can provide DC power supply for other devices such as sensors.
	Output signal (optional)	T0: No output signal; T1: Current output (4-20mA), (0-10mA), (0-20mA); T2: Voltage output (0-5V), (1-5V); T3: Voltage output (0-10V). *Note: DC voltage 0-10V output need to be customized.

Tips: How to set digital panel meter for displacement sensor?
The parameters of digital panel meter for displacement sensors generally include the upper limit of measured value, the lower limit of the measured value, the upper limit of deviation, the lower limit of deviation, the absolute value of the deviation. For example, the upper (lower) limit of measured value is used to set the maximum (minimum) measuring range of the displacement. It is used to display the displacement value delivered to the DCS control system.
