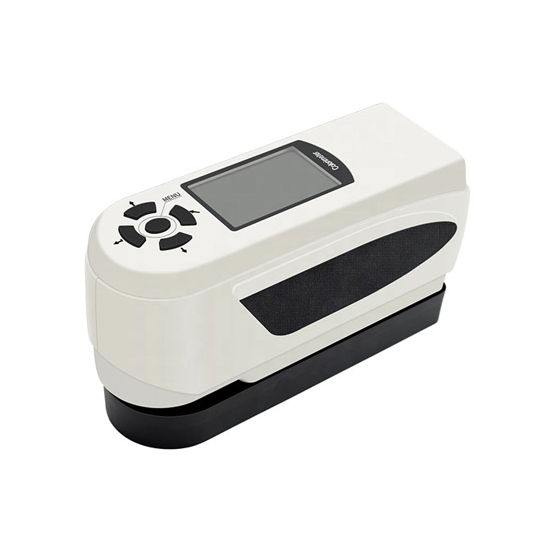

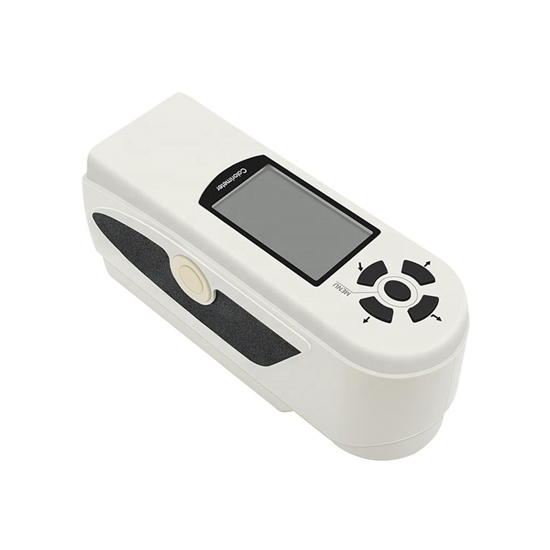

Portable Colorimeter, Caliber 8mm

0 reviews • Write a review

from

$1,138.46

Ex Tax: $1,138.46

Stock: In Stock
Model: RDDLZ-CM-NH300
Weight: 1.00
SKU: RDDLZ-CM-NH300

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap portable pocket colorimeter, LCD backlit LCD display, can clearly display date, caliber 8mm, time and measurement unit, light weight and accurate measurement.

Note: The user can perform black and white calibration through the standard black and white box of the instrument and refer to the user manual to complete the calibration independently.

Specification:

Model	RDDLZ-CM-NH300
Illuminating/Viewing Geometry	8/d
Measuring Aperture	φ8mm
Errors Between Each Equipment	≤0.40 E*ab
Repeatability	Standard deviation within E *ab 0.07, Average of 30 measurements, standard white plate
Detector	Silicon photoelectric diode
Locating	Illuminating Locating/Cross Locating
Measurement End Face	Large stable end-face and small concave-convex end-face
Color Space	CIELabCh* CIELab*
Measuring Times Before Recharging	More than 3000 times
Light Source	D65, D50 A
Light Source Device	LED blue light excitation
Weight	500g
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life	5 years, more than 1.6 million measurements
Charging Time	2 hours (first time 8 hours--100% electricity)
Connector	USB
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude<2000m
Dimension	205×70×100mm

Packing List

No.	Name	Quantity
1	Power adapter	1
2	Manual	1
3	Quality management software	1
4	Data cable	1
5	Whiteboard box	1
6	Φ8 Measuring diameter	1
7	Lithium battery	1

Details

Applications

Tips: Application of colorimeter in paper industry

Among all kinds of color measuring instruments, colorimeter is the most widely used. Compared with light color measurement instrument, while the lower precision, less light color measurement instrument, but its small volume, low price to people, is not high to the requirement of working environment, simple and easy to operate, in scientific research, teaching, textile, printing and dyeing, paper making, clothing, ceramics, metallurgy, public security, salt production, mining, geological prospecting, arts and crafts, jewelry and QianJian, commodity inspection, quality inspection and measurement has been widely used in industries such as department

Chromaticity has become an indispensable optical analysis instrument in scientific research and life activities. For example, in paper production, chromatic aberration for paper color control is particularly important. Because the materials used in papermaking involve a wide range of materials, and the bleaching and pulping process in papermaking need to go through chemical and mechanical processing, so the paper industry is particularly strict on product monitoring. In addition, the papermaking process is 24 hours continuous production, the production site environment is extremely poor, heavy humidity, vibration is very large, which is very adverse to the use of chromograph. Therefore, using LED as light source is very popular. The light source of this kind of instrument is stable for a long time.
