Pneumatic Hand Lever Valve, 5 Way, 2 Position

0 reviews • Write a review

from

$47.57

Ex Tax: $47.57

Stock: In Stock
Model: RDDLZ-VALVE-52
Weight: 1.00
SKU: RDDLZ-VALVE-52

Available Options

Short Description

Inlet & Outlet Port Size

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This hand valve cannot be used for drinking water.

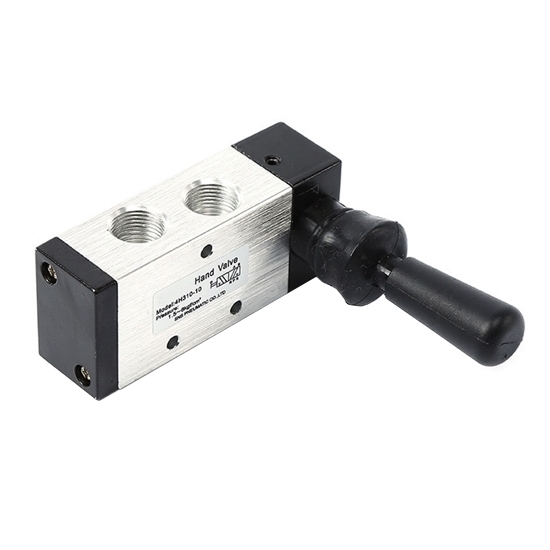

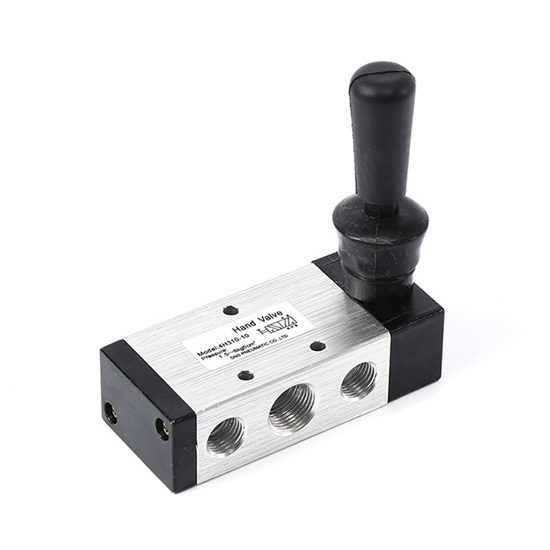

Pneumatic hand operated lever valve is used to operate air cylinders. Its manual lever can control the movement of the spool, which allowing the air to pass.

Specification

Model		RDDLZ-4H210-08	RDDLZ-4H310-10	RDDLZ-4H410-15
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		5/2 Port (5 Way, 2 Position)
Effective Sectional Area		16.0mm2 (Cv=0.89)	30.0mm2 (Cv=1.67)	50.0mm2 (Cv=2.79)
Port Size		Inlet = Outlet = G1/4 Exhaust Port = G1/8	Inlet = Outlet = G3/8 Exhaust Port = G1/4	Inlet = Outlet = Exhaust Port = G1/2
Lubrication		No Need
Working Pressure		0 ~ 0.8MPa
Proof Pressure		1.0MPa
Working Temperature		0 ~ 60℃
Material	Body	Aluminum Alloy
	Seal	NBR

Wiring Diagram

Dimensions (Unit: mm)

Model	ΦD	A	B	C	E	F	J	R1	R2	R3
RDDLZ-4H210-08	4	35	76..3	22	94.5	21	21	G1/4	G1/8	G1/4
RDDLZ-4H310-10	4	40	92	27	100	28	28	G3/8	G1/4	G3/8
RDDLZ-4H410-15	5.5	50	124	34	105	28.2	34.6	G1/2	G1/2	G1/2

Tips: Different types of valves

Automatic valve: This valve does not need external force to drive, but relies on the energy of the medium itself to make the valve action valve. Such as safety valve, pressure reducing valve, check valve, automatic control valve.
Power drive valve: Power drive valve can use a variety of power sources to drive.
Electric valve: Valve driven by electricity.
Pneumatic valve: valve driven by compressed air.
Hydraulic valve: Valve driven by the pressure of a liquid such as oil.
Hand valve: this hand valve can be set between the hand wheel and the valve stem. If necessary, universal joints and drive shafts can also be used for remote operation.
