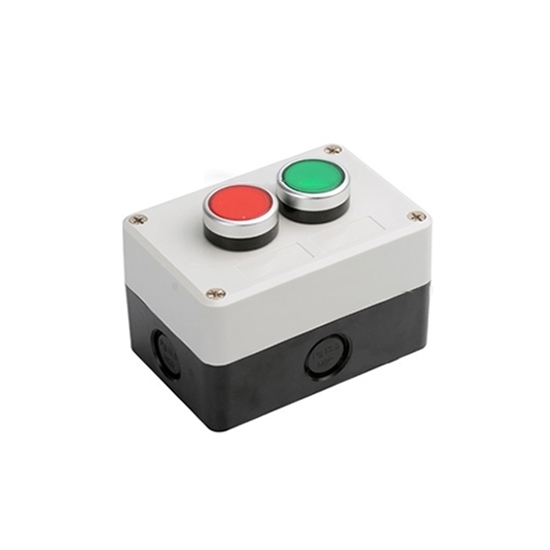

Plastic Push Button Switch, 1 NC+1 NO, 10 A

0 reviews • Write a review

from

$40.55

Ex Tax: $40.55

Stock: In Stock
Model: RDDLZ-PB-10A
Weight: 1.00
SKU: RDDLZ-PB-10A

Available Options

Button type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The push button control switch has a simple structure of 1NC+1NO contact form, sensitive response and long service life. The push button switch box is widely used in electrical automatic control circuits. And mainly used to manually send control signals to control contactors, relays, electromagnetic starters, etc.

1 NC+1 NO Plastic Push Button Switch Specifications:

Model	RDDLZ-KL-B205	RDDLZ-KL-B207	RDDLZ-KL-B203

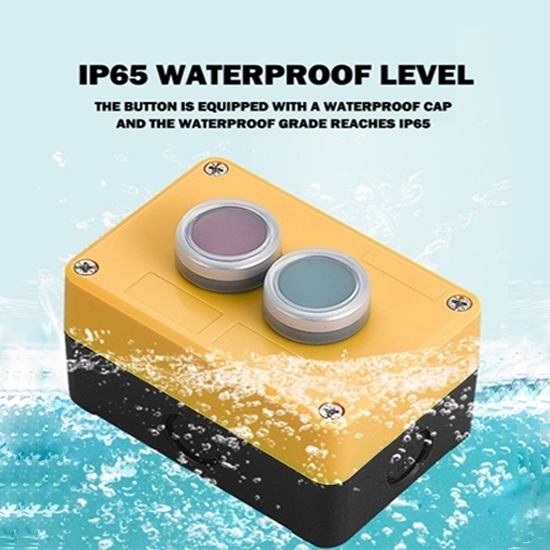

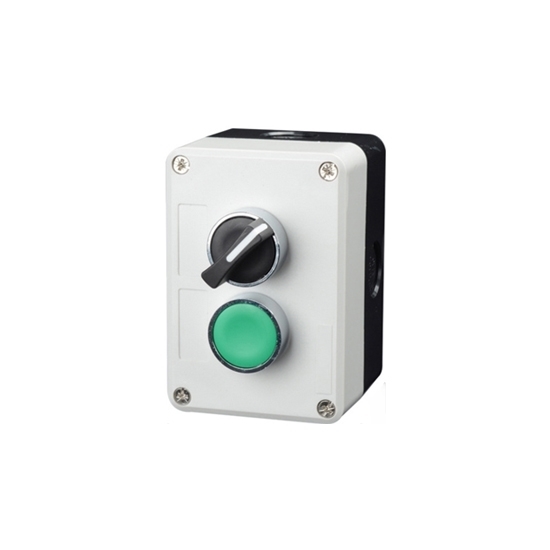

Item	1 NO+1 NC button (non water-proof)	1 NO+1 NC button (water-proof)	1 NO+1 NC button (with selectable switch)
Contact form	1 NO+1 NC
Button type (standard)	Self-reset type
Material	ABS plastic
Temperature	-40℃-+80℃
Protection level	IP65
knock off hole	Yes
Cover and base connect	Yes
Color of the button box	Yellow or grey
Max.voltage	220V
Max.current	10A

Structure and Dimension (Unit=mm)

1 NO+1 NC button (non water-proof)

Push button switch details

Tips: selection principle of push button switch:

① Select the form of the card tube according to the purpose, such as emergency type, key type, instruction type, etc.
② The type of push button switch can be selected according to the use environment, such as open type, waterproof type, anti-corrosion type, etc.
③ The color of the push button switch box can be selected according to the requirements of working status and working conditions.
