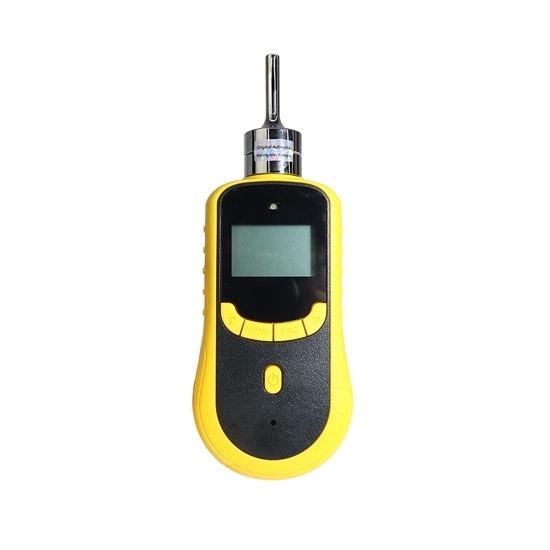

Portable Hydrogen (H2) Gas Detector, 0 To 500/1000/2000 Ppm

0 reviews • Write a review

from

$784.62

Ex Tax: $784.62

Stock: In Stock
Model: GD200-H2
Weight: 1.00
SKU: GD200-H2

Available Options

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

LCD dot matrix display, direct readout of gas type, unit, concentration, local time, etc.
Support English/Chinese operation, easy to shift.
Gas concentration unit PPM and mg/m³can be shift quickly.
Built-in micro-sampling pump, 10 grades of suction are available.
Explosion-proof certification

Gas Detector Functions

With self-calibration and zero calibration functions, makes the detection more accurate and reliable.
One key to restore factory setting, free from maloperation.
With temperature and pressure compensation, able to realize the compensation for the gas concentration under different temperature and pressure environments.
Two-stage alarm with sound and light, and alarm point is settable.
Rechargeable lithiumpolymer battery with large capacity.
High-strength special engineering plastic housing, with anti-slip, waterproof, dustproof and explosion-proof.

Specification

Model	GD200-H2
Sampling Method	Pump type, flow rate can be up to 750ml/min
Detection Principle	Electrochemistry
Range (Optional)*	0 to 10 ppm, 0 to 20ppm, 0 to 100ppm, 0 to 500ppm, 0 to 1000ppm, 0 to 2000ppm, 0 to 3000ppm, 0 to 5000ppm, 0 to 10000ppm, 0 to 20000ppm, 0 to 40000ppm, 0 to 4% VOL
Resolution	0.001ppm (0-10/20ppm), 0.01ppm (0-100ppm), 0.1ppm (0-500ppm), 1ppm (0-1000/2000/5000/10000/20000/40000ppm) or 0.001% VOL (0-4% VOL)
Accuracy	≤±3% F.S.
Response Time	≤10s
Repeatability	≤±1%
Recovery Time	≤10s
Linearity Error	≤±1%
Zero Shift	≤±1% (F.S./year)
Data Logging (Optional Function)	High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.)
Alarms	Sound, light and vibration
Display	LCD dot matrix display
Language	Chinese/English
Battery	3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug)
Operating Time	100h (Pump off)
Communication	Mini USB interface supports standard MODBUS communication protocol
Explosion-proof Grade	Ⅱ 2G Ex ia Ⅱ CT4 Ga
Case Material	ABS+PC
Protection Grade	IP66
Certification	CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Operating Temperature	-20℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Operating Pressure	0.8~1.2bar
Dimension	2057532mm
Weight	300g
Warranty	12 months
Extension Probe	About 480mm (Total Length), About 300mm (Probe Head)

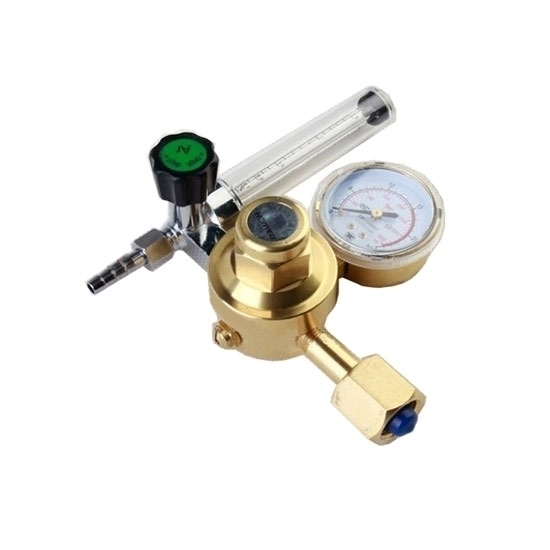

Accessories (Optional)	Calibration kit - gas pressure regulator (calibration gas cylinder NOT included) Body Material: Brass Max. Input Pressure: ≤15MPa Max. Output Pressure: 0.25MPa Flowmeter Range: 0.1-1.5 L/min Mounting Connection: Inlet port: W21.8-14; Outlet port: Ф6 flexible tube

Note:

* If you need a H2 gas detector with other measuring ranges unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.
* We also provide other common gas detectors, and you can refer to RDDLZ Gas Detector Catalog to get the specific gas type and measurement range. If you have any questions, please feel free to contact us.

*** Other Common Gases and Ranges Available for Portable Gas Detectors

Gas Type	Measure Range	Resolution
Ammonia (NH3)	0-10/20/50/100/200/500/1000/2000/5000ppm	0.01ppm/0.1ppm/1ppm
Benzene (C6H6)	0-1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Carbon Dioxide (CO2)	0-1000/2000/5000/10000/20000/50000ppm, 0-10%/20%/30%/50%/100% VOL	1ppm, 0.01% VOL
Carbon Monoxide (CO)	0-10/20/50/100/500/1000/2000ppm	0.001ppm/0.01ppm/1ppm
Chlorine (Cl2)	0-5/10/20/50/100/200ppm	0.001ppm/0.01ppm/0.1ppm
Chlorine Dioxide (ClO2)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Ethylene (C2H4)	0-10/20/50/100/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Flammable	0-100% LEL	1% LEL
Formaldehyde (CH2O)	0-10/20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Hydrocarbons (HC)	0-100% LEL	1% LEL
Hydrogen (H2)	0-10/20/100/500/1000/2000/3000/5000/10000/20000/40000ppm, 0-4% VOL	0.001ppm/0.01ppm/0.1ppm/1ppm, 0.001% VOL
Hydrogen Chloride (HCl)	0-10/20/50/100/200/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Hydrogen Cyanide (HCN)	0-10/20/50/100ppm	0.01ppm/0.1ppm
Hydrogen Fluoride (HF)	0-1/5/10/50ppm	0.001ppm/0.01ppm
Hydrogen Sulfide (H2S)	0-5/10/20/50/100/200/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Methane (CH4)	0-100% LEL, 0-50%/100% VOL	1% LEL, 0.01%VOL
Methyl Bromide (CH3Br)	0-50/100/200/500/1000/2000/3000ppm	0.1ppm/1ppm
Nitric Oxide (NO)	0-20/50/100/250/500/1000ppm	0.01ppm/0.1ppm/1ppm
Nitrogen (N2)	0-99.99%/100% VOL	0.01% VOL
Nitrogen Dioxide (NO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Oxygen (O2)	0-25%/30%/100% VOL	0.01% VOL
Ozone (O3)	0-1/5/10/20/50/100/200/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Phosgene (COCl2)	0-1/5/10ppm	0.001ppm
Phosphine (PH3)	0-10/20/50/100/500/1000/2000/3000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Dioxide (SO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Hexafluoride (SF6)	0-1000/2000/3000ppm	1ppm
Volatile Organic Compounds (VOC)	0-1/5/10/20/100ppm	0.01ppm/0.1ppm

Details

Applications

Portable hydrogen gas leak detector with alarming is suitable to monitor the concentration of H₂ in the chemical workshop, hydrogen bottle tank storage area, new energy reaserch and development, laboratory, automobile industry, glass industry, fuel cell industry, battery room and so on.

Tips: Case Study - Portable Hydrogen (H2) Gas Detector for Fuel Cell Company

A new energy company has been engaged in research and development, testing and production of various fuel cells for many years. The company has many hydrogen pipelines for the hydrogen (H2) is the main power source in the production process. To prevent the substandard process from the leakage of the hydrogen, the engineer made an inquiry about detecting the leakage of hydrogen to us.

They needed a portable hydrogen detector to detect H2 leaks at the ports of each pipeline, record the detection value in real time and save a set of data every 2s recording interval. Furthermore, they also required transmitting the data to computer for the analysis.

After the communication with the engineers based on their requirements, we recommended them a portable hydrogen (H2) gas detector RDDLZ-GAS-H2, with measuring range of 0-1000ppm and resolution of 1ppm and also with data transmission and storage function.

After using this H2 gas detector for a period of time, they were very satisfied with the detection results. The hydrogen gas detector not only is accurate in detection, fast in response time, but also real-time records the detecting value and save the data.
