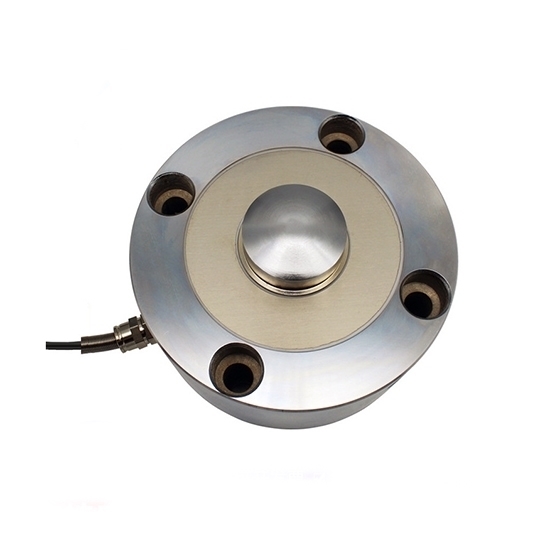

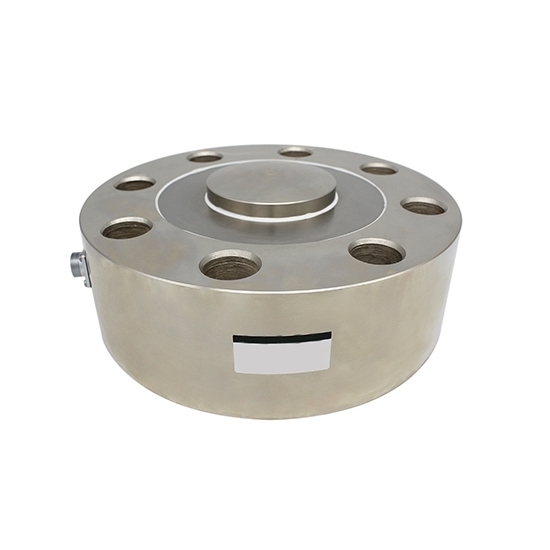

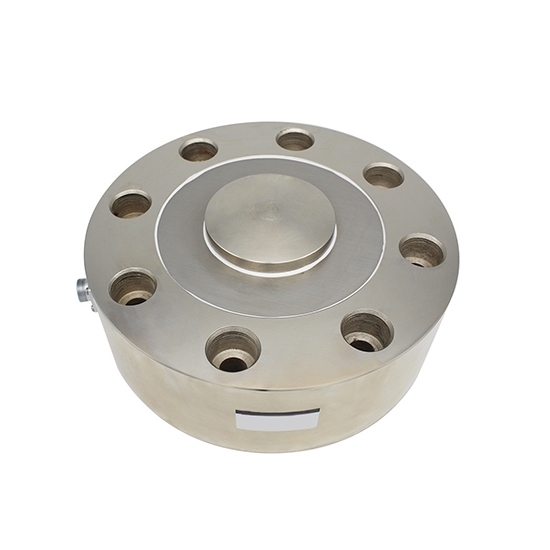

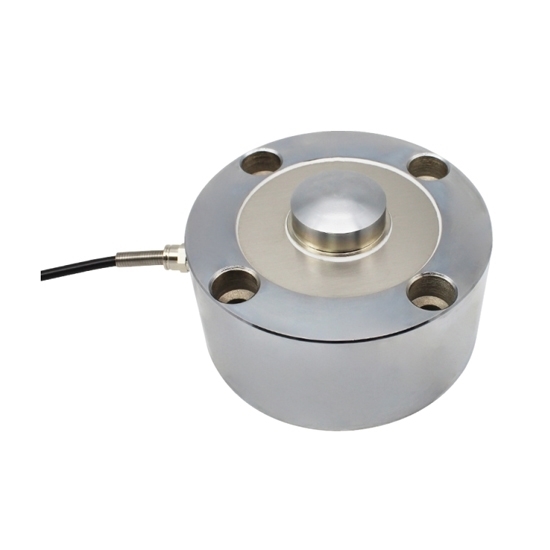

Pancake Load Cell For Silo/Tank Weighing, 50 Ton/ 200 Ton To 500 Ton

0 reviews • Write a review

from

$576.35

Ex Tax: $576.35

Stock: In Stock
Model: RDDLZ-LC-105
Weight: 1.00
SKU: RDDLZ-LC-105

Available Options

Capacity

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell sensor, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Buying this high-capacity pancake load cell for silo and tank weighing results in precision weighing. With a zero output of ±1% F·S and a hysteresis error of 0.05% F·S. Available in 50 ton, 80 ton, 100 ton, 200 ton, 300 ton, and 500 ton capacities, it supports a wide range of display controllers and load cell transmitters to ensure you get the accurate weighing data.

Specification

Model	RDDLZ-DYLF-105
Capacity	50 ton/80 ton/100 ton/200 ton/300ton/500 ton (optional)

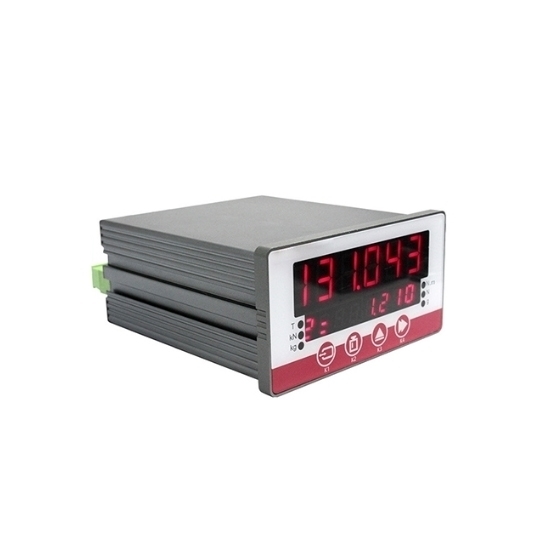

Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Output Sensitivity	2.0±0.05% mV/V
Zero Output	±1% F·S
Nonlinear Error	0.05% F·S
Hysteresis	0.05% F·S
Repeatability	0.05% F·S
Creep	0.05% F·S (30 min)
Sensitivity Temperature Coefficient	0.05% F·S/10°C
Zero Temperature Coefficient	0.05% F·S/10°C
Response Frequency	1kHz
Material	Alloy steel
Input Resistance	750±20Ω
Output Resistance	700±5Ω
Insulation Resistance	≥5000 MΩ/100 VDC
Operating Voltage	5-15V
Operating Temperature Range	-20°C to 80°C
Safety Overload	150%
Limit Load	200%
Ultimate Cable Pulling Force	10kg
Cable Specification	φ5*5m

Feature

42CrMo Alloy Steel: High strength and hardness for durability and wear resistance.
Excellent Resistance: Resists wear, high temperatures, and abrasive damage for tough environments.
High Accuracy: Provides stable and precise measurements with strong structural strength.
Waterproof 6-Point Connector: Prevents cable damage and ensures stable signal transmission.
Wide Application: Suitable for various industrial force measurement and testing systems.

Dimension (unit: mm)

Capacity	ΦA	ΦB	ΦC	SR	H	H1	H2	ΦD	ΦD1
50T	148	124	45	50	88	70	15	4-Φ20	4-Φ13
80T	178	145	55	100	85	65	15	8-Φ20	8-Φ13
100T	208	176	60	100	95	75	20	8-Φ20	8-Φ13
200-300T	260	200	90	200	100	85	22	8-Φ27	8-Φ17
＞300T~500T	360	300	190	350	130	110	30	16-Φ40	16-Φ25

Load Cell Force Diagram

Application

Tips: Pancake load cell basics

The pancake load cell is a common force transducer widely used in the fields of weighing and force measurement. Named for its flat, circular structure that resembles a pancake, the pancake load cell is highly accurate, stable, and resistant to bias loads, and is capable of effectively measuring longitudinal pressure or weight. The principle of operation is usually to sense the small changes in the force applied to the structure by strain gauges, thus outputting an electrical signal proportional to the applied force.

Pancake load cell sensors are commonly used in scenarios where high precision force measurement is required due to their unique design and high performance. The main application areas include industrial weighing, material testing, liquid tank weighing, bridge load testing, and laboratory precision measuring equipment.
