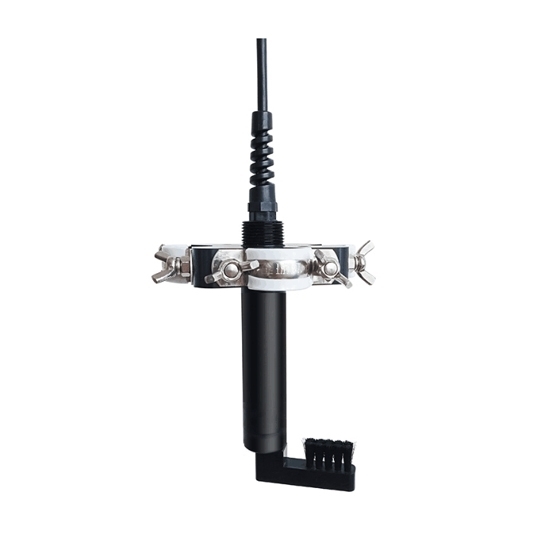

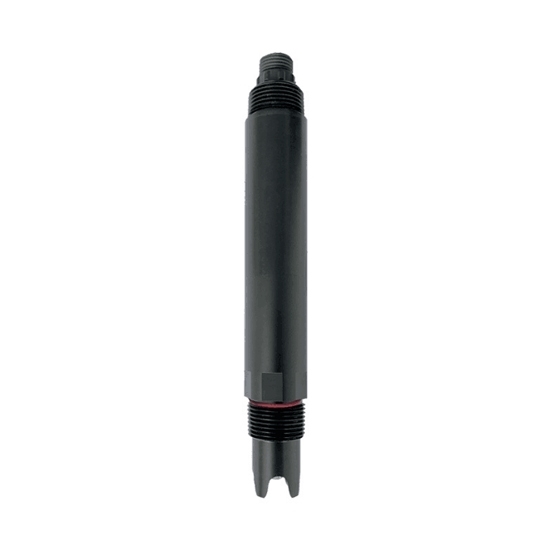

ORP Sensor For Water Quality, -1500~+1500mV

0 reviews • Write a review

from

$650.79

Ex Tax: $650.79

Stock: In Stock
Model: RDDLZ-WQS-ORP
Weight: 1.00
SKU: RDDLZ-WQS-ORP

Available Options

Short Description

Output Signal

Self-cleaning

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

ORP sensor for water quality, measures -1500 to +1500mV with 1mV resolution and ±6mV accuracy. Durable, IP68-rated, with RS-485/4-20mA output and a 5m cable. Ideal for water treatment, agriculture, and marine applications.

Specification

Model	RDDLZ-ORP-406A
Measurement Principle	Electrochemical Method
Measurement Range	-1500~+1500mV
Resolution	1mV
Accuracy	±6mV
Operating Conditions	0~65°C, <0.1MPa
Power Supply	12~24VDC
Housing Material	POM
Output Signal	RS485/4-20mA (optional)
Installation Method	Immersion Installation
Cable Length	5 meters (customizable)
Power Consumption	0.2W @12V
Calibration Method	Single-Point Calibration
Protection Rating	IP68

Feature

ORP Electrode: Ensures accurate and reliable measurement of oxidation-reduction potential.
High-Resistance Differential Amplifier: Provides strong anti-interference capabilities, making it suitable for complex environments.
Stable Reference System: Features a long electrode lifespan and consistent performance over time.
Sealed Waterproof Connector: Maintains uninterrupted signal transmission, even in harsh environments.
Standard Thread Design: Precision-machined threads for safer and more secure installation.
Durable POM Housing: Resistant to corrosion and contamination, easy to clean, and built for long-term use.
High Sensitivity and Precision: Delivers highly accurate measurements with stable and reliable performance.
RS-485 Interface with Modbus/RTU Protocol: Supports seamless communication and integration with monitoring systems.

Dimension (Unit: mm)

Application

Can be applied to environmental protection and water conservancy surface water environment monitoring, underground pipeline network water environment monitoring, water supply and sewage water online monitoring, modern agriculture water quality analysis applications, industrial automation online water quality monitoring marine environment and ship three-dimensional monitoring.

Tips: Can the sensor be used in portable systems?

Yes, the sensor's compact design and lightweight construction make it suitable for portable water quality monitoring systems. Its robust housing and waterproof design ensure durability during transport and use in fieldwork, making it an excellent choice for environmental researchers and technicians.
