Network/Ethernet Cable Tracer, RJ45, RJ11

0 reviews • Write a review

from

$184.96

Ex Tax: $184.96

Stock: In Stock
Model: RDDLZ-NCT-683
Weight: 1.00
SKU: RDDLZ-NCT-683

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

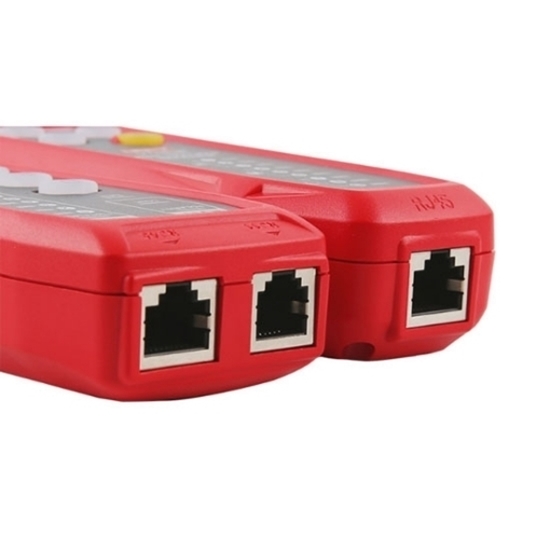

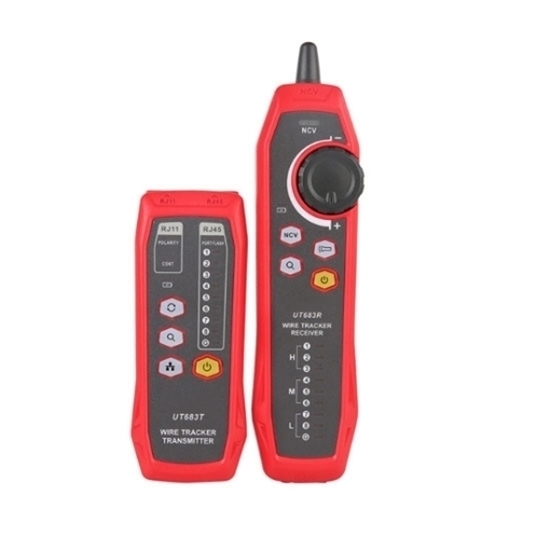

The low cost network cable tracer has an RJ45 connector for ethernet cables and an RJ11 connector for telephone line testing. The receiver offers a range of up to 3000m on the RJ11 port and up to 100m on the RJ45 port.

Specification

Model	RDDLZ-UT683
Transmitter	Port Blinking	Pinpointing the cable on the switch based on the blinking frequency	Frequency 0.3Hz
	Line finding Function	Signal strength greater than 3V Peak-Peak load 600 ohms.Signal frequency: 125KHz	Oscilloscope measurement
	Line Matching Function	Line sequence test	9 green LEDs, indicating line length 300
		Line sequence test with fast and slow speeds (fast: 2 Hz, slow: 1 Hz)	√
		Network cable: shielded/unshielded indication	√
	Conductivity Testing	10kΩ	√
	Polarity Testing	Test range: DC: +5V-+70V or -70V~-5V	√
	Ringing Test		√
	Low Power Alert	≤ 3.4V (power yellow light flashes at 1Hz when low), < 3.0V forced shutdown	√
	Input Protection	60VDC	DC protection
	Operating Current	Line pair current 30mA, line seek plus port flashing max 100mA	Continuous operating time > 8 hours
	Auto Shut-Off	Automatic shutdown after 60 minutes of no signal detection	3.7V supply
	Power Supply Battery	1050mAh rechargeable lithium battery, 500mA charging current

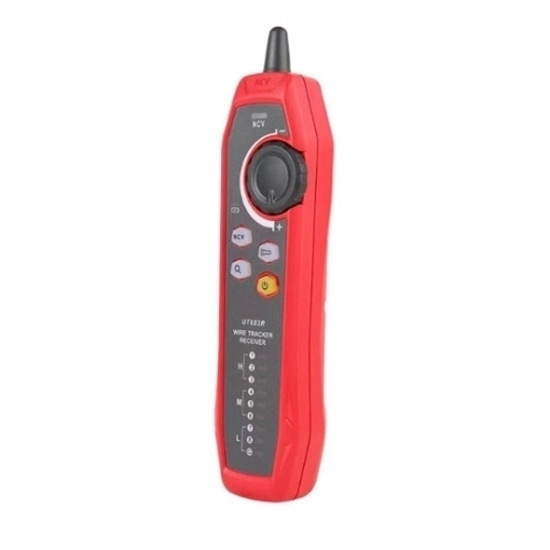

Receiver	Line Finding function	RJ11 port tracing distance ≥3000m, RJ45 port tracing distance ≥100m	H-rank 90dB, M-rank 80dB, L-rank 70dB
	NCV Function	Measurement voltage range 40-1000VAC, LED, speaker indication
	Torch	10cm illumination > 200Lux	Torch can be switched on or off individually
	Headphone Jack	3.5mm headphone jack	Speaker disconnects automatically when headphones are inserted
	Input Impedance	≥100MΩ	Cord finding and NCV are inductive
	Low Battery Alert	≤ 3.3V, ≤ 3.0V forced shutdown	√
	Working Current	Only open torch current 25mA, 200mA when seeking line maximum volume	Continuous working time > 5 hours
	Automatic Switch-Off	Automatic shutdown after 10 minutes without detecting a signal
	Power Supply Battery	1050mAh rechargeable lithium battery with 500mA charging current	3.7V supply
Usage Environment	Operating Temperature		-10°C to 50°C
	Storage Temperature		-20°C to 60°C
	Operating Humidity		20~75% RH (N.C)
	Storage Humidity		10~90% RH (N.C)
	Altitude		≤2000m
Certification	CE, RoHs		√

Features

Receiver RJ45 interface for short-circuit/break/sequence detection of network cables.
Transmitter RJ45 interface for line finding/pair detection of network cables.
The transmitter RJ11 interface is used to detect the working status of the telephone, the positive and negative level, and the metal wire seeking interface.
The ethernet cable tracer has a Micro USB interface and is equipped with a 3.7V 1050mAh rechargeable battery and USB charging function, which effectively extends the life of the product and the battery, and is environmentally friendly and reliable.
The headset can be used in noisy environments to avoid external interference.

Dimension (Unit: mm)

Details

Applications

The network cable tester is an essential tool used in the field of network and data communication systems. It is primarily used to test the continuity, connectivity, and performance of network cables and wiring. A network cable tester is commonly used in different industries, including IT, telecommunications, security systems, and home automation.
Tips: How to interpret the results of a network cable test?

Check the continuity of the cable: If the continuity test is passed, it means that there is a complete and unbroken connection between the two ends of the cable. If the test is failed, it means that there is a break or short circuit somewhere in the cable.
Verify the cable length: The cable length test will indicate the actual length of the cable. This is important as it will help identify any problems with the cable's quality or performance. If the measured length is different from the actual length of the cable, it may indicate that the cable is damaged or has a high resistance.
Check for signal loss: The cable signal loss test measures the amount of signal loss that occurs when transmitting data over the cable. If the test shows a high amount of signal loss, it may indicate that the cable is of poor quality or has been damaged.
Verify the cable type: The cable type test will identify the type of cable that has been tested. This is important as different types of cables have different properties and may require different testing procedures.
