Nema 34 Stepper Motor, 2 Phase, 5A, 12N·m

0 reviews • Write a review

from

$220.94

Ex Tax: $220.94

Stock: In Stock
Model: RDDLZ-STEP-34C500
Weight: 1.00
SKU: RDDLZ-STEP-34C500

Available Options

Input Pulse Voltage

With Matched Driver

Shaft Diameter

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

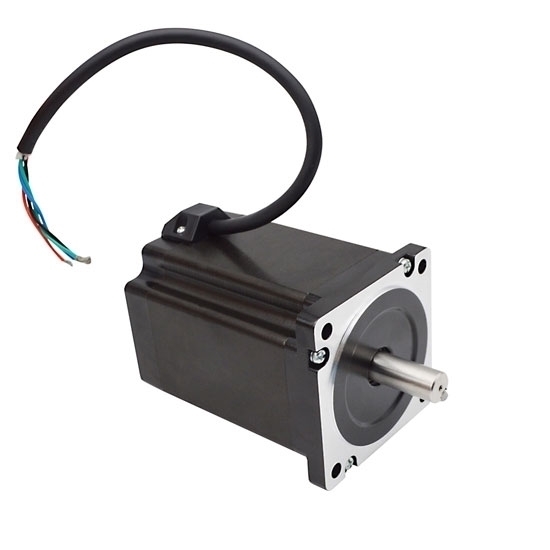

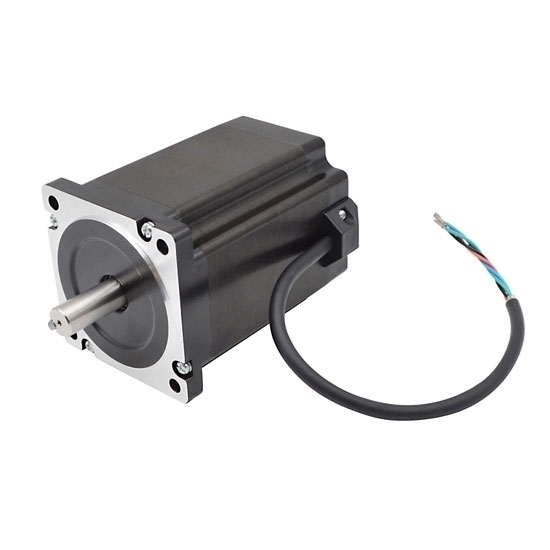

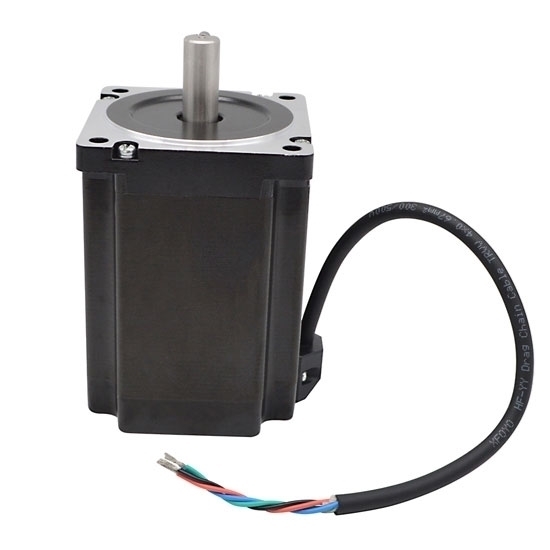

Nema 34 hybrid stepper motor has 4 wire and can be used in bipolar mode. It with high holding torque of 12 N·m is suitable for the biggest projects, such as CNC application, robotic, 3D technology and so on.

Physical Specification

Model Number: RDDLZ-FY86EC500A
Matched the Driver Model: RDDLZ-FYDM808T
Flanged Size: 86 x 86mm (Nema 34)
Motor Length: 150mm
Shaft Diameter: 14mm/ 12.7mm
Number of Leads: 4 wire
Weight: 5.2kg

Electrical Specification

Motor Type: Bipolar Stepper
Step Angle: 1.8°
Rated Current: 5A
Holding Torque: 1200 N·cm (12 N·m, 1700 Oz.in)
Phase Resistance: 1.2Ω
Phase Inductance: 6mH
Rotor Inertia: 6200g·cm²

Dimensions (Unit: mm)

L=150mm

Wiring Diagram

Speed-Torque Curve Diagram

Details

Tips: The wiring method of stepper motor

There are many ways to connect permanent magnet stepper motors, mainly four wire lead and six wire lead. The difference between the two mainly lies in the flexibility of connection with the driver. 2 phase 3 wire motors can only use bipolar drivers, 2 phase 6 wire motors can use either bipolar drivers or unipolar drivers.
