Mini Fanless Industrial PC, Celeron J3160, Linux/Win 7

0 reviews • Write a review

from

$412.62

Ex Tax: $412.62

Stock: In Stock
Model: RDDLZ-IPC-J3160LW
Weight: 1.00
SKU: RDDLZ-IPC-J3160LW

Available Options

Usable System

RAM/ Hard Disk Capacity

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

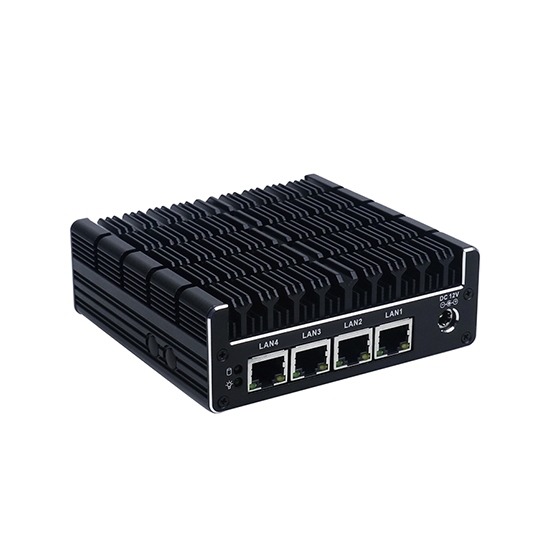

Fanless industrial PC provided by excellent manufacturer, mini size for embedded installing. CPU Intel Celeron J3160 quad core quad threading, system supports Linux/Windows 7/Windows 10, standard interface 4*Intel 1000M LAN, 1*RJ45 COM. Industrial grade computer can be used in business office, HD video, playback, home learning, router, network security, medical, etc.

Specification

Model	RDDLZ-NUC-C3 4L
CPU	Intel Celeron J3160 (Quad core quad threading, 1.6 GHz, Max turbo 2.24 GHz)
Usable System	Linux, Windows 7, Windows 10
RAM	1*DDR3L 1600MHz SODIMM RAM Slot, Max. 8GB
Display Chip	Integrated Intel HD Graphics
Display Port	2*HDMI (Support synchronous/asynchronous dual display)

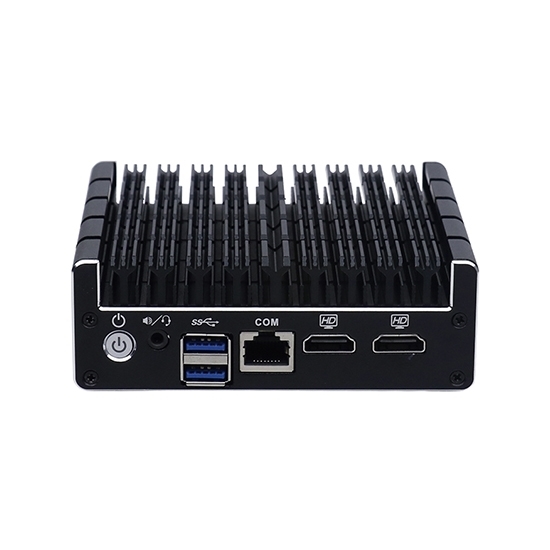

Front I/O Interface	1*Power Switch
	1*Audio (Support Mic and Speaker at the same time)
	1*RJ45 COM (Support Console Function)
	2*HDMI
	2*USB 3.0

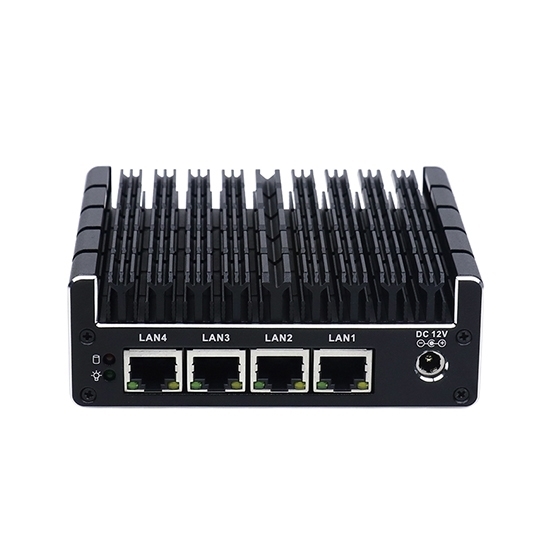

Rear I/O Interface	4*RJ45 LAN
Rear I/O Interface	1*DC Input
Expansion Slot	1MINI PCIE Slot (Support USB Channel WIFI) 1MINI PCIE Slot (Support MSATA)
Network	4*Intel i210-AT 1000M LAN
Storage	1*MSATA Slot
Input Voltage	DC 12V
Other Function	Auto power on when there is electricity, timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these functions)
Working Temperature	0 ~ +50℃ (Commercial HDD), -20℃ ~ +50℃ (Industrial SSD), Surface air flow
Working Humidity	5%~95% non-condensing
Certification	CE, CCC, FCC Class A, ROHS
Color	Black (Color can be customized)
Material	High-quality all aluminum, surface anodic oxidation
Dimension	115 * 107.5 * 39mm
Net Weight	0.5 kg

Mini Fanless Industrial PC Dimensions Diagram (Unit: mm)

Accessories List

Name	Quantity	Specification
Power Adapter	1	DC 12V, 4A
Power Cord	1	Any Plug Optional (US, EU, UK etc.)
VESA Bracket	1	Standard

Tips: Mini fanless industrial PC advantages.

Mini fanless industrial PC adopts all-metal industrial shell that meets EIA standards, which enhances the ability to resist electromagnetic interference.
There is no fan in mini fanless industrial PC case, and heat dissipation by the case greatly reduces the maintenance requirements of the system.
The mini fanless industrial PC is equipped with a highly reliable industrial power supply and has overvoltage and overcurrent protection.
Mini fanless industrial PC has a self-diagnostic function.
Mini fanless industrial PC has a watchdog timer, which can be automatically reset in the event of a failure.
Mini fanless industrial PC is convenient for multi-task scheduling and operation.
Mini fanless industrial PC is compact in structure, small in size and light in weight, so it can save working space.
