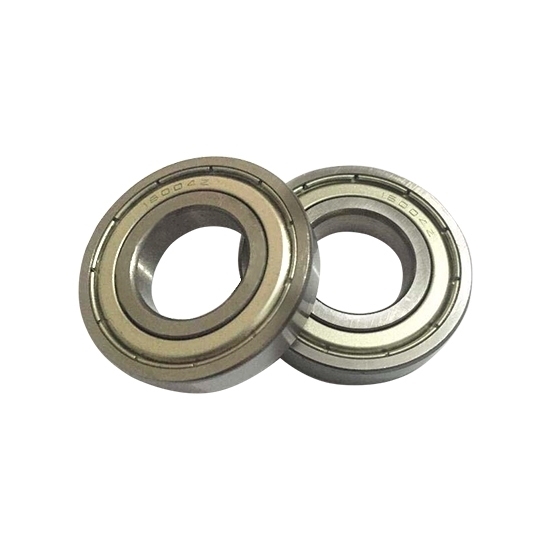

Cheap price 6004 axial deep groove ball bearing with an inner diameter of 20mm is made of high-quality bearing steel material. The deep groove bearing is usually used for some small and medium-sized machinery, such as power tools, pneumatic tools, telecommunication equipment, etc.

Specification

• Model: RDDLZ-6004
• Inner Diameter: 20mm
• Outer Diameter: 42mm
• Width: 12mm
• Bearing Material: Bearing steel

Dimension (Unit : mm)

Application

Deep groove ball bearings are widely used for various fields, for instance, can be used in gearboxes, instruments, motors, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, engineering machinery, roller skates and so on.

Tips: Can deep groove ball bearing take axial load?

Deep groove ball bearings are primarily designed to handle radial loads that act perpendicular to the shaft. However, they do have some limited ability to handle axial loads that act parallel to the shaft.

The axial load capacity of deep groove bearings is relatively low compared to their radial load capacity. The ability to handle axial loads depends on factors such as the bearing size, design, and internal clearance. In applications where the axial load is relatively small or intermittent, ball bearing single row deep grooves can often tolerate it without significant issues.

But, if the axial load is significant or continuous, it is generally recommended to use a thrust bearing or a bearing specifically designed for axial loads, such as angular contact ball bearings or tapered roller thrust bearings. These types of bearings are better suited to handle higher axial loads and provide more reliable performance in such applications.
