Mini Electric Wire Rope Hoist, 100kg/200kg/500kg/1000kg

0 reviews • Write a review

from

$348.69

Ex Tax: $348.69

Stock: In Stock
Model: RDDLZ-MEH-1000KG
Weight: 1.00
SKU: RDDLZ-MEH-1000KG

Available Options

Short Description

Load Capacity

Wire Rope Length

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

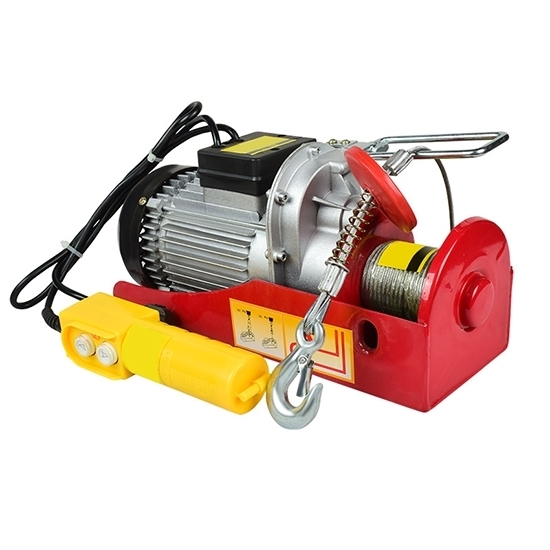

Mini electric wire rope hoist with 100kg to 1000kg load capacity features a robust wire rope for secure lifting, powered by an electric motor, which is used for tasks that require frequent lifting with minimal effort. This electric cable hoist is often used in workshops, garages, small construction sites, and manufacturing units.

Specification

Model	RDDLZ-PA200	RDDLZ-PA300	RDDLZ-PA400	RDDLZ-PA500	RDDLZ-PA600	RDDLZ-PA800	RDDLZ-PA1000	RDDLZ-PA1200
Power	510W	650W	850W	1050W	1200W	1450W	1800W	2400W
Rated Load Capacity (Optional)	Single Hook: 100kg (0.1 ton)	Single Hook: 150kg (0.15 ton)	Single Hook: 200kg (0.2 ton)	Single Hook: 250kg (0.25 ton)	Single Hook: 300kg (0.3 ton)	Single Hook: 400kg (0.4 ton)	Single Hook: 500kg (0.5 ton)	Single Hook: 600kg (0.6 ton)
Rated Load Capacity (Optional)	Double Hook: 200kg (0.2 ton)	Double Hook: 300kg (0.3 ton)	Double Hook: 400kg (0.4 ton)	Double Hook: 500kg (0.5 ton)	Double Hook: 600kg (0.6 ton)	Double Hook: 800kg (0.8 ton)	Double Hook: 1000kg (1 ton)	Double Hook: 1200kg (1.2 ton)
Voltage	220V
Wire Rope Length (Optional)	12m/20m/30m
Wire Rope Diameter	3mm	3mm	4mm	4mm	4mm	5mm	6mm	6mm
Wire Control Handle Cable	3m
Lifting Height	Single Hook: 12m
Lifting Height	Double Hook: 6m
Lifting Speed	Single Hook: 12m/min
Lifting Speed	Double Hook: 6m/min
Recommended Floor	1-4 Floors
Recommended Lifting	Daily Necessities			Home Decoration		Building Decoration

Details

Applications

Tips: Mini electric wire rope hoist applications

Mini electric wire rope hoists are versatile lifting tools widely used across various industries. They are ideal for light to medium-duty applications, such as in workshops, garages, and small-scale construction sites, where lifting and moving equipment, machinery, or materials is required. These hoists are also commonly employed in warehouses for handling inventory, loading and unloading goods, and organizing storage spaces efficiently. In manufacturing, they assist in assembly lines and production processes by lifting and positioning parts and components. Additionally, mini electric wire rope hoists are used in maintenance tasks, such as repairing heavy equipment or performing building maintenance where accessibility is a challenge. Their compact size, portability, and ease of installation make them suitable for confined spaces and temporary setups, providing a cost-effective solution for various lifting needs without requiring extensive infrastructure.
