Nema 14 Stepper Motor Linear Actuator, 2 Phase, 10V, 0.5A

0 reviews • Write a review

from

$139.46

Ex Tax: $139.46

Stock: In Stock
Model: RDDLZ-STEPL-1005
Weight: 1.00
SKU: RDDLZ-STEPL-1005

Available Options

Short Description

Motor Type

Motor Screw Lead

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

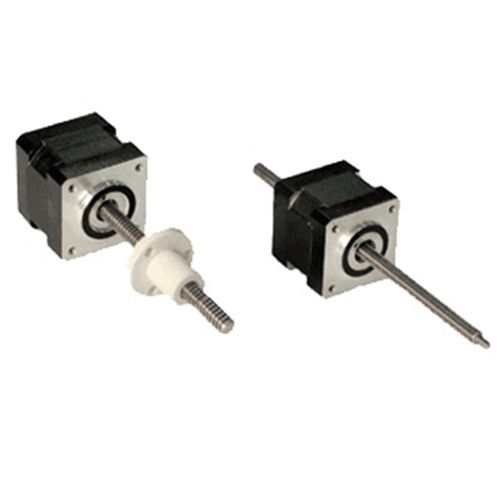

The 0.5A 10V Nema 14 stepper motor linear actuator is ideal for applications requiring a combination of precise positioning, rapid motion and long life. Typical applications include X-Y tables, medical equipment, semiconductor handling, telecommunications equipment, valve control, and numerous other uses.

Stepper Motor Linear Actuator Specification

Model Type	External Shaft	Non-Captive Shaft
	35H28-0504AST	35H28-0504GTS
Weight	3 kg
Length	28 mm
Phase	2 phase
Step Angle	1.8°
Rated Voltage	10 V
Rated Current	0.5 A
Resistance	20 Ω
Holding Torque	14 Oz-in
Number of Leads	4
Rotor Inertia	10 g-cm²

Select Leadscrew
Choose your stepper motor linear actuator screw from one of the available options:

Screw Diameter		Lead		Travel Per 1.8 Step
(in)	(mm)	(in/rev)	(mm/rev)	(in/step)	(mm/step)
0.315	8	0.079	2	0.00039	0.01
0.315	8	0.157	4	0.00079	0.02
0.315	8	0.315	8	0.00157	0.04
Note: Screw of 8mm diameter is made of copper.

Stepper Motor Linear Actuator Dimension (Unit=mm)

1. Non-captive shaft style

L=28mm

2. External shaft style

L=28mm

Details

Tips: Detection and maintenance of screw rod support bearing clearance

If the dial-gage indicator which measures the screw rod does not swing when the screw rod moves in forward direction and opposite direction, it shows that the screw rod does not move. The maximum and minimum measured value difference is the distance of the axial float of the screw rod. At this point, we will check whether the back cap of the supporting bearing is locked, whether the bearing is worn out or not, and the pre load bearing washer is suitable. If the bearing is damaged, the bearing needs to be replaced and the pre-loaded washer needs to be made again so as to tighten the back cap. The screw rod axial float largely depend on the precision of supporting bearing preload washer. The most ideal condition of the screw rod installation accuracy is that there is no positive and negative clearance, and the support bearing should have the interference of about 0.02mm.
