Portable Hydrogen Cyanide (HCN) Gas Detector, 0 To 10/20/50/100 Ppm

0 reviews • Write a review

from

$872.99

Ex Tax: $872.99

Stock: In Stock
Model: GD200-HCN
Weight: 1.00
SKU: GD200-HCN

Available Options

Accessories

Function

Measuring Range

Charger Plug

Extension Probe

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

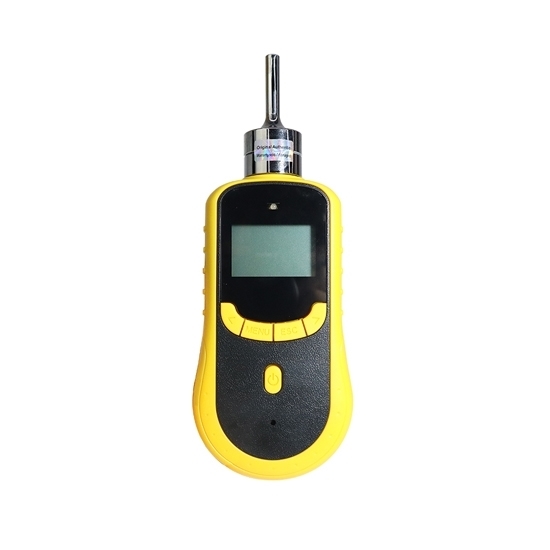

RDDLZ hydrogen cyanide gas detector is a kind of fast response and high accuracy gas measurement portable device. With internal sampling pump, fast sampling speed and high flow rate, ensuring the response time of the detector. Special high intensity engineering plastics housing, suitable for different kinds of situation and environment.

Specification

Model	GD200-HCN
Sampling Method	Pumping suction, flow rate can be up to 750ml/min
Detection Principle	Electrochemistry
Gas	Hydrogen Cyanide (HCN)
Range (Optional) *	0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm
Resolution	0.01ppm (0-10/20/50ppm), 0.1ppm (0-100ppm)
Accuracy	≤±3% F.S.
Response Time	≤10s
Repeatability	≤±1%
Recovery Time	≤10s
Linearity Error	≤±1%
Zero Shift	≤±1% (F.S./year)
Data Logging (Optional Function)	High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.)
Alarms	Sound, light and vibration
Display	LCD dot matrix display
Language	Chinese/English
Battery	3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug)
Operating Time	100h (Pump off)
Communication	Mini USB interface supports standard MODBUS communication protocol
Explosion-proof Grade	Ⅱ 2G Ex ia Ⅱ CT4 Ga
Case Material	ABS+PC
Protection Grade	IP66
Certification	CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Operating Temperature	-20℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Operating Pressure	0.8~1.2bar
Dimension	2057532mm
Weight	300g
Warranty	12 months

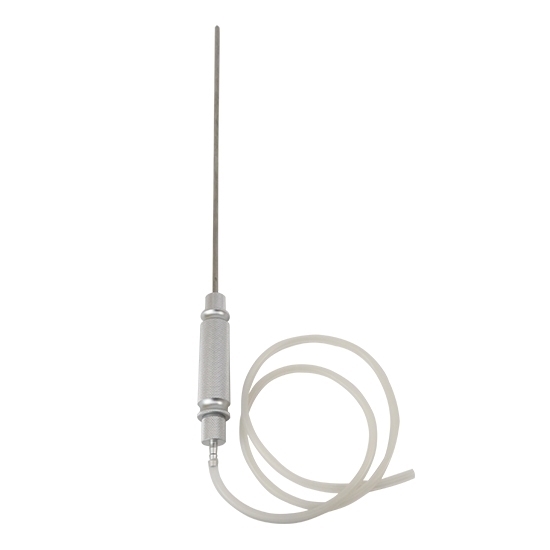

Extension Probe	About 480mm (Total Length), About 300mm (Probe Head)

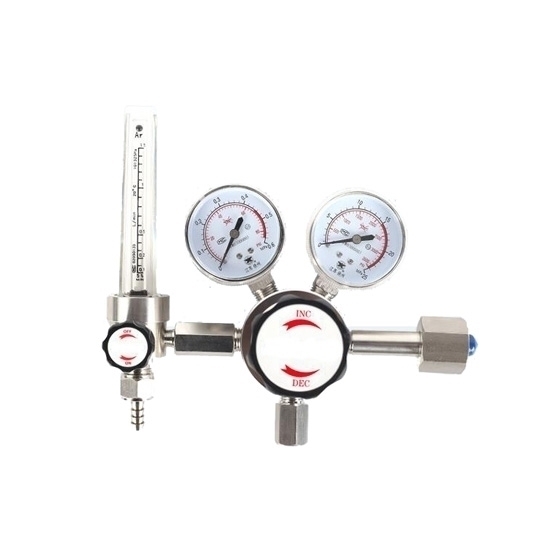

Accessories (Optional)	Calibration kit - gas pressure regulator (calibration gas cylinder NOT included) Body Material: Stainless steel Input Range of Pressure Gauge: 0-25MPa Output Range of Pressure Gauge: 0-0.6Mpa Gauge Class: 2.5 Input Pressure: ≤15MPa Output Pressure: ≤0.45MPa Rated Flow: 0.6 m³/h Connection: Inlet: W21.8-14 teeth/inch (levorotation, dextrorotation); Outlet: Ф6 flexible tube

Note:
* If you need a HCN gas detector with other measuring ranges unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.
* We also provide other common gas detectors, and you can refer to RDDLZ Gas Detector Catalog to get the specific gas type and measurement range. If you have any questions, please feel free to contact us.

*** Other Common Gases and Ranges Available for Portable Gas Detectors

Gas Type	Measure Range	Resolution
Ammonia (NH3)	0-10/20/50/100/200/500/1000/2000/5000ppm	0.01ppm/0.1ppm/1ppm
Benzene (C6H6)	0-1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Carbon Dioxide (CO2)	0-1000/2000/5000/10000/20000/50000ppm, 0-10%/20%/30%/50%/100% VOL	1ppm, 0.01% VOL
Carbon Monoxide (CO)	0-10/20/50/100/500/1000/2000ppm	0.001ppm/0.01ppm/1ppm
Chlorine (Cl2)	0-5/10/20/50/100/200ppm	0.001ppm/0.01ppm/0.1ppm
Chlorine Dioxide (ClO2)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Ethylene (C2H4)	0-10/20/50/100/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Flammable	0-100% LEL	1% LEL
Formaldehyde (CH2O)	0-10/20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Hydrocarbons (HC)	0-100% LEL	1% LEL
Hydrogen (H2)	0-10/20/100/500/1000/2000/3000/5000/10000/20000/40000ppm, 0-4% VOL	0.001ppm/0.01ppm/0.1ppm/1ppm, 0.001% VOL
Hydrogen Chloride (HCl)	0-10/20/50/100/200/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Hydrogen Cyanide (HCN)	0-10/20/50/100ppm	0.01ppm/0.1ppm
Hydrogen Fluoride (HF)	0-1/5/10/50ppm	0.001ppm/0.01ppm
Hydrogen Sulfide (H2S)	0-5/10/20/50/100/200/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Methane (CH4)	0-100% LEL, 0-50%/100% VOL	1% LEL, 0.01%VOL
Methyl Bromide (CH3Br)	0-50/100/200/500/1000/2000/3000ppm	0.1ppm/1ppm
Nitric Oxide (NO)	0-20/50/100/250/500/1000ppm	0.01ppm/0.1ppm/1ppm
Nitrogen (N2)	0-99.99%/100% VOL	0.01% VOL
Nitrogen Dioxide (NO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Oxygen (O2)	0-25%/30%/100% VOL	0.01% VOL
Ozone (O3)	0-1/5/10/20/50/100/200/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Phosgene (COCl2)	0-1/5/10ppm	0.001ppm
Phosphine (PH3)	0-10/20/50/100/500/1000/2000/3000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Dioxide (SO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Hexafluoride (SF6)	0-1000/2000/3000ppm	1ppm
Volatile Organic Compounds (VOC)	0-1/5/10/20/100ppm	0.01ppm/0.1ppm

Details

Application

Tips: What is the use of gas detectors in the production process?

In the production process of the factory, we need to use or produce various hazardous chemicals, among which there are many toxic and explosive substances, and the risks are high. In the process design, not only can the production safety be ensured by means of closed operation, maintaining a safe distance, setting up mechanical ventilation, ensuring pressure relief areas, etc., but also by taking necessary monitoring measures to greatly reduce risks, such as the installation of combustible gas detectors, toxic gas detectors.

Combustible gas alarm, that is, gas leak detection alarm, is a preventive alarm in regional security monitoring. When the combustible gas alarm in the industrial environment detects that the concentration of combustible gas reaches the critical point of the lower or upper explosion limit, the combustible gas detector and the toxic gas detector will send an alarm signal to remind the staff to take safety measures and drive the exhaust, Cut off and spray system to prevent explosion, fire and poisoning accidents and ensure safe production.
