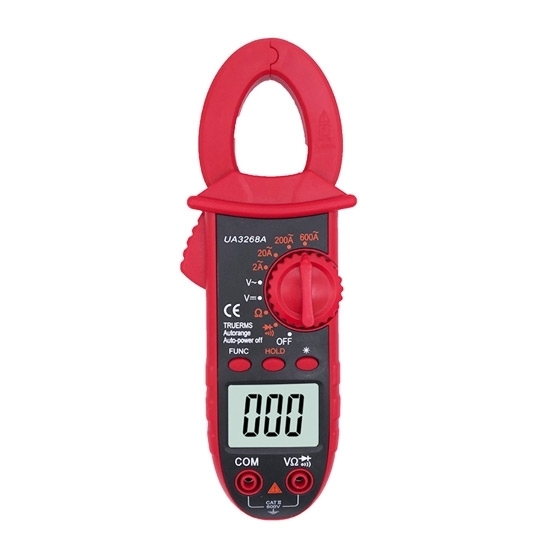

Mini Clamp Meter, AC Current 600A, True RMS Function

0 reviews • Write a review

from

$73.89

Ex Tax: $73.89

Stock: In Stock
Model: RDDLZ-CLAM-3268A
Weight: 1.00
SKU: RDDLZ-CLAM-3268A

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Digital clamp meter has AC current range 0-600A, TRMS function, maximum jaw opening size 28mm, 4 digit display and maximum value 1999.

Specification:

Basics	Model	RDDLZ-UA3268A
	Weight	160g
	Size (LWH)	1855125mm
	Display	4 digit LCD display
	Maximum display value	1999
	Power supply	DC 3V, 2 AAA batteries
	Maximum jaw opening size	28mm
	Woring environment	Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75%
	Storage temperature	-10℃~+50℃ (14℉~122℉)
	Accessories	A pair of test probes, a user manual, 2 AAA batteries
Functions	Item	Range	Accuracy
	AC current	600A	±(2.5%+5 digits)
	DC voltage	600V	±(1.0%+5 digits)
	AC voltage	600V	±(1.5%+5 digits)
	Resistance	2MΩ	±(1.0%+4 digits)
Special functions	TRMS	True RMS measurement for sine wave signal
	Diode test	Display forward voltage value of diode
	On-off buzzer	Continuity test buzzer
	Data hold	Hold the reading when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Manual range selection
	Backlight	Backlight for LCD display

Details

Tips: True RMS zero input characteristics of clamp meter

To test sine wave signal measurement, the True RMS measurement method makes less error than traditional way of average response.
The True RMS clamp meter measures the sine wave accurately, but it may display a reading between 1 and 50 when the measured signal is not being input (select the ac voltage function, the input short circuit) for the AC function. These deviation readings are normal. They do not affect the clamp meter's accuracy of measuring AC power within the specified measurement range.
True RMS values require the input signal to reach a certain level for measurement. Therefore, the AC voltage and current ranges are specified between 2% and 100% of full range.
