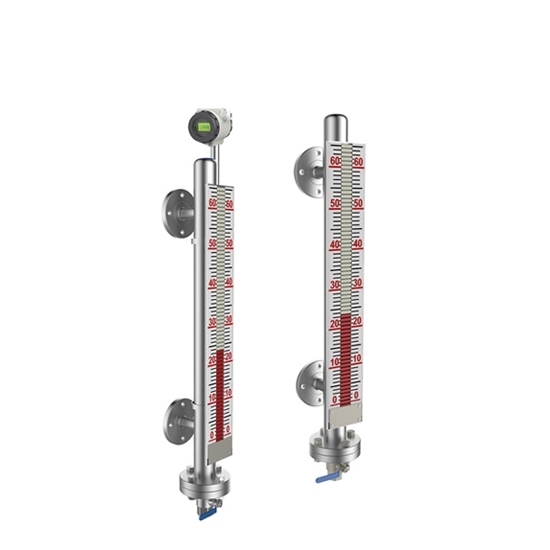

Magnetic Level Gauge For Fuel/Oil Tank, 4-20mA

0 reviews • Write a review

from

$659.46

Ex Tax: $659.46

Stock: In Stock
Model: RDDLZ-MLG-01
Weight: 1.00
SKU: RDDLZ-MLG-01

Available Options

Short Description

Type

Installation Method

Scale Length

Transfer Method

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The manufacturer directly sells a low price magnetic level gauge with a 4~20mA transmission mode, and the length of the scale can be customized. Durable magnetic level indicator meets the requirements of high temperature, high pressure, strong acid, strong alkali and explosion-proof, can be used for wastewater treatment, power plants, chemical equipment, thermal kerosene boilers and petrochemical industries, etc.

Features

In addition to the on-site display of liquid level measurement, the magnetic level gauge can be equipped with a remote liquid level signal to realize alarm and automatic control.
The display of the liquid level gauge is intuitive and eye-catching, simple structure, no blockage and leakage, and easy installation and maintenance.
It is suitable for high temperature, high pressure, strong acid, strong alkali and explosion-proof requirements.
If the power supply is interrupted, the on-site magnetic switch will not be affected, and the accuracy is high.
Magnetic level gauge suits dyeing and finishing equipment, wastewater treatment, power plant, chemical equipment, thermal kerosene boiler, etc.

Specifications

Model	RDDLZ-UHZ-59
Types	Common Type / Anti-Corrosion Type (Acid-Base Medium)
Material	Stainless Steel (Common Type), 304 lined with PTFE Material (Anti-Corrosion Type)
Scale Length	1m, Contact us for other lengths.
Measuring Range	300~18000mm
Medium	Liquid Medium
Medium Density	0.5~2g/cm³
Media Density Difference	≥0.15g/m³
Medium Viscosity	≤0.02Pa.S
Medium Viscosity	For a medium with high viscosity or a medium that is easy to crystallize when the temperature is low, a heating jacket-type liquid level gauge can be selected according to user requirements.
Operating Temperature	-40~350℃
Working Pressure	≤2.5MPa, Contact us for high pressure.
Measurement Accuracy	≤±10mm
Installation Method	Side-Mounted / Top-Mounted / Bottom-Mounted (Optional)
Protection Class	IP65
Explosion-Proof Grade	If you need ib lI CT4 or d II BT4 explosion-proof grade, please feel free to contact us.
Transfer Method	4~20mA (Optional)
Interface Flange	HG20592.20635-97 Standard
Interface Flange	If you need to adopt other standards (such as GB, ANSI, DIN, etc), please feel free to contact us.

Details

Installation Method

Applications

Tips: What is a magnetic flap level gauge?

A magnetic flap level gauge is a device used to measure the liquid level in a tank or vessel. It consists of a magnetic float and a magnetic flap indicator. RDDLZ magnetic float is a buoyant object that floats on the surface of the liquid inside the tank. It is typically cylindrical in shape and contains a permanent magnet. As the liquid level changes, the float moves up and down accordingly.

The magnetic flap indicator is a separate component located outside the tank. It contains a magnetically responsive flap that is connected to the magnetic float inside the tank through a shaft or linkage. The flap rotates based on the position of the float, indicating the liquid level.

The magnetic interaction between the float and the flap allows for a visual indication of the liquid level without the need for direct contact between the liquid and the indicator. This makes it suitable for measuring the level of corrosive, hazardous, or high-temperature liquids.

The position of the magnetic flap is typically marked with a scale or graduated markings to provide a clear and easily readable level indication. Some magnetic flap level gauges may also include features such as high and low-level alarms or switches to provide control signals based on specific thresholds.

Magnetic flap level gauges can be used with a float valve and are commonly used in various industries, including chemical processing, oil and gas, water treatment, and storage tanks, where accurate and reliable level measurement is essential for process control and inventory management.
