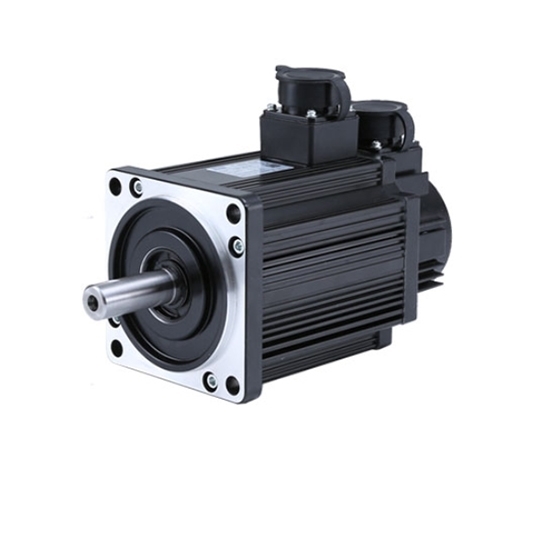

1.2 KW AC Servo Motor, 4 Nm/12 Nm, 3000 Rpm

0 reviews • Write a review

from

$569.17

Ex Tax: $569.17

Stock: In Stock
Model: ATO110ST-M04030
Weight: 1.00
SKU: ATO110ST-M04030

Available Options

Short Description

With Matched Controller

Absolute Encoder

Motor Cable & Encoder Cable

Motor Encoder Type

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1200W AC servo motor brushless design, rated torque of 4 Nm, maximum output torque of 12 Nm, 3000 rpm, three phase 220V AC supply voltage, equipped with a 2,500 PPR incremental/ absolute encoder.

Note: For 1.2 kW AC Servo Motor, RDDLZ Provides upgraded models with more powerful features. Please go to the page https://www.ato.com/1-2-kw-ac-servo-motor.

Specification

Basics	Model	RDDLZ110ST-M04030
	Matched Drive Model	RDDLZMG-1000 (Click it to the product page)
	Square Flange Size	110 mm
	Rated Power	1200 W
	Rated Voltage	three phase 220V AC
	Rated Current	5 A
	Rated Speed	3000 rpm
	Rated Torque	4 Nm
	Peak Torque	12 Nm
	Weight	6 Kg
	Length	189 mm
Technical Parameters	Voltage Constant	54 V/ 1000r/ min
	Torque Coefficient	0.8 N.m/ A
	Torque Inertia	0.54 x 10^-3 Kg.M²
	Line-Line Resistance	1.09 Ω
	Line-Line Inductance	3.3 mH
	Electrical Time-Constant	3 ms
	Encoder Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class B
	Safety Class	IP65
Environment	Temperature	-20℃ ~ +40℃
Environment	Humidity	<90%RH, (no dewing)

Dimension (unit: mm)

L (without brake): 189mm, L (with brake): 245mm

Details

Winding and Encoder Connection

1. For servo motor winding

Motor Winding Plug	Winding Lead	U	V	W	PE
Motor Winding Plug	Socket Number	2	3	4	1

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	B	Z-	U	Z	U-	A	V	W	V-	A-	B-	W-	PE
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1
