Digital Thickness Gauge For Paper/Film/Leather

0 reviews • Write a review

from

$196.19

Ex Tax: $196.19

Stock: In Stock
Model: RDDLZ-TG-SD202
Weight: 1.00
SKU: RDDLZ-TG-SD202

Available Options

Measuring Range

Resolution

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

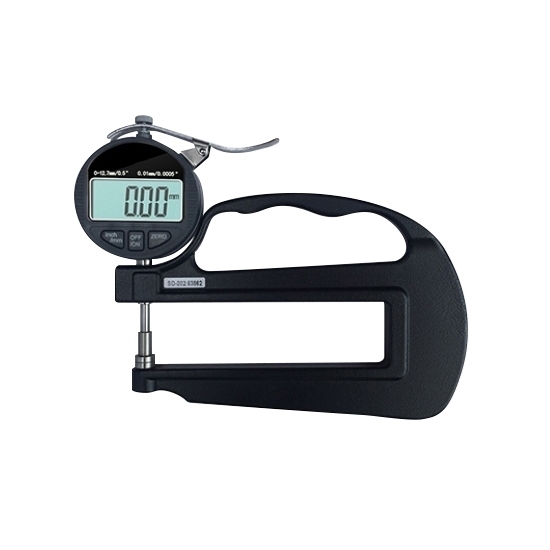

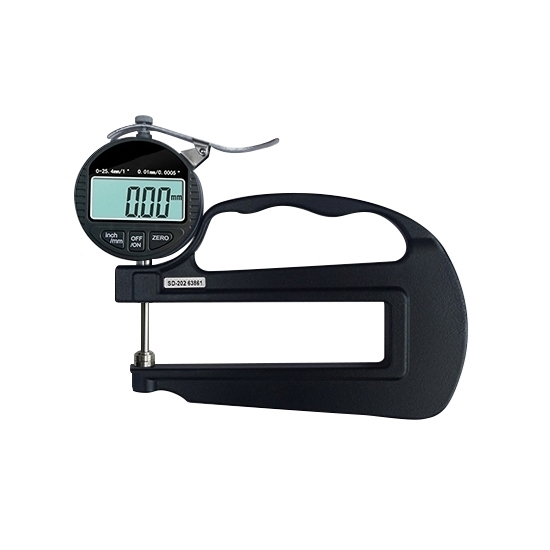

RDDLZ digital thickness gauge is designed for measuring the thickness of materials like paper, film, and leather with high accuracy. It features a digital display for easy reading, which is widely used in industries like printing, textiles, and leather manufacturing.

Specification

Model	RDDLZ-SD-202-120/25	RDDLZ-SD-201-120/25
Measuring Range	0-12.7mm (1/2 inch)/0-25.4mm (1 inch)	0-12.7mm (1/2 inch)/0-25.4mm (1 inch)
Resolution	0.01mm	0.001mm
Tolerance	±0.02mm	±0.005mm

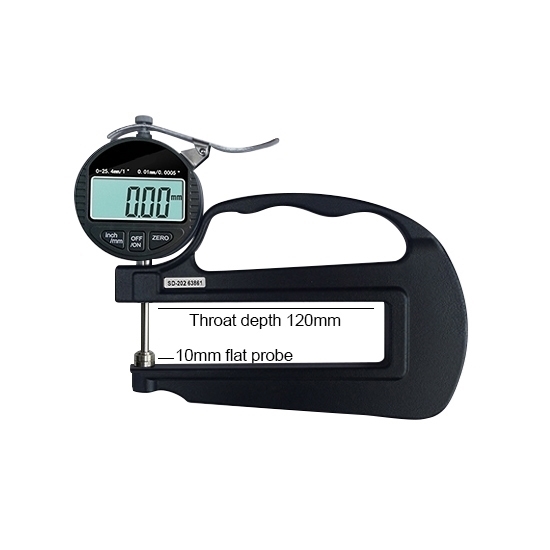

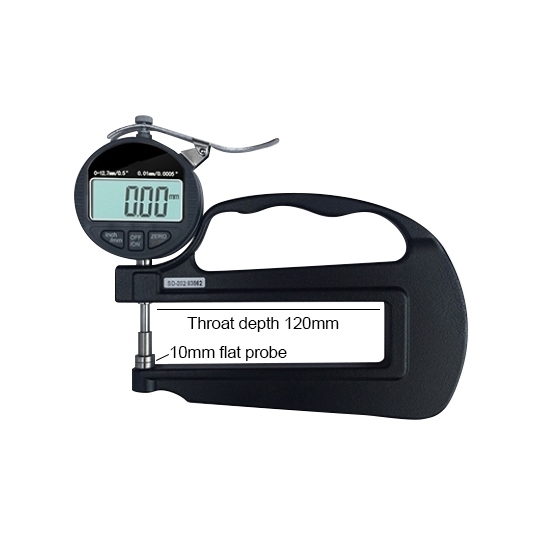

Probe Diameter	10mm
Probe Material	Alloy
Throat Depth	120mm
Applicable	Large Flat Sheets of Paper/ Leather/Film/Board/Cloth

Details

Tips: Difference between digital thickness gauges with 0.01mm and 0.001mm resolution

A digital thickness gauge with 0.01mm resolution provides measurements rounded to the nearest hundredth of a millimeter, making it suitable for applications where moderate precision is acceptable. In contrast, a 0.001mm resolution gauge offers measurements to the nearest thousandth of a millimeter, making it ideal for tasks requiring extremely high accuracy, such as precision engineering or scientific research. The choice between the two depends on the required precision level, budget, and the specific application.
