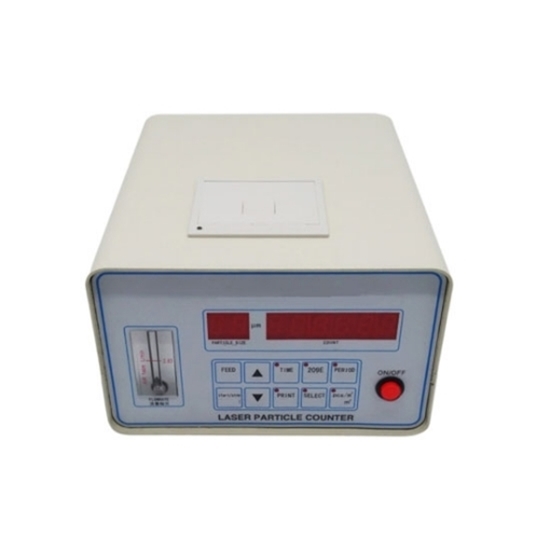

Laser Particle Counter, 28.3L/min, 6 Channel

0 reviews • Write a review

from

$4,328.69

Ex Tax: $4,328.69

Stock: In Stock
Model: RDDLZ-PC-3106
Weight: 1.00
SKU: RDDLZ-PC-3106

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Laser particle counter with level alarm function, which can alarm for clean room level 100, 1000, 1w, 10w, 30w, 100w. Laser particle counter particle size channel including 0.3, 0.5, 1.0, 3.0, 5.0, 10.0um, can simultaneously measure the number of dust particles of various particle sizes, and optional observation of the number of particles of a certain size and its changes, for the study, detection and evaluation of various clean environments are very convenient.

Specification

Model	RDDLZ-QT3106L
Light Source	Semiconductor laser, life expectancy greater than 10 years (30,000h)
Flow Rate	28.3L/min (1ft3)
Display	122 x 90mm high-resolution liquid crystal display (LCD), can directly display the particle concentration (particles / cubic meter)
Power Supply	AC power supply AC: 220V Shi 5%, 50HZ
Working Time	10 hours
Counting Mode	Cumulative value, difference value, concentration value
Test Mode	Single, repeat, continuous, calculation, remote
Unit Conversion	Unit can be converted to m³
Particle Size Channel	0.3, 0.5, 1.0, 3.0, 5.0, 10.0um, six grades of particle size at the same time, counting particle size can be customized according to customer needs
Sampling Period	1~999 (S), delayed counting 0~99 (S), self-purification time: ≤10 (min)
Working Temperature	0~40°C (50~104°F)
Relative Temperature	20~90%RH, no condensation
Atmospheric Pressure	86~106KPa
UCL Setting	Sampling points(A): 2~9 points setting, sampling times per point (L): 2~9 times setting, measuring position: 0-999
UCL Statement	Conform to IS014644-1, GB50073-2001, GMP(2010)
Data Storage	100 sets of data can be stored, no data loss after power failure.
Communication Interface	RS232, 9600 baud rate
Alarm Setting	Can alarm the clean room level 100, 1000, 1W, 10W, 30W, 100W after exceeding the standard
Overlap Error	5%, 2,00,000 grains/cubic feet

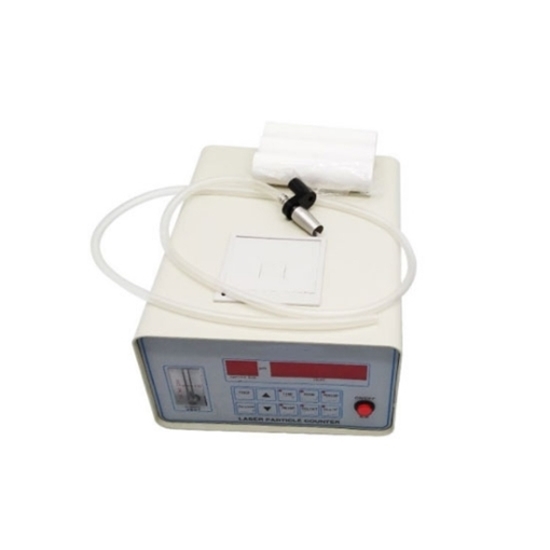

Standard Configuration	Professional isokinetic sampling head, sampling bracket with sampling tube, zero filters, USB to RS 232 module, RS232 connection cable, computer connection communication software CD, built-in printer
Printing Function	Built-in printer
Weight	8.6kg
Dimensions	260x140x400mm

Applications

Tips: What is the working principle of laser particle counter?

A laser particle counter is an instrument that uses the principle of light scattering to count dust particles. Light scattering is related to factors such as particle size, light wavelength, particle refractive index, and particle absorption characteristics of light. However, in terms of the intensity of scattered light and the size of particles, there is a basic rule that the intensity of light scattered by particles increases with the increase of the surface area of the particles. In this way, a certain flow of dust-laden gas passes through a beam of strong light, causing the particles to emit scattered light, which is projected onto the photomultiplier tube through the condenser lens, and the light pulse is converted into an electric pulse, and the number of particles is obtained from the number of pulses. The particle diameter is obtained from the function relationship between the intensity of the particle scattered light and the particle diameter.
