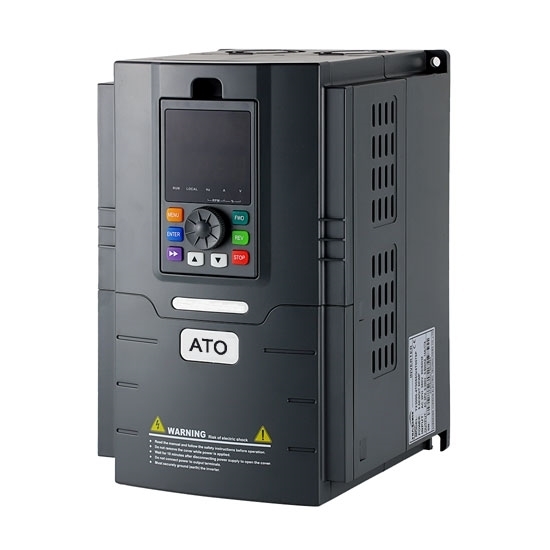

5 Hp (4 KW) VFD, Single Phase Input & Output

0 reviews • Write a review

from

$649.54

Ex Tax: $649.54

Stock: In Stock
Model: GK3000-1S0037
Weight: 1.00
SKU: GK3000-1S0037

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

5 hp variable frequency drive, 4 kW, 1 phase 220V - 240V for single phase AC motor, manufacturer direct sale.

Specification:

Basics	Model	GK3000-1S0037
	Capacity	5 hp (4 kW)
	Shipping weight	8 kg
	Dimension (HWD)	330200200 mm
I/O Feature	Rated current	25 A
	Input voltage	single phase AC 220V±15%
	Input frequency	47~63Hz
	Output voltage	0～rated input voltage
	Output frequency	0~1000Hz
	Over load capacity	150% of rated current for 60s, 180% of rated current for 10s, 200% of rated current for 3s
Control Features	Control mode	V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC)
	Operation command mode	Keypad control, Terminal control, Serial communication control
	Frequency setting mode	Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.
	Start frequency	0.40Hz~20.00Hz
	Speed adjustment range	1:50
	Carrier frequency	1.0-16.0kHz, automatically adjusted according to temperature and load characteristics
	Frequency accuracy	Digital setting: 0.01Hz Analog setting: Maximum frequency * 0.05%
	Torque boost	Automatically torque boost; manually torque boost: 0.1%~30.0%
	V/f curve	Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
	Acceleration/deceleration mode	Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s
	Jog operation	Jog operation frequency: 0.0Hz~maximum frequency Jog acceleration/deceleration time: 0.1s~3600.0s
	Simple PLC & multi-step speed operation	It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.
	Built-in PID	Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
	Automatic voltage regulation	Keep output voltage constant automatically when input voltage fluctuating
Control Function	Common DC bus	Common DC bus for several VFDs, energy balanced automatically
	Torque control	Torque control without PG
	Torque limit	"Rooter" characteristics, limit the torque automatically and prevent frequent over-current tripping during the running process
	Wobble frequency control	Multiple triangular-wave frequency control, special for textile
	Timing/length/counting control	Timing/length/counting control function
	Over-voltage & over-current stall control	Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
	Fault protection function	Up to 30 fault protections including over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running status during failure & has fault automatic reset function
Input/output terminals	Input terminals	Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI: AI1: 0～10V or 0/4～20mA A12: 0～10V or 0/4～20mA
	Output terminals	1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output) 2 relay output 2 analog output: 0/4~20mA or 0~10V
	Communication terminals	Offer RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interface	LED display	Display frequency setting, output frequency, output voltage, output current, etc.
Human machine interface	Multifunction key	QUICK/JOG key, can be used as multifunction key
Environment	Ambient temperature	-10℃～40℃, derated 4% when the temperature rise by every 1℃ (40℃～50℃).
	Humidity	90%RH or less (non-condensing)
	Altitude	≤1000M: Output rated power, ＞1000M: Output derated
	Storage temperature	-20℃～60℃

Note:

The single phase motor should Not be adjusted to run based on a lower frequency than 80% of its rated frequency for along time, otherwise the motor may fail.
RDDLZ VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.
Single phase VFD Cannot control the motor in reverse, if you want to reverse the motor, refer to the motor nameplate instructions for operation.

Details

Tips: Six attentions of installing VFD in automatic control system

For the frequency given signal should be used as far as possible 4-20mA international standard signal. Should make sure the signal line shield ground, to avoid the interference signal into the VFD. The production site has an interference signal, the interference signal will affect the stability of the control, so need to use input filter, and set its range to be 0.00-5.00s. If using VFD built-in PID function should use the feedback filter to increase the control stability of the built-in PID, the setting range is 0.0-60s. However, it should be noted that the filter time is set too long, the control is stable, but the system response is worse; the filter time is set too short, the system response is fast, but the control is unstable. So it should be based on the actual scene to make adjustments.
To set the corresponding manual, automatic switching operating function. Optional manual, automatic, forced manual functions of manual operator. If necessary, could also consider the redundant operation function of the current and voltage setting, that is, the VFD frequency setting signal use current setting in normal, using voltage setting in abnormal manual operation. That is, add a potentiometer for setting g the VFD frequency, so the VFD frequency reference signal has two types, current signal and voltage signal. Because there are two types of frequency setting signals input in the VFD, increasing its redundancy degree.
Must set the "overhaul switch", that is, set the "on-site overhaul switch" next to the operating equipment, when switch it to the "overhaul" position, equal to cut off the VFD running signal circuit. If someone misuse, the equipment can't run, to ensure that the safety of mechanical equipment maintainer.
Make full use of the VFD input and output control terminals function, to carry out some alarm and interlock function, to reduce wiring and improve reliability.
For single or simple control system, can take full advantage of the VFD built-in PID control function to reduce the control system equipments and reduce investment.
Some VFD have input terminals R0, T0 of control power. So should connect control power to VFD R0, T0 side in front of the main power supply. So that the VFD still has a display function after the trip, in order to analyze the cause of the malfunction and take countermeasures.
