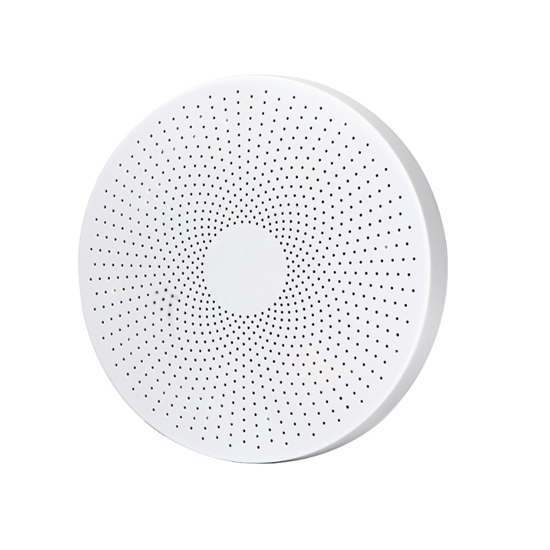

Indoor Air Quality Sensor, Temp/Humidity/PM2.5/PM10/H2S/CO2

0 reviews • Write a review

from

$317.56

Ex Tax: $317.56

Stock: In Stock
Model: RDDLZ-AQS-HAQS
Weight: 1.00
SKU: RDDLZ-AQS-HAQS

Available Options

Short Description

Tested Substances

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low-cost indoor air quality sensor for sale, measuring temperature (-20°C to +60°C), humidity (0-100% RH), PM2.5 (0-1000µg/m³), PM10 (0-2000µg/m³), H2S (0-100ppm), and CO2 (0-2000ppm).

Specification

Model	RDDLZ-BRW100-2204
Transmission Method	RS485
Humidity Range	0~100% RH
Operating Temperature	-20°C~+60°C
PM2.5 Measurement Range	0-1000ug/m3
PM10 Measurement Range	0-2000ug/m3
H2S Measurement Range	0~100ppm
CO2 Measurement Range	0~2000ppm
Illumination	0-200Klux
Communication Protocol	MODBUS RTU
Power Supply	12-24VDC Supply
Power Consumption	<150mA
Power Consumption	0.5W
Sampling Method	Diffuse
Installation Method	Wall Mount/Ceiling Mount
Body Material	ABS
Lifespan	5 years

Feature

Multi-Parameter Precise Monitoring: Capable of real-time monitoring of indoor temperature, humidity, carbon dioxide, PM2.5/PM10, and gases.
Industrial-grade Sensor Chip: Utilizes a high-precision intelligent chip with strong anti-interference capability for more accurate measurements.
IP65 Waterproof Rating: Meets IP65 waterproof standards, suitable for use in humid environments and capable of operating normally in various conditions.
Counterflow Air Hole Design: Designed with counterflow air holes for more accurate measurements and efficient airflow.
Wide Range of Applications: Widely applicable for comprehensive environmental monitoring in various indoor settings.

Application

Tips: Can the sensor be integrated with other smart devices or systems?

Yes, the Indoor Air Quality Sensor can be integrated into a broader smart building or air quality management system. Its RS485 communication protocol makes it compatible with various monitoring platforms and automation systems. This allows the sensor to send real-time data to a central hub, which can then trigger automated actions, such as turning on ventilation fans, adjusting air conditioning systems, or notifying facility managers when air quality drops below desired levels. If you’re using the sensor in a smart home or smart office environment, this integration can help improve the comfort and health of your space automatically.
