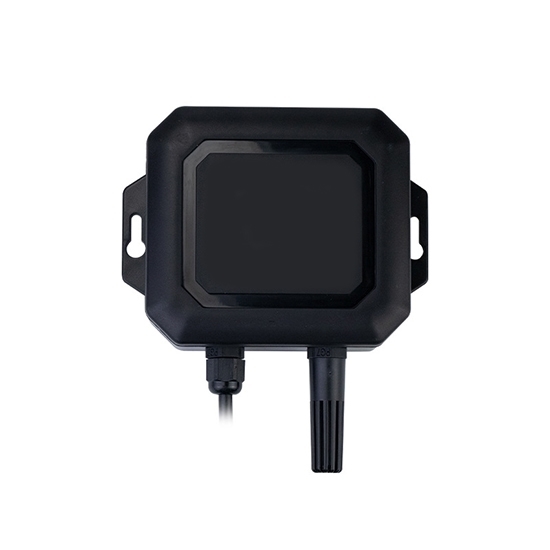

Air Particle Sensor, PM2.5/PM10, RS485 Output

Air Particle Sensor, PM2.5/PM10, RS485 Output
Air Particle Sensor, PM2.5/PM10, RS485 Output
0 reviews • Write a review
from
$249.55
Ex Tax: $249.55
  • Stock: In Stock
  • Model: RDDLZ-AQS-FST100
  • Weight: 1.00
  • SKU: RDDLZ-AQS-FST100

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Adopt professionally tested PM2.5/10 air particle concentration sensor, laser probe as the core detection device of this air quality transmitter, RS485 communication interface, communication address and baud rate can be set up to the farthest communication distance of 2000 meters. Equipped with dual-frequency data acquisition and automatic calibration technology, consistency of up to ±10%, air quality monitoring sensors are made of high-density material, closed by waterproof adhesive strips, moisture-proof effect is remarkable.

Specification

ModelRDDLZ-FST100-2005
Measuring RangePM2.5: 0～1000ug/m3
PM10: 0～1000ug/m3
Output MethodRS485 (Modbus RTU protocol)
DC Power Supply (default)10~30VDC
Communication InterfaceRS485 communication (Modbus protocol)
Resolution1ug/m3
Precision±10% (@100-500ug/m3)
±10ug/m3 (@0-100ug/m3)
Response Speed≤30s
Warm-up Time≤60s
Transformer Circuit Operating Temperature-10°C~+60°C, 0%RH~99%RH (non-condensing)
Parameter SettingConfiguration through RS485 interface using supplied configuration software


Feature

  • This PM2.5/PM10 air quality sensor, PM2.5, PM10 output at the same time. The range is 0-1000ug/m3, resolution 1ug/3.
  • Unique dual-frequency data acquisition and automatic calibration technology, consistency up to 10%. Adopt advanced laser anti-attenuation technology to ensure the long-term stability of the equipment.
  • Standard Modbus-RTU communication protocol, easy access to air quality sensors.

Dimension (unit: mm)

Details

  1. Four-core Waterproof Shielded Cable: The cable of the air quality sensor is waterproof, oil-resistant and anti-aging, with strong anti-interference ability and stable signal transmission.
  2. Wall Mounting: It can be wall mounted, which is simple and convenient and can save space.
  3. Air particle sensor adopts advanced laser anti-attenuation technology, the resolution reaches 1ug/m3, to ensure the long-term stability of the device.

Wiring Diagram

Red: Power PositiveRed: Power Positive
Black: GNDGreen: +Out (PM2.5)
Green: RS485-ABlue: +Out (PM10)
White: RS485-BBlack: -Out (PM2.5)
/Yellow: -Out (PM10)


Installation

Application

Tips: Air particle sensor basics

RDDLZ's air quality transmitter is an industrial-grade general-purpose particle concentration transmitter that utilizes the laser scattering measurement principle, sieves through the unique dual-frequency data acquisition technology to derive the number of particulate matter particles per unit volume of equivalent particle size, and calculates the mass concentration of particulate matter particles per unit volume of equivalent particle size with a scientifically unique algorithm.

Uses an RS485 interface to perform the Modbus-RTU protocol through the data output via RS485 interface via Modbus-RTU protocol. It can be used in outdoor weather stations, dust monitoring, libraries, archives, industrial plants and other places where PM2.5 or PM10 concentration monitoring is required.
