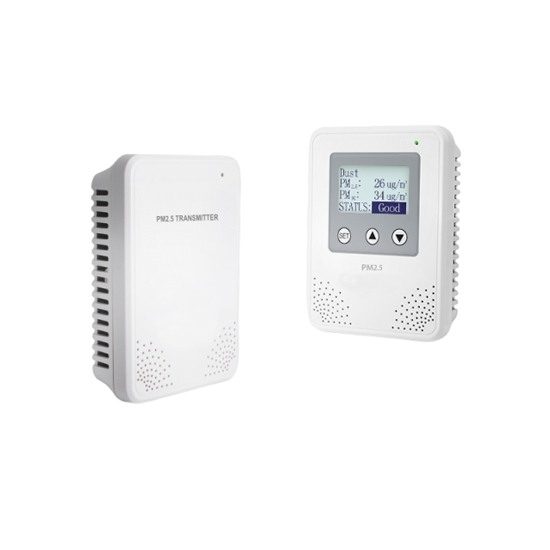

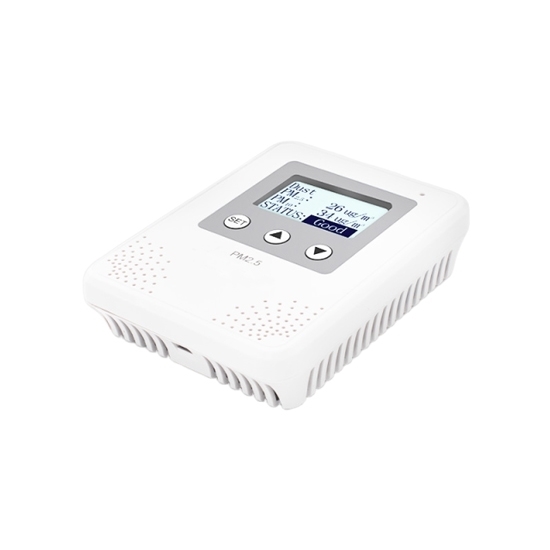

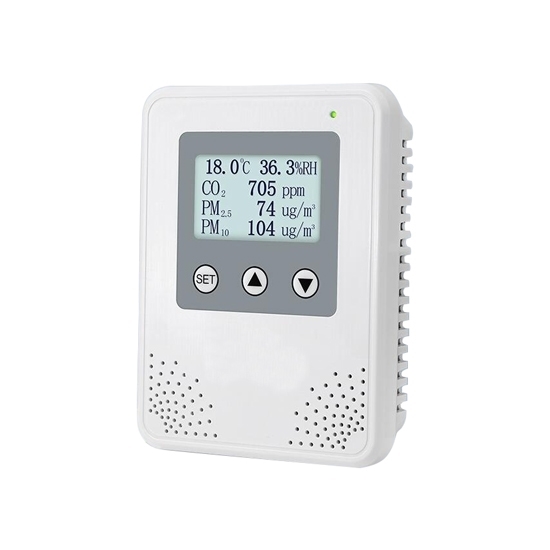

Digital Air Quality Sensor For Home, RS485 Output

0 reviews • Write a review

from

$320.89

Ex Tax: $320.89

Stock: In Stock
Model: RDDLZ-AQS-LFG303
Weight: 1.00
SKU: RDDLZ-AQS-LFG303

Available Options

Output Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Indoor air quality sensor for sale, this RDDLZ shop air quality monitoring sensor with digital display optional isolated/non-isolated RS485 output signal, long service life, maintenance-free, fast response, stable performance and high accuracy. Can be optional relay output, equipped with a display and keys can be set to different relay operating mode, providing 3-color LED indicator intuitive prompts the degree of environmental pollution. Compact size, simple installation, can be widely used in all kinds of commercial complexes, intelligent buildings office environment, hospitals, schools and other places in the air PM2.5/PM10 particle monitoring.

Specification

Model	RDDLZ-LFG601
Temperature
Sensor	Digital Temperature Sensor
Range	0~50°C
Accuracy	±0.5°C @ 20°C, ±1°C @ 0~50°C
Response Time	10~30s (20°C, slow air)
Relative Humidity
Sensor	Digital Humidity Sensor
Range	0~100%RH
Accuracy	±3%RH @ 20°C, 20~80%RH
Response Time	≤10 seconds (20°C, slow air)
PM2.5
Sensor	Laser Dust Sensor
Particle Size	0.3–2.5 μm
Range	0–500 μg/m³
Consistency	±10% FS @ 100–500/600 μg/m³
Resolution	1 μg/m³
PM10
Sensor	Laser Dust Sensor
Particle Size	0.3–10 μm
Range	0–600 μg/m³
Consistency	±10%FS@100–500/600 μg/m³
Resolution	1 μg/m³
CO2
Sensor	NDIR sensor with ABC self-check
Range	0–5000 ppm
Accuracy	±40 ppm ±3% MV
Response Time (T90)	2 min
Power Supply	12–36 VDC / 24 VAC ±20%
Output Signal	Isolated/non-isolated RS485 (optional)
Operating Environment	0–50°C & 0–95% RH (no condensation)
Storage Temperature	–20–60°C & 0–95% RH (no condensation)
Display and Buttons	Yes
LED Indicator Lights	Green: Good
	Yellow: Average
	Red: Poor
Protection Rating	IP30
Installation Method	Indoor type
Housing Material	PC
Net Weight	148g

Feature

This home air quality sensor adopts laser dust sensor, detecting particle size 0.3~10μm.
Equipped with a variety of output methods to choose from, adapting to different scene requirements.
Perfect over-voltage and reverse connection protection, high long-term reliability.
3-color LED indicator can intuitively prompt the degree of environmental pollution.
Air quality monitoring sensor housing design is lightweight and beautiful, standard 86 box mounting hole spacing.

Dimension (unit: mm)

Wiring Diagram

Installation Methods

Open the transmitter by pressing the cover button under the back cover of the indoor air quality sensor (e.g. 1, 2).
Follow the wiring diagram to complete the electrical connections and introduce the cables through the crossing holes (e.g. 3, 4).
The back cover of the digital air quality transmitter has three mounting holes, use expansion screws to fix it on the wall (e.g. 5), or you can use screws to fix it on top of the pre-buried 86 box on the wall (e.g. 6).
Align and fasten the position of the front cover with the bottom case to complete the installation (e.g. 7).

Application

Tips: How to choose the right air quality sensor for home use?

When choosing an air quality sensor for home use, it is recommended to focus on the following points: First, make sure that the air particulate sensor is capable of detecting the type of pollutant you are concerned about. Second, check the sensor's detection accuracy and response speed. In addition, consider whether the air quality monitoring sensor has real-time monitoring, historical data logging, and compatibility with smart home systems. Finally, choose the right sensor according to the size of your home and make sure its coverage is adequate.

Indoor air quality sensors require regular maintenance to ensure their accuracy and long-term stability. Typically, the detection element of an air quality transmitter needs to be replaced every 6 months or 1 year. Some sensors offer automatic calibration, but it is also important to regularly check the working condition of the device and clean the sensor surface to avoid dust accumulation.
