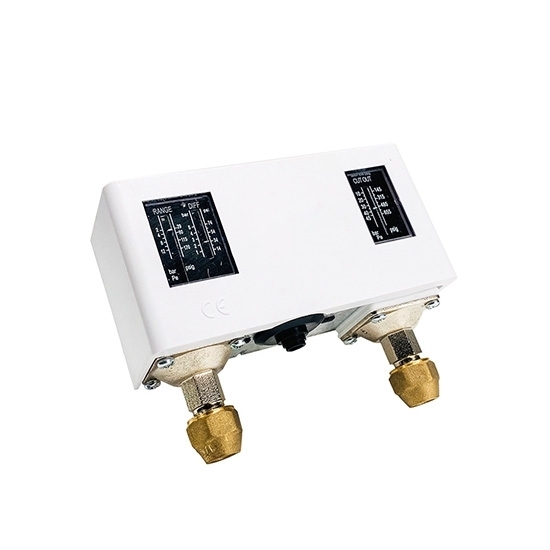

Refrigeration Pressure Switch, -0.2 To 32 Bar/2 To 45 Bar

0 reviews • Write a review

from

$92.46

Ex Tax: $92.46

Stock: In Stock
Model: RDDLZ-RPS-LF58
Weight: 1.00
SKU: RDDLZ-RPS-LF58

Available Options

Short Description

Power Supply

Bracket

Connection Type

Protection Level

Pressure Range

Medium

Reset Method

Interface Material

Cover Color

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The refrigeration pressure switch can control high and low pressure. Its internal micro switch structure ensures good performance of the switch.

Features

Refrigeration pressure switch has an accuracy of up to ±0.2 bar and a service life of 200,000 times.
The pressure switch has good sealing performance, effectively prevents leakage, and improves the reliability of the product.
It adopts a shrapnel switch structure, stable performance, and ensures long-term reliable operation.
The pressure/differential pressure scale line interface is clear, providing a good visual experience, and is convenient for users to read quickly.

Specification

Technical parameters

Model	RDDLZ-LF5832		RDDLZ-LF5845
Model	Low pressure end	High pressure end	Low pressure end	High pressure end
Pressure adjustment range (Bar)	-0.2-7.5	8-32	2-12	8-45
Pressure difference (Bar)	0.7-4	4	1-4	7
Maximum working pressure (Bar)	17	35	17	48

Electrical parameters

Rated current (A) ated voltage (V)	125VAC	250VAC	24VDC
Full load current	20A	10A	8A
Instantaneous current	72A	72A	64A
Temperature	Ambient temperature: -20~65℃, medium temperature: -40~120℃
Medium	Refrigerant, Air, Water, Oil

Dimension (mm)

Details

Contact function

Applications

Tips: What is a refrigeration pressure switch?

A refrigeration pressure switch is a device used to monitor and control pressure changes in a refrigeration system. It can automatically start and stop the equipment according to the pressure in the system, thereby ensuring that the system operates within a safe and stable pressure range. Its main function is to protect the refrigeration system, avoid equipment damage caused by overpressure or underpressure, and ensure the efficient operation of the refrigeration system. Pressure switches are widely used in air-conditioning systems, refrigeration equipment, refrigerators, and other refrigeration applications, playing a key protection and control role.

This pressure switch usually has high-precision pressure control, which can accurately start or stop equipment such as compressors and condensers when the pressure changes. In addition, it has a sturdy structure and a long service life. Through excellent sealing and durable materials, the refrigeration pressure switch can operate stably in harsh working environments, ensuring the long-term reliability of the system.
