High Temperature Pressure Sensor For Steam/Fuel Oil

0 reviews • Write a review

from

$153.97

Ex Tax: $153.97

Stock: In Stock
Model: RDDLZ-PRES-P300G
Weight: 1.00
SKU: RDDLZ-PRES-P300G

Available Options

Power Supply

Output Signal

Pressure Type

Measuring Range

Thread of Pressure Connection

Electrical Connection

Quantity of Cooling Fins

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Pressure sensor for steam/fuel oil pressure measurement has optional output signal, such as 4-20mA/0-20mA/0-5V/1-5V/0-10V/RS485.

Application: Pressure sensor is widely used in process control, aerospace, automotive, medical equipment, HVAC and other fields.

Specification:

Model	RDDLZ-PRES-P300G
Weight	0.4kg
Measuring range *	-0.1~100MPa (-1~1000bar/-14~14503psi)
Pressure type*	Gauge pressure (standard) Contact us for absolute pressure, sealed pressure type (note that the measuring range for these two types must ≤1MPa)
Measure medium	Steam, fuel oil, high-temperature liquid (non-explosion proof area)
Power supply *	DC 12V, DC 24V, DC 12-36V
Output signal *	2 wire: 4-20mA, 0-20mA 3 wire: 0-5V, 1-5V, 0-10V RS485
Accuracy	±0.5%FS for 4-20mA, 0-10V, RS485; ±1%FS for 0-5V, 1-5V
Zero temperature drift	±0.03%FS/℃
Sensitivity temperature drift	±0.03%FS/℃
Long term stability	≤0.2%FS/year
Overload pressure	200%FS
Frequency response (-3dB)	5kHz~650kHz

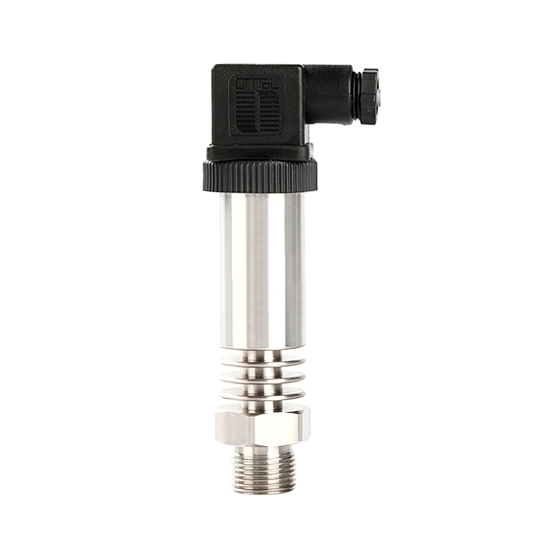

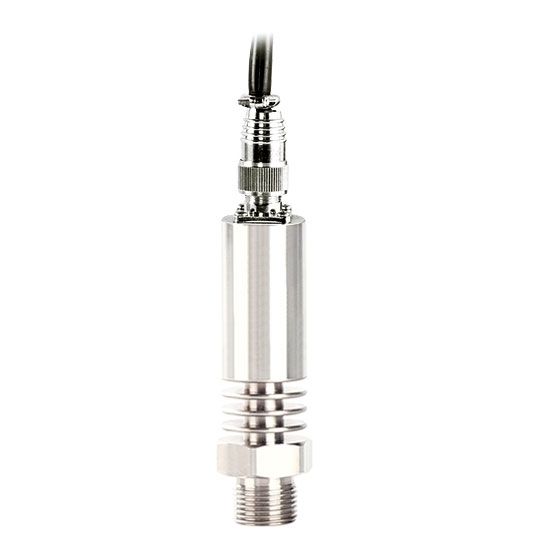

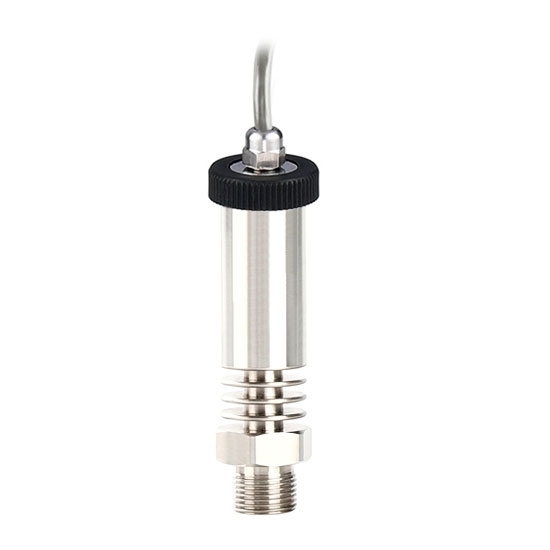

Electrical connection *	DIN connector type, M12 circular connector type, direct lead wire type
Thread of pressure connection *	G1/4, G1/2, 1/4NPT, 1/2NPT, M141.5, M201.5
Response time	＜10ms
Operating temperature	-40~+80℃ (-40~+176℉)
Medium temperature	-40~+250℃ (-40~+482℉)
Quantity of cooling fins (medium temperature) *	3 pieces (0-120℃/32~248℉), 5 pieces (0-180℃/32~356℉), 7 pieces (0-250℃/32~482℉) Note: For higher medium temperature (0-300℃/32~572℉), please contact us to customize a cooling pipe kits.
Material	Housing: 304 stainless steel, or 316L stainless steel (customizable) Fill fluid: silicon oil Pressure port: 304 stainless steel, or 316L stainless steel (customizable) Separating diaphragm: 304 stainless steel, or 316L stainless steel (customizable)
Cable length	2m
Protection class	IP65

Note: * denotes optional parameters, you can select every parameter in drop-down lists to finish your order.

Pressure sensor dimension drawing (unit: mm):

Pressure sensor wiring diagram:

Pressure sensor installation diagram (unit: mm):

Tips: Accuracy of pressure sensor
Accuracy is an important performance index of pressure sensor, which is an important link on accuracy measurement of whole measuring system. The higher the accuracy of pressure sensor, the more expensive it is. Therefore, as long as the accuracy of pressure sensor can be satisfied the accuracy requirements of the whole measurement system. That will be fine. This allows choosing cheaper and simpler sensors among many ones that serve for the same purpose.
For some special use occasions, it is unable to choose a suitable sensor in the market. So it is necessary to design and manufacture the sensor by oneself. You can contact us RDDLZ Automation and send us your requirements. We will try our best to produce sensors that can meet your requirements.
