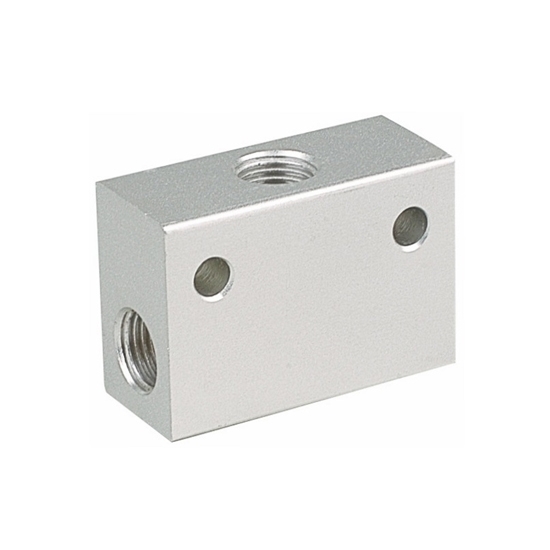

Pneumatic shuttle valve is a type of valve used in pneumatic systems to control the direction of airflow. It is designed to allow the passage of compressed air from one inlet to one of two outlets. The key feature of this shuttle valve is its ability to switch between two output ports based on the pressure applied to its input ports.

Specification

• Model: RDDLZ-ST-01
• Working Medium: Air
• Effective Sectional Area: 7.5mm²
• Joint Pipe Port: G1/8 inch
• Working Pressure Range: 0~1.0MPa
• Operating Temperature Range: 0~60℃

Dimension (Unit: mm)

Tips: What is the purpose of a pneumatic shuttle valve in a pneumatic circuit?

A pneumatic shuttle valve in a pneumatic circuit serves the crucial function of directing compressed air flow between two separate paths. This valve contains multiple ports and a shuttle mechanism that can block or permit airflow based on the pressure differentials within the system. When one inlet has a higher pressure than the other, the shuttle valve redirects the airflow to the lower pressure path, allowing efficient and controlled pneumatic actuation. This is particularly useful in applications where redundancy or alternate pathways are necessary for system reliability. The shuttle valve ensures seamless transition between different functions within a pneumatic circuit, enhancing the flexibility and responsiveness of automated systems. Overall, the purpose of a pneumatic shuttle valve is to manage and regulate the direction of compressed air flow, facilitating optimal performance and reliability in pneumatic applications.
