Fanless Industrial Touch All In One PC

0 reviews • Write a review

from

$1,278.41

Ex Tax: $1,278.41

Stock: In Stock
Model: RDDLZ-IPC-A104
Weight: 1.00
SKU: RDDLZ-IPC-A104

Available Options

Usable System

RAM/ Hard Disk Capacity

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Industrial PC Features

Intel Celeron J1900 quad core 2.0GHz CPU and Intel chipeset
High quality pure aluminum with fanless and embedded design
64MB SMT Flash ROM, support wake on lan
DC-IN 12V/12.5A power adapter
Support Win7/ win10/ Linux (Centos or Ubuntu) system
1*USB3.0+3*USB2.0+1*VGA+1*HD+1*RTL8111E 1000 Lan+1*3Pin Phoenix terminal

Specification

Model	RDDLZ-ITPCA104
Material of Case	High-quality pure aluminum
CPU	Adopt Intel Celeron J1900 quad core 2.0 GHz
Chipeset	Intel CPU integrated chipeset
RAM	Support 1*DDR3L 1333/1600 MHz, Max 8GB
Display	1VGA, 1HD, 1*LVDS (support synchronous and asynchronous dual display)
Storage	1*MSATA
Speaker	2*8Ω 2W speaker
Network	1*RTL8111E 1000 Lan
Usable system	Win7/ win10/ Linux (Centos or Ubuntu) system
LCD Screen	Screen Size: 10.4 inch TFT-LDD
	Sreen Ratio: 4:3
	Resolution: 1024*768
	Brightness: 350 cm/m2
	Viewing angle: Full view
I/O	1*USB3.0
	3*USB2.0
	1*DC-IN 12V
	1*RTL8111E 1000 Lan
	1*VGA
	1*HD
	2*RS232 COM
	1*Line Out
	1*Mic
	1*3Pin Phoenix terminal
Touch Screen	High sensitive resistive touch screen (single touch), Lifespan up to 50 million times
BIOS	64Mb Flash ROM
Power Supply	DC 12V (DC 9~36V input is optional)
Operation Temp	-10°C ~ 50°C
Humidity	0% - 95% relative humidity, non-condensing
Dimension	27121252 mm
Weight	2.3 Kg

Note:
*Packing list included PC + Power Adapter + Power Cord + CD Driver.
*RAM, SSD, HDD, WiFi, Bluetooth are optional, if necessary, please contact customer service for your configuration.
*Need more fanless industrial PCs models information, please check the Model Brochure.

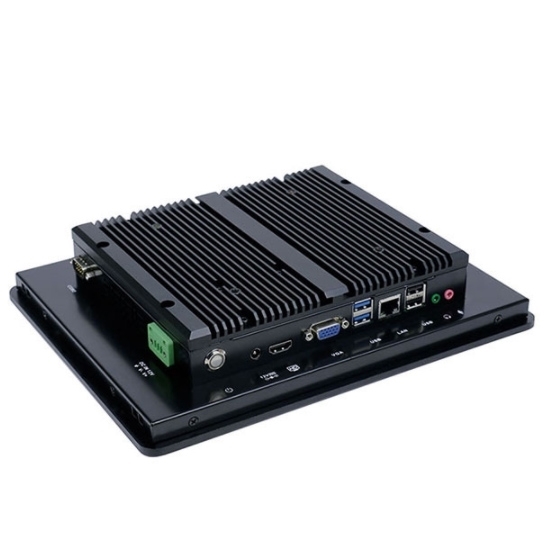

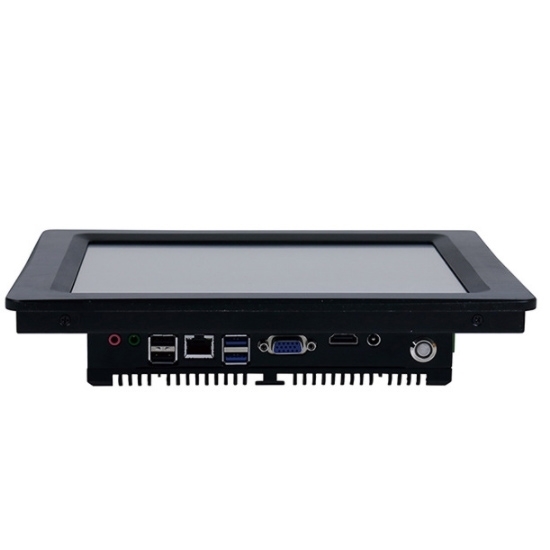

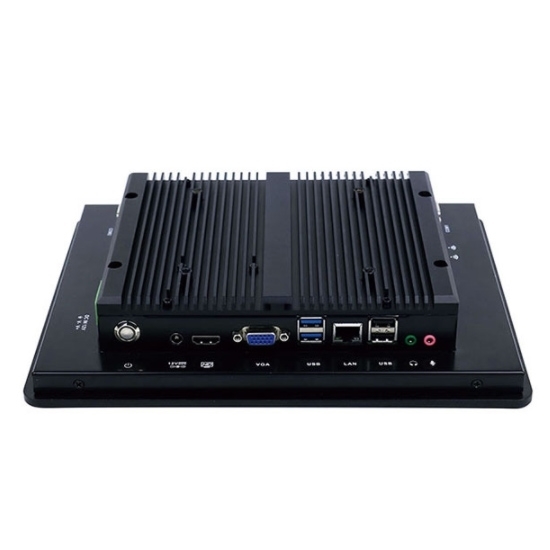

Industrial PC Rich Interfaces

Dimension
Tips: Electromagnetic shielding of small industrial PC chassis
When the host computer is working, the motherboard, CPU, memory and various board cards all generate a large amount of electromagnetic radiation. If they are not protected, they will cause some damage to the human body. At this time, the chassis becomes an important part of shielding electromagnetic radiation and protecting health. Defenders and well-shielded chassis can also effectively block external radiated interference and ensure that internal computer components are not affected by external radiation. In order to increase the cooling effect of small industrial PC chassis, the necessary parts of the chassis will be perforated, including the side holes of the chassis, pumping air fan inlet holes, exhaust fan outlet holes, etc., so the hole shape must meet the technical requirements that can block radiation. The openings in the chassis should be as small as possible, and as far as possible, round holes with strong radiation blocking ability must be used.
