Electromagnetic Relay, DPDT, 12/24/48/110/220V

0 reviews • Write a review

from

$55.99

Ex Tax: $55.99

Stock: In Stock
Model: RDDLZ-EMR-P30F
Weight: 1.00
SKU: RDDLZ-EMR-P30F

Available Options

Coil Voltage(V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

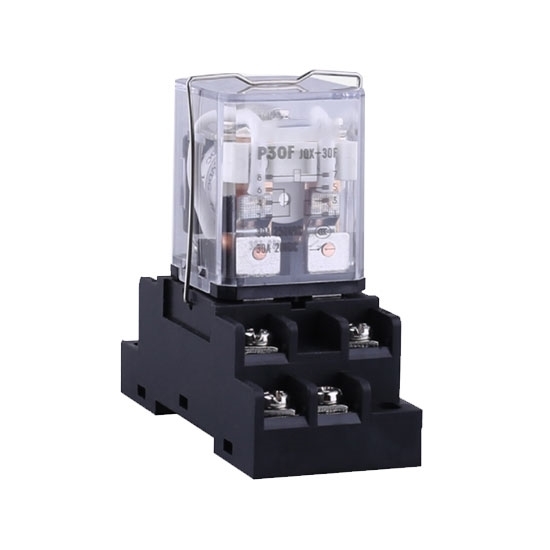

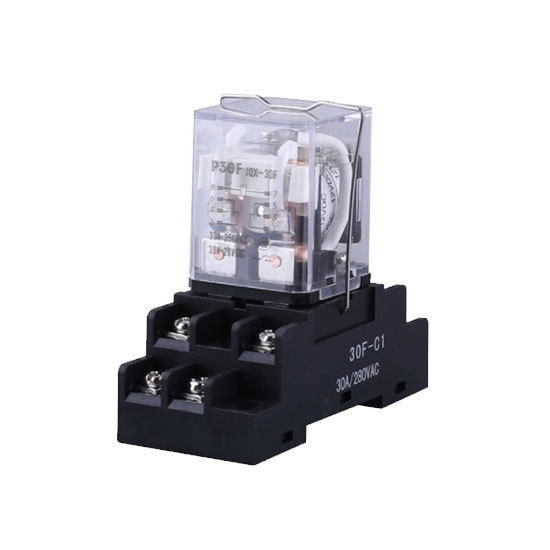

Compact electromagnetic relay with 8 pins and DPDT contact form, is widely applied in electronic equipment, communication equipment, automatic control system, instrument and meters, etc.

Specification

Basics	Model		RDDLZ-JQX-30F (Relay with Socket)
	Dimension (LWH)		85×37×70mm
	Weight		30g
	Ambient Temperature		-25℃~+55℃
	Terminal Type		Plug-in
	Number of Pins		8
Technical Parameters	Contact Form		DPDT (2 Form C, 2NO + 2NC)
	Contact Material		Silver alloy
	Contact Capacity (Resistive load)		30A/28V DC, 30A/250V AC
	Coil Power		DC 2W, AC 4VA
	Coil Voltage (Optional)		12V DC, 24V DC, 48V DC, 24V AC, 110V AC, 220V AC
	Pick-up Voltage at 23℃		≤38.40V DC, 88V AC
	Drop-out Voltage at 23℃		≤4.8V DC, 36V AC
	Contact Resistance @6V DC 1A		≤100MΩ
	Dielectric Strength	Between open contact	1200V AC 50Hz/1min
		Between coil & contact	2500VAC 50Hz/1min
	Leakage current		≤1mA
	Insulation Resistance (MΩ)		1000MΩ at 500V DC

Connection Diagram

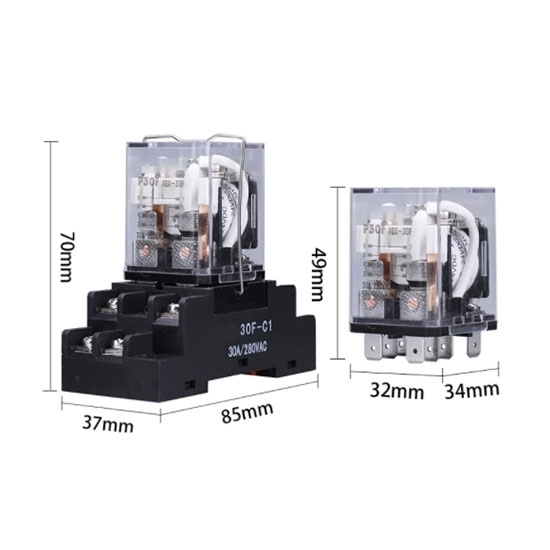

Installation Dimensions

Details

Tips: Difference between electromagnetic relay and AC contactor

The electromagnetic relay is a kind of voltage relay with many contacts and large current capacity. It switches on or off to control circuit according to the change in some input signal. The action time is not greater than 0.05s. When the number of contacts or capacity of other relays is insufficient, the electromagnetic can expand the contact capacity, which plays an intermediate conversion and amplification role. But the AC contactor is a kind of main circuit automatic control appliance used for frequently switching on or off a load.
