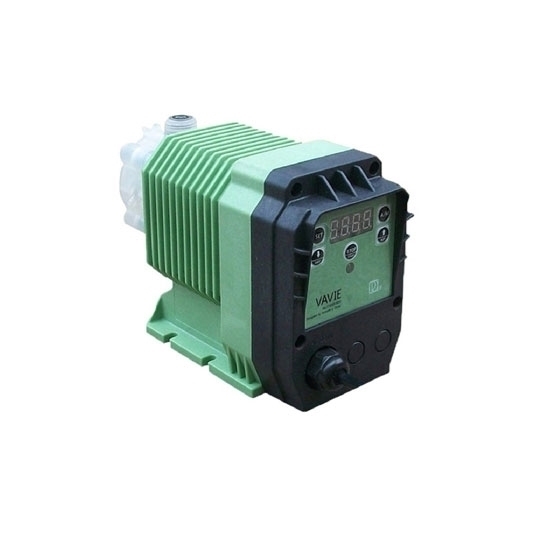

Diaphragm Dosing Pump, 5.04 L/h Flow

Diaphragm Dosing Pump, 5.04 L/h Flow
Diaphragm Dosing Pump, 5.04 L/h Flow
0 reviews • Write a review
from
$289.86
Ex Tax: $289.86
  • Stock: In Stock
  • Model: RDDLZ-DP-V05006
  • Weight: 1.00
  • SKU: RDDLZ-DP-V05006

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Diaphragm solenoid metering pump flow 5.04 L/h, pressure 6.2 bar, 16 watt, the outlet flow of the pump can be realized according to the speed of the adjustment stroke frequency.

5.04 L/h Diaphragm Metering Pump Features

  • Green screen digital display, brand new circuit design, more stable operation
  • Stroke frequency button adjustment
  • New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
  • Designed according to IP65 protection level
  • ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
  • A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
  • Optional low liquid level stop pump and alarm function
  • Added diaphragm damage protection and alarm function
  • Optional external pulse signal or 4-20mA analog signal.

Diaphragm Dosing Pump Specification:

ModelRDDLZ-DP-V05006
Power16W
Flow5.04 L/h
Pressure6.2 Bar
Stroke160 N/m
Wet Suction Range1.5m
Dosing Pump Tubing4 x 6mm
InterfaceDN 15mm
Power Supply220V AC, 50/60Hz
Repeated Measurement Accuracy-5%~5%
Allowable Ambient Temperature5℃~180℃ (PTFE pump head ),
Allowable Medium ViscosityHigh viscosity pump head ≤ 1000 mPA.s
Particle Diameter≤0.15mm
Protection ClassIP55
Insulation ClassF
Weight2.9 kg
Warranty Period12 Months

Digital Dosing Pump Dimension (unit: mm)

Why use metering pumps for fluid transport equipment?

In the transmission of fluid need to measure how much need to use metering pump because the metering pump is a reciprocating displacement pump, measurement accuracy <1%, so most of the use of metering pump metering equipment. In addition, high pressure to use hydraulic metering pump, suitable for high pressure and small flow occasions. Diaphragm metering pump without leakage, suitable for transporting corrosive, radioactive and other liquid materials, can be used in different industries of fluid and mixed art widely can be used in any place.
