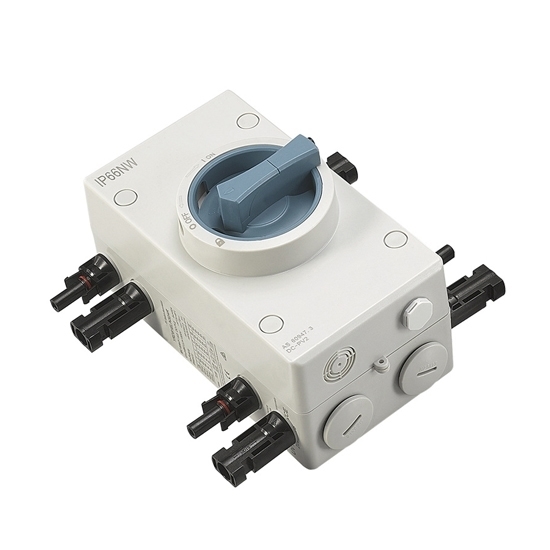

32 Amp 1000V DC Isolator Switch For Solar PV, 4 Pole

0 reviews • Write a review

from

$77.33

Ex Tax: $77.33

Stock: In Stock
Model: RDDLZ-DCIS-32
Weight: 1.00
SKU: RDDLZ-DCIS-32

Available Options

Wiring Method

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cost-effective DC isolator switch manufacturer direct sale online. It is a solar PV isolating switch, available with 4 pole, 10A-32A, 1000V to 1200V DC voltage, CE/TUV/SAA certificate, IP66 waterproof level and 3 different wiring methods.

Specifications

Model: RDDLZ-YRDS1EL/S32
Number of Poles: 4 Pole
Rated Voltage: 1000V DC to 1200V DC
Rated Current: 10A-32A
Dimension: 108X101X166mm
Waterproof Grade: IP66
Breaking Capacity: 1000/1700
Certificate: CE/TUV/SAA
Implementation Standard: IEC60947-3
Working Temperature: -25℃--+85℃
Insulation Voltage: DC 1500V
Connection Type: M20 M25

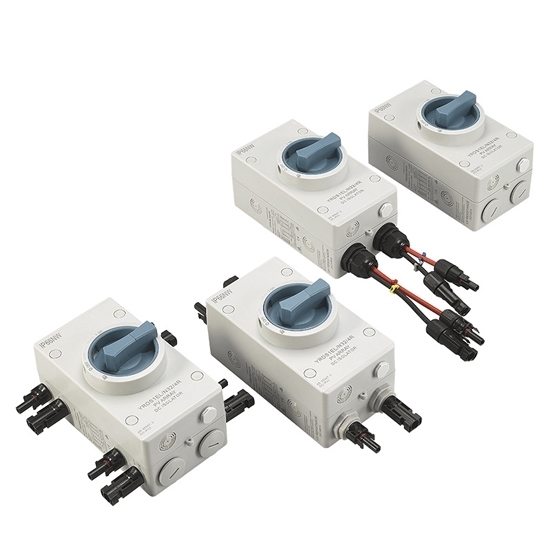

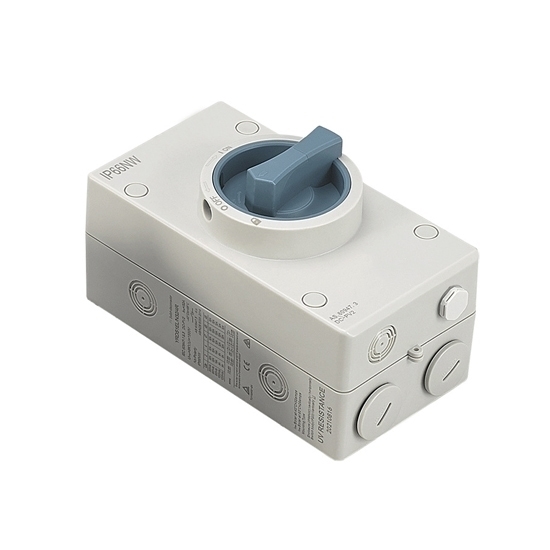

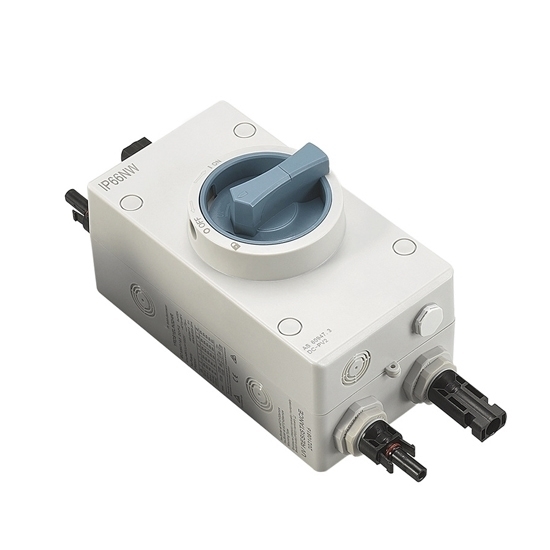

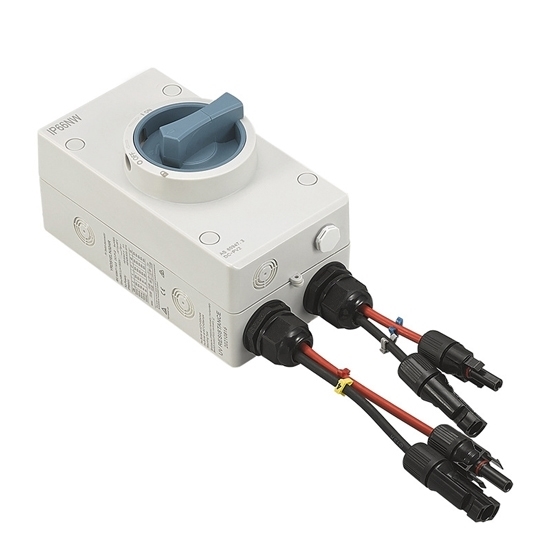

Wiring Modes: No Wiring (Default), Top in and Bottom out Wiring, Bottom in and Bottom out Wiring, Left and Right Wiring

Wiring

Applications

Tips: What is a DC isolator switch?

A DC isolator switch is a device used to disconnect or isolate direct current (DC) electrical circuits. It allows users to safely interrupt the flow of electricity for maintenance, safety, or protection purposes. Typically used in solar power systems, battery storage systems, and other DC applications, the switch ensures safe and reliable operation by providing a clear means to cut off power from the circuit. It often features a robust design with high insulation and breaking capacity to handle the specific demands of DC circuits.
