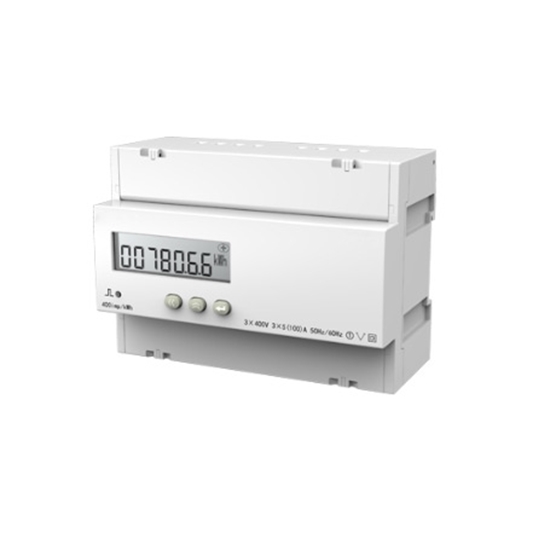

DIN Rail Mounted 3 Phase LCD Display Digital Energy Meter

0 reviews • Write a review

from

$610.55

Ex Tax: $610.55

Stock: In Stock
Model: RDDLZ-DEM-002
Weight: 1.00
SKU: RDDLZ-DEM-002

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Digital Electric Energy Meter Features

3 phase 3 wire 3x400V AC
Class 1 accuracy for active energy
5(100)A direct input currnt or 1.5(6)A via CT access
1 active energy pulse output
RS485 communication interface, support Modbus-RTU protocol
Voltage/Current/Active power/Power factor/Frequency measurement
Compact design, DIN rail mounting

Digital Electric Energy Meter Description

Model		RDDLZDSS1946
Accuracy Grade		Grade-1 accuracy for active energy
Phase		Three phase (3 wire)
Rated Voltage		3x400V AC
Current Input		Direct input: 5(100)A / Via CT input: 1.5(6)A
Frequency		50/60Hz
Display Mode		LCD display
Display Digits		7
Energy Pulse		1 active energy pulse output, pulse width (80±20%) ms
Measurement Range		Voltage/Current/Active power/Power factor/Frequency
RS485 Communication Interface		Modbus-RTU protocol, baud rate up to 9600bps
IP Protection		IP54 (panel) /IP20 (case)
Certificate		CE/ ISO/ MID
Warranty Period		12 months
Dimension		1266690mm
Weight		2.5kg
Installation		Din rail 35mm
Work Temperature		-10℃~55℃
Storage Temperature		-25℃~70℃

Digital Electric Energy Meter Dimension

(Unit=mm)

Digital Electric Energy Meter Wiring

Tips: Features of DIN rail mounted energy meter

1. The DIN rail mounted energy meter is a minitype energy meter of a new generation. It is used for 380V/220V terminal illuminating system. It adopts the standard DIN 35mm DIN-rail installation, structure modularization design, with its width just matching the miniature circuit breaker, thus being convenient for being installed in the illumination box.

2. The energy meter adopts an LCD display to measure electrical energy and other electrical parameters. It can set parameters such as clock and rate period, and has the function of power pulse output. The RS485 communication interface can be used to exchange data with the host computer.

3. The DIN-rail mounted energy meter has the advantages of small size, high accuracy, good reliability and convenient installation. Its performance index conforms to the various technical requirements of the national standard GB/T17215, GB/T17883 and power industrial standard DL/T614 to the energy meter, thus being suitable for the subentry measuring of the governmental organizations and large-scale public constructions to the power, and the power management and assessment in enterprises and public institutions.
