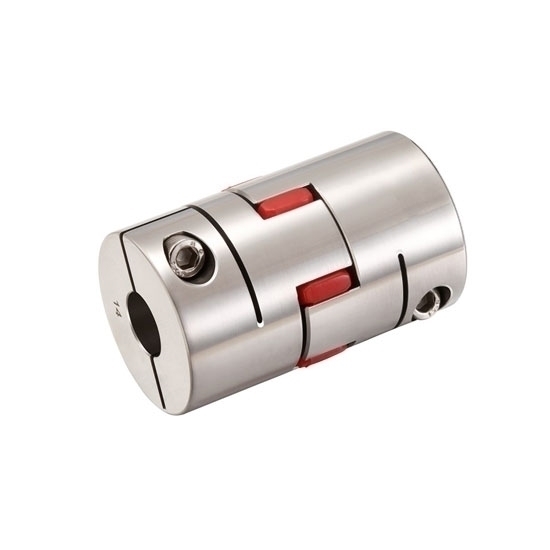

Curved Jaw Coupling, 80 X 114mm

Curved Jaw Coupling, 80 X 114mm
Curved Jaw Coupling, 80 X 114mm
0 reviews • Write a review
from
$328.79
Ex Tax: $328.79
  • Stock: In Stock
  • Model: RDDLZ-SC-GFCG-80114
  • Weight: 1.00
  • SKU: RDDLZ-SC-GFCG-80114

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This curved jaw coupling comes with a 80mm outer diameter and 114mm length, and is engineered for excellence. Its impressive 270 Nm rated torque capacity allows for heavy-duty applications, and it can handle speeds of up to 8600 RPM with ease.

Specification

  • Model: RDDLZ-SC-GFCG-80114
  • Rated Torque: 270 Nm
  • Eccentricity Allowed: 0.02mm
  • Allowable Declination: 1∠°
  • Allowable Axial Deviation: ±0.80mm
  • Allowable Speed: 8600rpm
  • Static Torsional Stiffness: 3600 Nm/rad
  • Moment of Inertia: 1.9 x 10-2 Nm
  • Bushing Material: 304 Stainless steel
  • Rubber Block Material: Polyurethane imported from Germany
  • Surface Treatment: Polished
  • Weight: 1850g
  • Certificate: ISO9001, REACH, RoHS
  • Warranty: 12 Months

80 x 114mm Flexible Jaw Coupling Dimension (unit: mm)

  • d1/d2 Inner Diameter Size: 19-20-22-24-25-28-30-32-35-38-40-45
  • ΦD: 95
  • L: 126
  • LF: 73.2
  • LP: 24.0
  • M: M8
  • Tightening Torque: 15 Nm

Tips: What are the considerations for using flexible jaw couplings in highly corrosive environments?

  1. Material Selection: Choose materials like stainless steel or non-corrosive alloys for the coupling to resist corrosion.
  2. Seal Protection: Ensure proper sealing to prevent corrosive agents from entering the coupling.
  3. Regular Inspection: Frequent inspections to detect corrosion and wear early.
  4. Lubrication: Use appropriate lubricants to protect against corrosion.
  5. Maintenance: Implement a maintenance schedule to address any issues promptly.
