100~800mm Ball Screw Driven Linear Slide, Ф12mm

0 reviews • Write a review

from

$747.54

Ex Tax: $747.54

Stock: In Stock
Model: RDDLZ-LS-80012
Weight: 1.00
SKU: RDDLZ-LS-80012

Available Options

Stroke

Motor Position

Servo Motor

Ball Screw Lead

Home Sensor

Limit Sensor

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

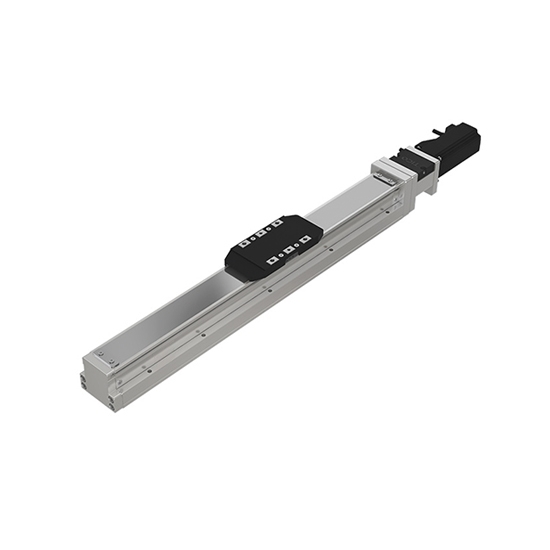

The ball screw driven linear slide is a motorized linear guide rail, which is suitable for 100W motor, optional stroke 100mm~800mm, ball screw diameter 12m, screw path 5/10/20mm. It is a linear motion system with optional configuration of servo motor and sensor.

Basic Specification

Model		RDDLZ-ATH5
Stroke		100mm~800mm (100mm pitch)
Ball Screw Diameter		12mm
Repeatability Accuracy		± 0.01mm
Ball Screw Lead		5mm	10mm	20mm
Max. Speed		250 mm/s	500 mm/s	1000 mm/s
Max. Payload	Horizontal	30 kg	15 kg	10 kg
	Vertical	10 kg	5 kg	2.5 kg
Rated Thrust		341 N	170 N	85 N
Matching Servo Motor Power*		100W
Coupling		7*8mm
Home Sensor	Outside	EE-SX674 (NPN)

*Note: The servo motor is not included in packing list, if you need one, please contact us.

Speed Chart

Model	Body Width (mm)	Ball Screw Lead (mm)	Max. Payload (kg)		Max. Speed (mm/s)	Standard stroke and recommended use of the highest speed (mm/s)
Model	Body Width (mm)	Ball Screw Lead (mm)	Horizontal	Vertical	Max. Speed (mm/s)	100	200	300	400	500	600	700	800
RDDLZ-ATH5	54	5	30	10	250	-	-	-	-	-	250	200	150
		10	15	5	500	-	-	-	-	-	500	400	300
		20	10	2.5	1000	-	-	-	-	-	1000	800	600

Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

Features

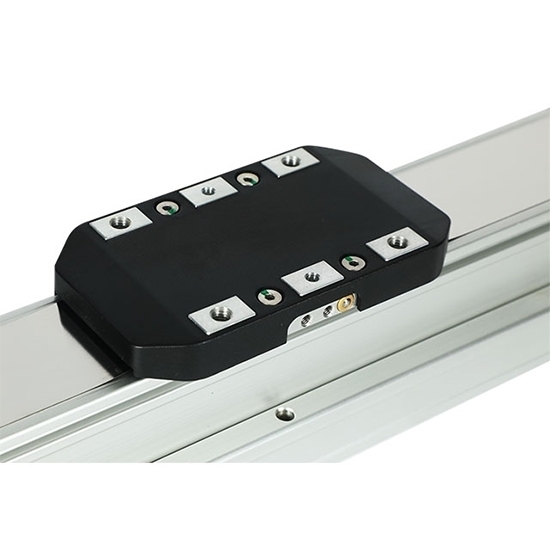

The ball screw linear slide table is a highly integrated linear motion system. The aluminum body is integrated with guide rail, and the slide block and the slide table are integrated.
Linear slide guide rail is compact, lightweight, space-saving and high-load.
The linear slide system is made of U-shaped high-strength aluminum alloy. The built-in stainless steel guide rail and the base are integrally formed. The guide rail groove adopts 2 rows 45° contact angles, providing equal load capacity in 4 directions. High precision and high rigidity can be achieved through proper steel ball preload.
Fully sealed design, low dust generation during operation, so that the whole linear motion system can meet the requirements of dust-free level.
The linear slide table of this series adopts ball screw, with high transmission repeatability, up to ±0.005.

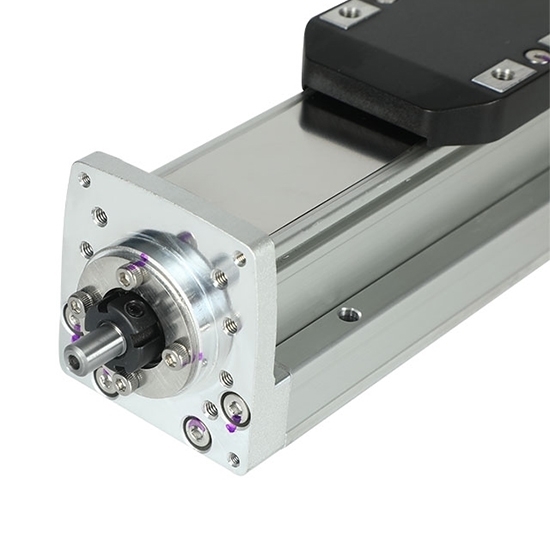

Motor Mounting Dimensions (Unit: mm)

Motor Power	Motor Size	Shaft Diameter
100W	38mm	8mm
