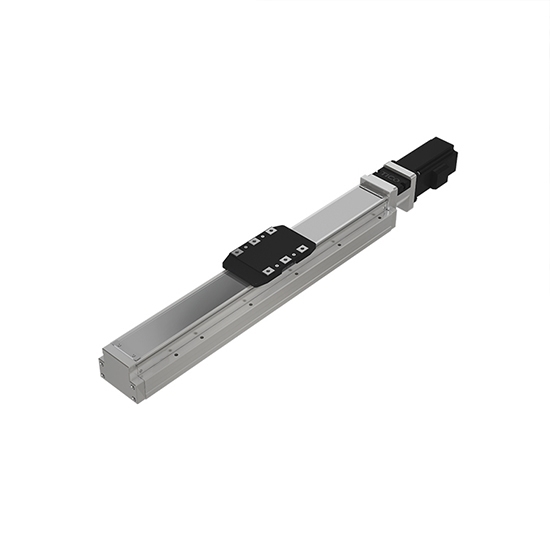

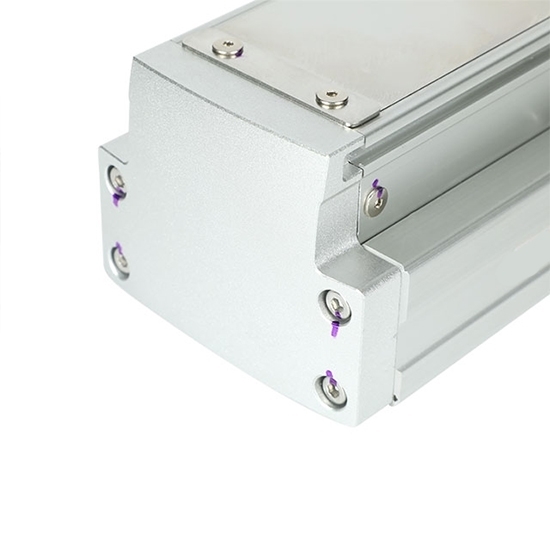

100~1050mm Ball Screw Driven Linear Slide, Ф16mm

0 reviews • Write a review

from

$799.38

Ex Tax: $799.38

Stock: In Stock
Model: RDDLZ-LS-105016
Weight: 1.00
SKU: RDDLZ-LS-105016

Available Options

Stroke

Motor Position

Servo Motor

Ball Screw Lead

Home Sensor

Limit Sensor

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Linear slide table is driven by ball screw of 16mm diameter, optional stroke 100mm~1050mm, screw path 5/10/20mm. The linear motion system integrates guide rail and sliding block. For better control, you can buy a servo motor to match the linear slide system.

Basic Specification

Model		RDDLZ-ATH8
Stroke		100mm~1050mm (100mm pitch)
Ball Screw Diameter		16mm
Repeatability Accuracy		± 0.01mm
Ball Screw Lead		5mm	10mm	20mm
Max. Speed		225 mm/s	450 mm/s	900 mm/s
Max. Payload	Horizontal	50 kg	30 kg	18 kg
	Vertical	15 kg	8 kg	3 kg
Rated Thrust		683/1388 N	341/694 N	174/347 N
Matching Servo Motor Power*		200W
Coupling		1011 (14)mm / 1014mm
Home Sensor	Outside	EE-SX674 (NPN)

*Note: The servo motor is not included in packing list, if you need one, please contact us.

Speed Chart

Model	Body Width (mm)	Ball Screw Lead (mm)	Max. Payload (kg)		Max. Speed (mm/s)	Standard stroke and recommended use of the highest speed (mm/s)
Model	Body Width (mm)	Ball Screw Lead (mm)	Horizontal	Vertical	Max. Speed (mm/s)	100	200	300	400	500	600	700	800	900	1000	1050
RDDLZ-ATH8	82	5	50	15	225	-	-	-	-	-	-	-	225	175	125	100
		10	30	8	450	-	-	-	-	-	-	-	450	350	250	200
		20	18	3	900	-	-	-	-	-	-	-	900	700	500	400

Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

Features

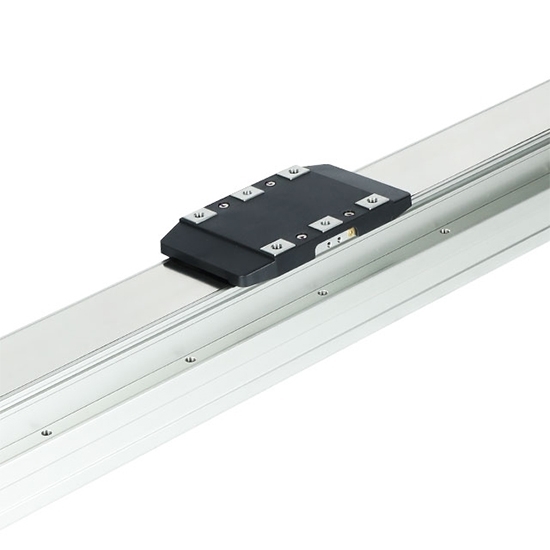

The ball screw linear slide table is a highly integrated linear motion system. The aluminum body is integrated with guide rail, and the slide block and the slide table are integrated.
Linear slide guide rail is compact, lightweight, space-saving and high-load.
The linear slide system is made of U-shaped high-strength aluminum alloy. The built-in stainless steel guide rail and the base are integrally formed. The guide rail groove adopts 2 rows 45° contact angles, providing equal load capacity in 4 directions. High precision and high rigidity can be achieved through proper steel ball preload.
Fully sealed design, low dust generation during operation, so that the whole linear motion system can meet the requirements of dust-free level.
The linear slide table of this series adopts ball screw, with high transmission repeatability, up to ±0.005.

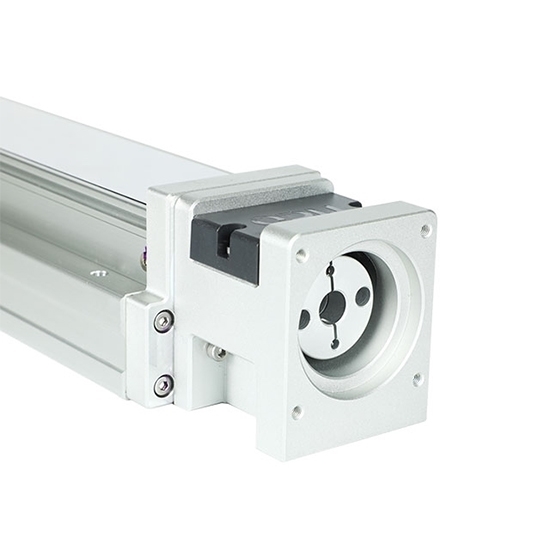

Motor Mounting Dimensions (Unit: mm)

Motor Power	Motor Size	Shaft Diameter
200W	60mm	11mm
