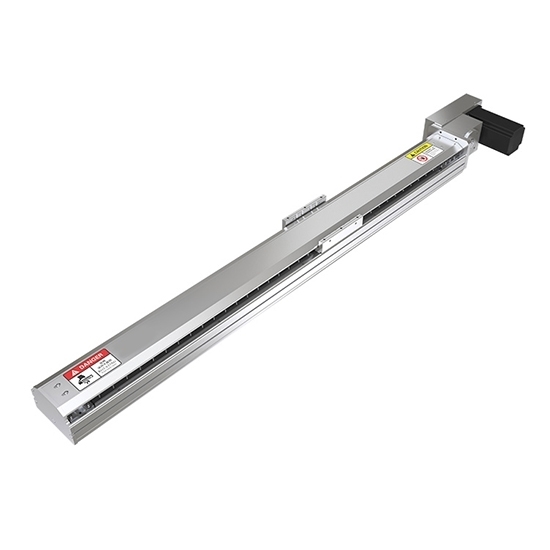

100W 100~1800mm Belt Driven Linear Slide

0 reviews • Write a review

from

$1,022.46

Ex Tax: $1,022.46

Stock: In Stock
Model: RDDLZ-LS-1800100
Weight: 1.00
SKU: RDDLZ-LS-1800100

Available Options

Short Description

Stroke

Motor Position

Sensor Switch

Servo Motor

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The linear motion system integrates linear slide table, guide rail, slide block, motor, sensor and coupling. Optional stroke 100mm~1800mm, maximum speed 2000mm/s, belt width 20mm, lead range 40mm, suitable for 100W servo motor (optional).

Basic Specification

Model		RDDLZ-GB100
Stroke		100mm~1800mm (100mm pitch)
Belt Width		20mm
Repeatability Accuracy		± 0.04mm
Lead Range		40mm
Max. Speed		2000 mm/s
Max. Payload	Horizontal	10 kg
	Vertical	-
Rated Thrust		61 N
Matching Servo Motor Power*		100W
Coupling		1214 / 1219 mm
Home Sensor	Outside	EE-SX672 (NPN)
	Built-in	EE-SX674 (NPN)

*Note: The servo motor is not included in packing list, if you need one, please contact us.

Speed Chart

Model	Body Width (mm)	Lead Range (mm)	Max. Payload (kg)		Max. Speed (mm/s)	Standard stroke and recommended use of the highest speed (mm/s)
Model	Body Width (mm)	Lead Range (mm)	Horizontal	Vertical	Max. Speed (mm/s)	200	400	600	800	1000	1200	1400	1600	1800
RDDLZ-GB100	100	40	10	-	2000	-	-	-	-	-	-	-	-	2000

Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

Features

The linear slide guide rail adopts synchronous belt transmission, high speed, equipped with servo motor up to 2000mm/s, repeat accuracy ±0.04, especially suitable for high-speed linear motion requirements.
The belt driven linear slide is a semi-enclosed linear motion system, which is mainly composed of aluminum body, guide rail, diagonal bearing holder, cover plate, slide block and other components.
Linear slide guide rail uses corrosion-resistant, high-strength aluminum alloy as the base. A high-precision linear guide pair is installed in the base. The aluminum alloy motion base is installed on the slide block. The middle part of motion seat is connected with the nut of ball screw.
Motor of the motorized linear slide drives the sliding table to reciprocate through the ball screw rod.
The diagonal bearing holder ensures the repeatability and positioning accuracy of motion seat. The aluminum alloy cover is installed on the motion base for overall protection.

Motor Mounting Dimensions (Unit: mm)

Motor Power	Motor Size	Shaft Diameter
100W	38mm	8mm
