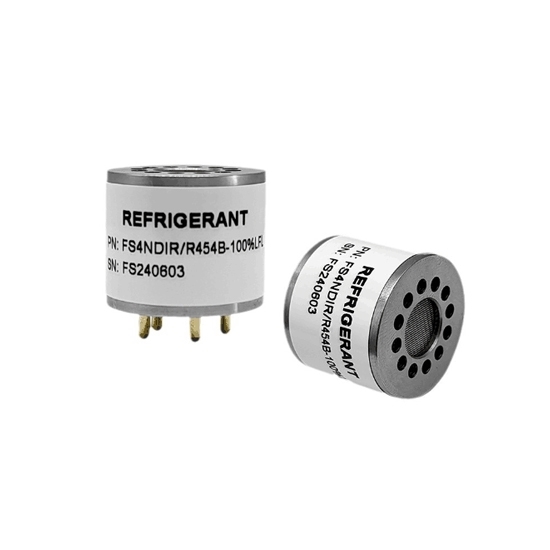

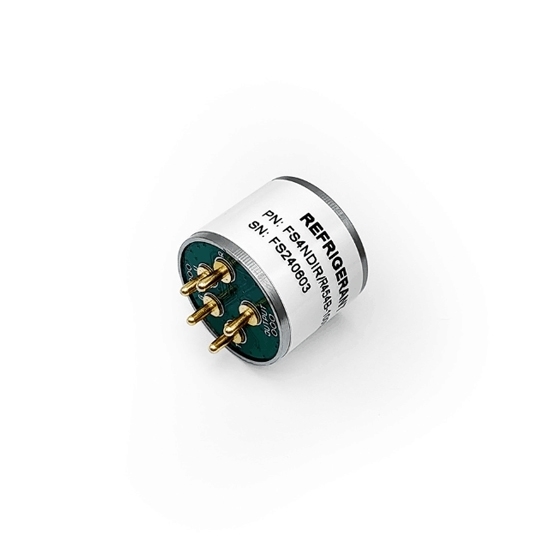

NDIR Refrigerant Gas Sensor, 0~100%LFL

0 reviews • Write a review

from

$195.55

Ex Tax: $195.55

Stock: In Stock
Model: RDDLZ-GS-NDIR
Weight: 1.00
SKU: RDDLZ-GS-NDIR

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This HFC sensor uses NDIR technology to detect 0~100% LFL with 1% resolution and ±3.75% accuracy. It features fast T90 ≤30s response, low power consumption, and a 10-year lifespan, ideal for refrigerant leak detection and HVAC systems.

Specification

Model	RDDLZ-FS4NDIR/R454B
Detection Type	Hydrofluorocarbon (HFC)
Detection Principle	Non-Dispersive Infrared Absorption (NDIR)
Detection Range	0~100% LFL (100% LFL = 11.49% Vol)
Resolution	1% LFL
Accuracy	±3.75% LFL
Operating Voltage	DC 3.6V~5.0V
Operating Current	<85mA (@5V power supply)
Response Time	T90 ≤30s
Detection Frequency	Data updated every second (default)
Default Output Mode	Serial Port
Reserved Output Mode	DAC (0.4V~2V) (default off)
Lifespan	10 years (in air)
Operating Temperature	-20°C~70°C
Operating Humidity	0~95% RH (non-condensing)
Storage Temperature	-30°C~60°C
Storage Humidity	0~95% RH (non-condensing)
Pressure Range	75 kPa~120 kPa

Feature

Low Power Consumption: Designed for low power usage, ensuring extended operational lifespan.
Strong Anti-Interference Capability: Excellent resistance to interference, equipped with temperature compensation for stable performance.
Moisture Resistance: Effectively resists water vapor interference and is non-toxic for long-term reliability.
Linear Output: Provides exceptional linear output for precise and consistent measurements.
Long Service Life: Durable design with a lifespan of up to 10 years, minimizing replacement needs.
High Accuracy: Dual-channel design ensures high precision and stability with no drift over time.

Size (Unit: mm)

Working Principle

Application

Tips: Why is this sensor suitable for HVAC monitoring and refrigerant leak detection?

This refrigerant gas sensor is ideal for HVAC monitoring and refrigerant leak detection due to its precise NDIR technology, which accurately measures hydrofluorocarbon (HFC) concentrations while remaining unaffected by oxygen levels or moisture. Its 0~100% LFL detection range, 1% resolution, and fast T90 ≤30s response ensure quick identification of even small leaks, preventing inefficiencies, environmental harm, and safety risks. Designed to operate in a wide range of temperatures (-20°C to 70°C) and humidity (0~95% RH), the sensor is reliable in diverse environments. Its low power consumption (<85mA) supports continuous monitoring with minimal energy costs, while the 10-year lifespan and compatibility with serial port and DAC outputs make it easy to integrate into automated HVAC systems, enhancing safety and efficiency.
