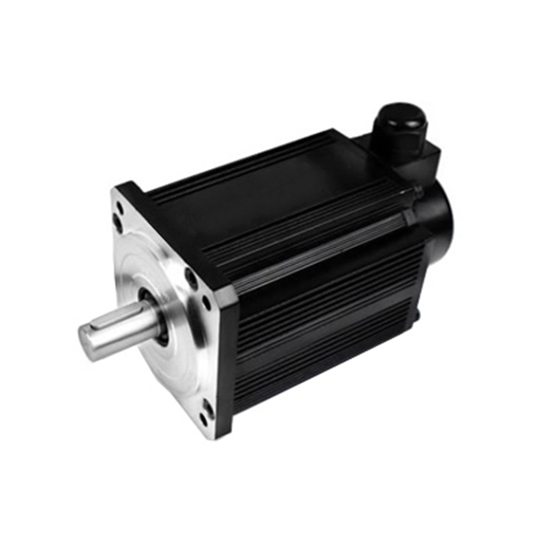

RDDLZ customized 24V, 48V, 72V, 96V brushless DC electric motor combines with controller at competitive price. Adding brake option and matching gearbox are provided. 1kW BLDC motor features 130 mm square flange size, 1000 low rpm rated speed, 10 Nm high torque to meet your project's needs. RDDLZ recommends buying a set of BLDC motors, which is an economical solution in the long run.

Basic Specifications

• Model: RDDLZ-130WDM10010 (Click to see the motor drawings)
• Matched Controller Model: RDDLZ-KBL / RDDLZ-KEB (Click to the product page)
• Rated Power: 1KW
• Rated Voltage: 24V DC / 48V DC /72V DC /96V DC (Optional)
• Rated Current: 51.4A at 24V, 25.7A at 48V, 17.1A at 72V, 12.8A at 96V
• Phase: 3 phase
• Holding Torque: 10 Nm
• Peak Torque: 30 Nm
• Rated Speed: 1000 rpm
• No-load Speed: 1200 rpm
• Square Flange Size: 130 mm
• Weight: 12 kg

Technical Parameters

• Working Efficiency: 85%
• Number of Poles: 4 pairs of poles (8 poles)
• Brake Apparatus Voltage: 24V DC/ 48V DC, (If 24V voltage is not connected, the motor brake)
• Brake length: 40-50mm
• Insulation Grade: F
• Protection Grade: IP65
• Working Temperature: 10℃~+50℃
• Humidity: ≤90% (no condensation)
• Motor Lead Length: 30 cm, if you buy a kit (motor+controller), an extra 1 meter of wire shall be provided.
• Certificate: CE, RoHS, ISO/TS16949

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of RDDLZ BLDC Motors can be customized.

Features

1. High performance and low consumption
   1000 watt brushless DC motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
2. Wide application range and good control effect

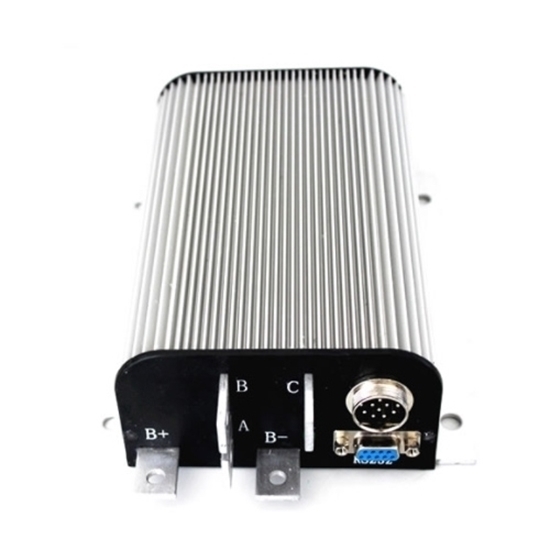

   BLDC motor works with a matching controller (RDDLZ-KBL) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5VDC analog signal to adjust the speed.
3. Wide control speed torque range

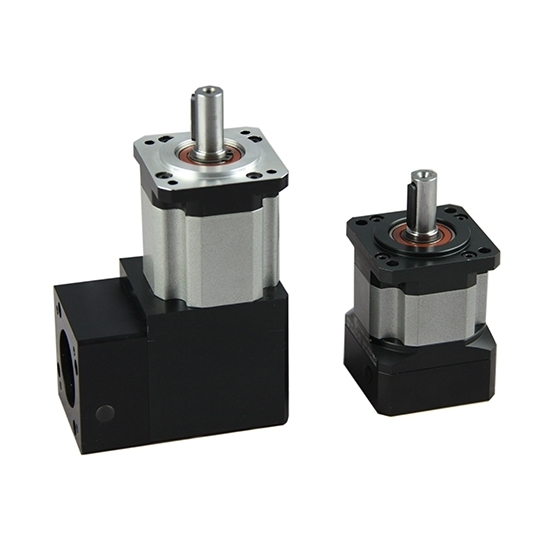

   Brushless DC motor works with a gearbox (choose inline gearbox or right angle gearbox with gear ratio from 3:1 to 200:1) effectively reduce the motor's speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
4. Low noise and smooth operation
   Brushless DC motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
5. Good protection performance and continuous duty (24/7)
   1kW BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

Line Define

Power Wire

Feedback Wire

Motor Dimension (Unit: mm)

Details

Tips: Different Structure between BLDC motor and AC motor

There is a coil in the AC motor. The resistance of this coil is generally not very high, which is around 100 ohms. Taking the phase shift as an example, it is divided into starting winding and operation winding.
The internal structure of the brushless DC motor is mainly composed of the stator and the rotor. In the past, brush motors were used in most cases. There is a carbon brush on the rotor of the brush motor, and there is a Hall sensor on the motor. During the working process, it continuously and alternately contacts with the conversion plate, which generates an alternating electromagnetic field and continues to rotate. However, the later developed and designed DC brushless motors have no carbon brushes and are much smaller than AC motors and DC brushed motors in size, so many industrial equipment now use brushless DC motors.
