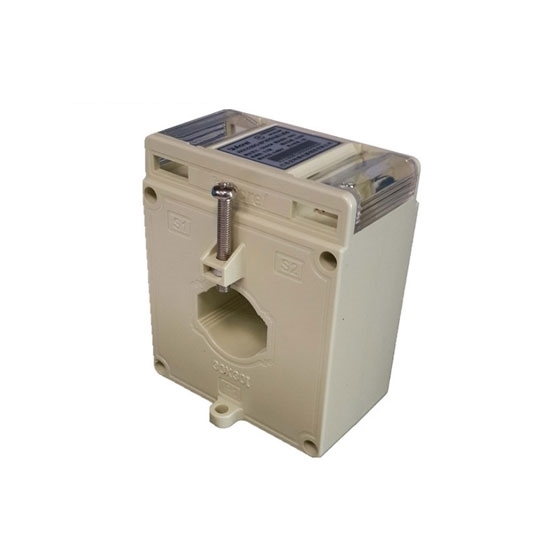

Current Transformer, 30/5A, 75/5A, 100/5A To 400/5A

0 reviews • Write a review

from

$116.98

Ex Tax: $116.98

Stock: In Stock
Model: RDDLZ-CT-3030I
Weight: 1.00
SKU: RDDLZ-CT-3030I

Available Options

Short Description

Current Ratio (A)

Accuracy Classes

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Current transformer is one of important devices for power system and used to transform the voltage or current. Current radio 50:5A, 100:5A, 250:5A, to 400:5A. AC current transformer with rated frequency 50Hz or 60Hz, free shipping and good value for money.

Note: The installation method of current transformer can be fixed by busbar and fixed by the bottom plate, suitable for installation in any direction. The primary conductor can be busbar or cable.

Specification:

Model	RDDLZ-CT-3030I
Weight	1kg
Current Ratio (A)	VA Secondary load/ Burden (VA)			Cross-core Turn Number
Current Ratio (A)	0.2	0.5S	0.2S	Cross-core Turn Number
30/A	2.5	2.5	2.5	3
50/5	2.5	2.5	2.5	2
75/5	2.5	2.5	2.5	2
100/5	2.5	2.5	2.5	1
150/5	2.5	1.5	1.5	5
200/5	5	5	3.75	1
250/5	5	5	5	1
300/5	5	5	5	1
400/5	5	5	5	1
Rated Frequency	50/60Hz
Rated Test Voltage	3kV AC (1min)
Rated Short-Time Thermal Current (ith)	60 in
Rated Dynamic Current (idyn)	2.5 lth
Rated Voltage (Um)	0.66 kV AC
Continuous Overload (ld)	1.2 in
Operating Temperature	-10℃~50℃
Housing Self-Extinguishing Class	VO
Safety Factor	FS 5
Secondary Current	5A/ 1A
Bus Specification (mm)/Number	/

Dimension (unit: mm)

Model	Dimensions			Perforation size			Installation size
Model	W	H	D	a	e	φ	M	N
RDDLZ-CT-30I	62	78	45	32	11	22	40	57.5
RDDLZ-CT-3030I	85	102	50	32	11	28		57.5
RDDLZ-CT-40I	75	95	45	42	11	31	40	57.5
RDDLZ-CT-60I	102	130	45	61.5	21	45	42	57.5
RDDLZ-CT-60II	102	125	45	31	33	/	42	57.5
RDDLZ-CT-80I	118	140	45	82	11	52	60	57.5
RDDLZ-CT-100II	145	125	45	103	35	/	80	57.5

Tips: What causes the current transformer to burn out?

Secondary open circuit of the current transformer produces high voltage to burn out the current transformer.
Long-term use of the current transformer makes the insulation aging, local breakdown or discharge occurs and overvoltage is thereof produced, thus burning out the current transformer.
Long-term overload operation makes the current transformer to give out heat, it is thereof burned out.
The aluminum contact surface of current transformer’s primary connection is seriously oxidized, which results in large contact resistance. The contact resistance gives out heats and burns out the current transformer.
