Continuous Duty Industrial Vacuum Dust Extractor

0 reviews • Write a review

from

$2,952.31

Ex Tax: $2,952.31

Stock: In Stock
Model: RDDLZ-IVC-309
Weight: 1.00
SKU: RDDLZ-IVC-309

Available Options

Filter Cleaning Mode

Number of Filter Element

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

The industrial vacuum dust extractor is especially suitable for working conditions with small particle size and large amount of dust such as floor polishing and shot blasting.
Structure is compact, fuselage height is adjustable, it is convenient for transit transportation.
Continuous bag design, convenient for loading and unloading. The bag can be pulled continuously. After a certain amount of dust is collected, use a cable tie to seal and shear the bag to continue using it.
Pressure loss of filter barrel is small, and filtering accuracy is high.

Specification

Model	RDDLZ-IVC-T302	RDDLZ-IVC-T303
Power (kW)	3.6
Voltage	220V 50/60Hz
Vacuum (mBar)	200
Airflow (m³/h)	600
Noise (dbA)	80
Filter Cleaning Mode	Jet pulse filter cleaning	Automatic self-cleaning
Dimension (mm)	6606751200
Number Of Filter Element*	1, 2, 4, 6, 8, 10
Certification	CE
Filter Area (cm²)	30000
Filter Type	HEPA filter TORAY polyester
Filter Capacity (H11)	0.3um>99.95%

*Note: Filter element life is 3 months, please select according to your needs.

Filter Cleaning Mode Diagram of Industrial Vacuum Dust Extractor

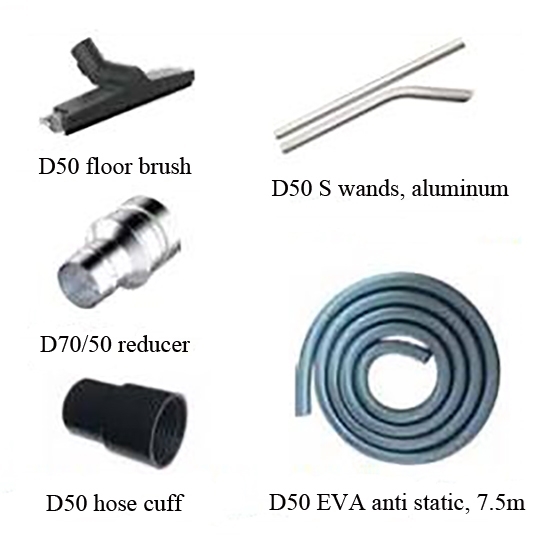

Industrial Vacuum Dust Extractor Accessories and Packing List

P/N	Description	Unit	Quantity
1	Vacuum Dust Extractor Host	pc	1
2	D50 S wands	pc	1
3	D70/50 reducer	pc	1
4	D50 EVA anti static	meter	7.5
5	D50 hose cuff	pc	1
6	D50 floor brush	pc	1

Adjustable Height

Tips: Precautions of continuous duty industrial vacuum dust extractor

Ground as much as possible (because static electricity may be generated).
When using industrial vacuum dust extractor to absorb water, it is best to remove the dust bag.
If the suction of industrial vacuum cleaner drops or there is no suction, check the hose for blockage. If there is no blockage, immediately turn off the power and check if the vacuum dust extractor motor is operating normally. If it is abnormal, please contact the technician immediately.
When using industrial vacuum dust extractor to absorb relatively small dust, should install primary filter bags and high-efficiency filter bags. It can reduce the damage to motor caused by excessive dust, thereby increasing the life of the vacuum cleaner.
