Analog Timer Relay, 6s/12s/30s/60s, 12V/24V/220V

0 reviews • Write a review

from

$55.32

Ex Tax: $55.32

Stock: In Stock
Model: RDDLZ-TIMER-A
Weight: 1.00
SKU: RDDLZ-TIMER-A

Available Options

Power Supply

Accessories

Model

Output Mode

Timing Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

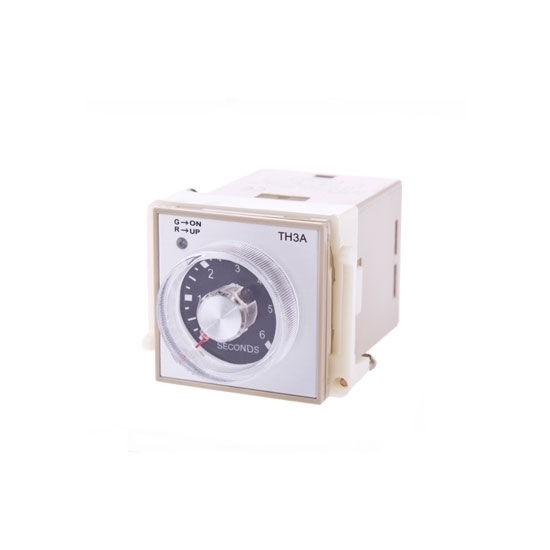

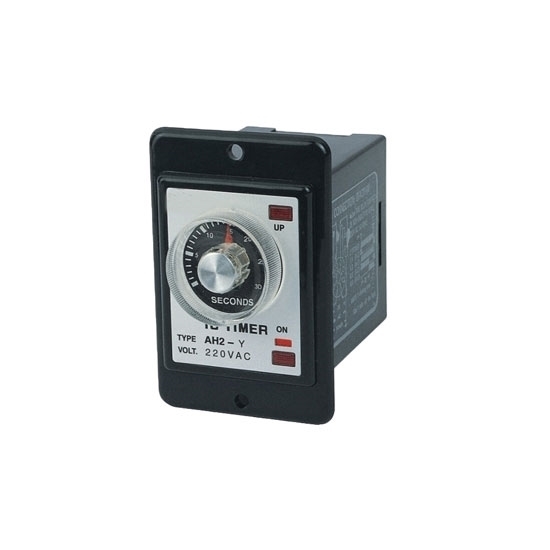

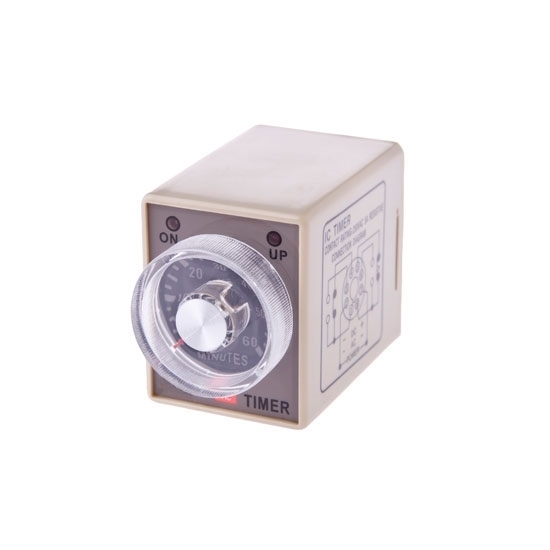

Analog timer relays, 8-pin time delay relay, have selectable timing range 6s, 12s, 30s, 60s, 6m, 12m, 30m, 60m, 6h, 12h, 30h, 60h in different sizes, easy to set the time limit with large transparent time setting knob. Time delay relays are widely applied in the industrial automation field with high quality and low price.

Specification

Model		RDDLZ-AH2-Y	RDDLZ-TAH3-3	RDDLZ-TH3A
Mode of Operation		On delay timer
Supply Voltage (Optional)		110V AC, 220V AC, 12V DC or 24V DC
Output Mode (Optional)		Mode 2: One group instantaneous and one group delay output Mode 3: One group suspension delay output Mode 4: Two groups sync delay output
Timing Range (Optional)		second: 6s, 12s, 30s, 60s minute: 6min, 12min, 30min, 60min hour: 1.2h, 6h, 12h, 30h, 60h
Setting Method		Knob with pointer
Contact Capacity		3A 250V AC (Resistive Load)
Power Comsuption		≤2W
Mounting Type		Panel Mount
Dimensions	External (WHD)	588868mm	405058mm	484873mm
	Cut-Out (W*H)	52*64mm	45.5*56mm	45*45mm

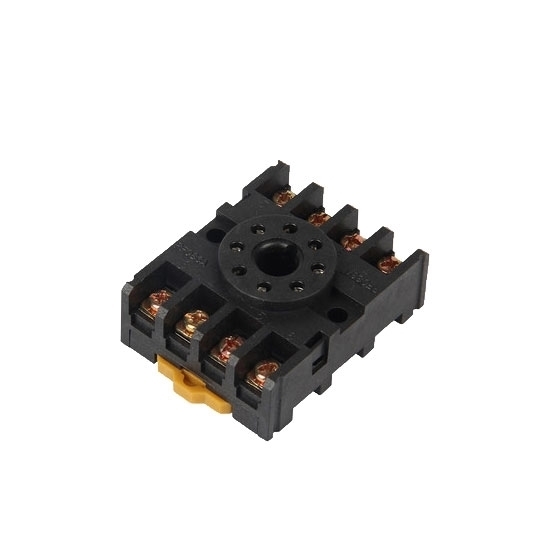

Accessary (Optional)		8-pin Mounting Socket
Weight		500g
Operating Temperature		-10 ~ 50℃
Humidity		≤85% no caustic or magnetic interference

Analog Timer Relay Connection & Output Operation Mode

• Mode 2: One group instantaneous and one group time delay output	• Mode 3: One group suspension delay output


• Mode 4: Two group sync time delay output

Details

Tips: Timer relay - on-delay timer and off-delay timer

The timer relay or time delay relay is composed of two types: on delay timer and off delay timer.

• On delay timer
When the coil of the timer relay is energized, the contact of on delay type will act after the time limit (the normally closed contact is open and the normally open contact is closed). The contact is immediately restored after the coil is de-energized.

• Off delay timer
When the coil of time delay relay is powered on, the contact of off delay type contact acts immediately (the normally closed contact is open, the normally open contact is closed). After the coil is powered off, the contact will not return to normal until the time limit is over.
