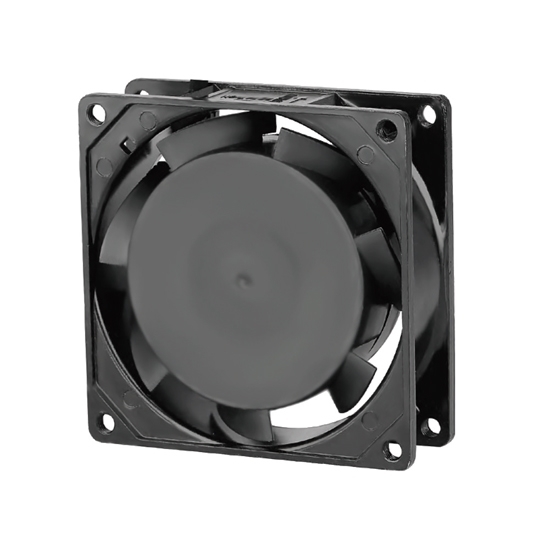

AC Axial Fan, 80mm X 80mm X 25mm, 110V/ 220V

0 reviews • Write a review

from

$57.39

Ex Tax: $57.39

Stock: In Stock
Model: RDDLZ-AAF-8025
Weight: 1.00
SKU: RDDLZ-AAF-8025

Available Options

Short Description

Rated Voltage

Bearing Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

80mm x 80mm x 25mm axial fan uses alternating current (AC) to power its motor, making it suitable for various industrial and commercial applications. 110V/ 220V axial flow fan is commonly used for cooling electronic equipment, ventilating spaces, and HVAC systems due to their efficiency in moving large volumes of air.

Specification

Model	RDDLZ-GX8025HSL		RDDLZ-GX8025HBL
Bearing Type	Sleeve Bearing		Ball Bearing
Number of Impellers	7		7
Frequency	50/ 60Hz		50/ 60Hz
Rated Voltage	110/ 120V AC	220/ 240V AC	110/ 120V AC	220/ 240V AC
Current	0.14A	0.09A	0.174A	0.09A
Power	14W		14W
Speed	2400rpm		2500rpm
Noise Level	32dBA		32dBA
Air Flow	35cfm		39cfm
Dimension	80x80x25mm		80x80x25mm

Dimension (Unit: mm)

Air Flow

Tips: AC axial fan working principle

An AC axial fan is a type of cooling fan that uses alternating current (AC) to operate and is designed to move air axially, meaning the airflow direction is parallel to the fan's axis. These fans are commonly used in various industrial, commercial, and residential applications to provide ventilation, cooling, and heat dissipation.

Key components include a motor, fan blades, and a housing. The motor drives the blades, creating a pressure difference that draws air in and expels it along the axis. AC axial fans are favored for their simplicity, reliability, and ability to handle high air flow rates at relatively low pressure drops.

Typical applications include cooling electronic equipment, HVAC systems, refrigeration, and ventilation in buildings and machinery. Their robust design makes them suitable for continuous operation, and they come in various sizes and power ratings to match specific application needs.
