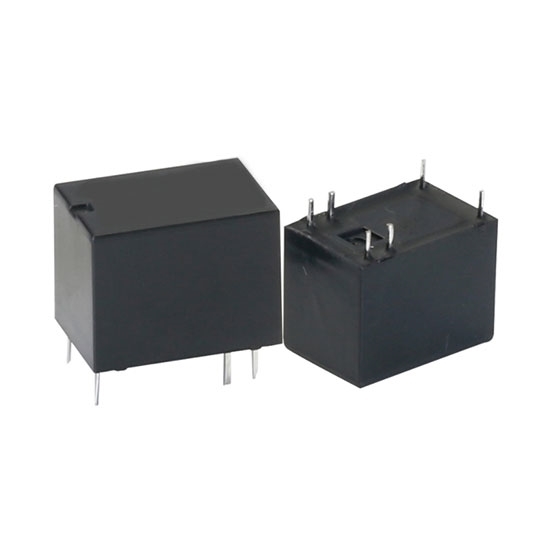

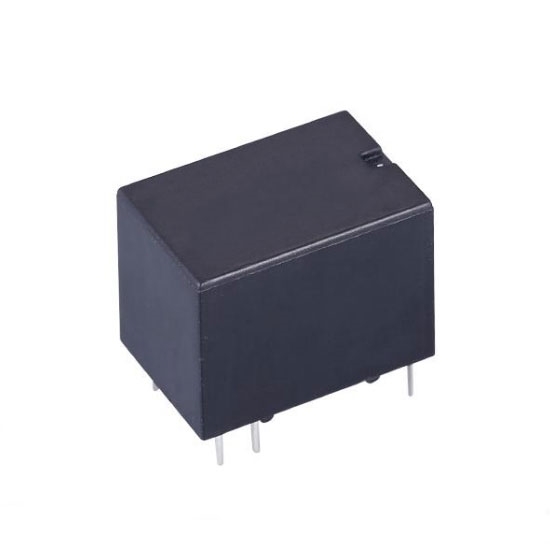

9V DC Signal Relay, SPDT, 3A

0 reviews • Write a review

from

$18.99

Ex Tax: $18.99

Stock: In Stock
Model: RDDLZ-SR-W38DC9V
Weight: 1.00
SKU: RDDLZ-SR-W38DC9V

Available Options

Short Description

Coil Power

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price 9V signal relay with full-turn and full-negative electromagnetic coil is more stable and precise.

Features

3A contact switching capability.
Contact form: SPDT (1C).
High sensitive type, coil power is 200mW/360mW/450mW.
Standard DIP construction terminal.
Ultra – small type, gold – plated contacts.
Suit for complete machine wave soldering and integral cleaning process.
Main applications: Electric power protection, automation, communication.

Specification

Model			RDDLZ-SR-FH38DC9V
Type			Standard Type	Sensitive Type	High Power Consumption Type
Coil Parameters (23℃)	Nominal Voltage		DC 9V
	Nominal Power		360mW	200mW	450mW
	Pick-up Voltage		≤6.75VDC	≤6.75VDC	≤6.75VDC
	Drop-out Voltage		≥0.45VDC	≥0.45VDC	≥0.45VDC
	Rated Current		40mA	22.2mA	50mA
	Coil Resistance		225Ω	450Ω	180Ω
	Max Voltage		DC 11.7V	DC 11.7V	DC 11.7V
Contact Parameters	Contact Form		SPDT (1C)
	Contact Resistance (Initial)		≤100mΩ (6VDC 0.1A)
	Contact Material		AgNi + Gold Plating
Rated Value	Rated Load (Resistance Load)		1A 240VAC/30VDC
			3A 120VAC
	Max. Switching Voltage		240VAC/30VDC
	Max. Switching Current		5A
	Max. Switching Capacity		360VA/30W
	Min. Allowing Load		5VDC 100mA
Electrical Performance	Insulation Resistance (Initial)		1000mΩ (500VDC)
	Dielectric Strength (Initial)	Between Open Contacts	500VAC, 1 min
		Between Coil & Contacts	1000VAC, 1 min
	Operate Time		≤10ms
	Release Time		≤5ms
Mechanical Performance	Shock Resistance	Functional	98m/s²(10g)
		Destructive	980m/s²(100g)
	Vibration Resistance		10Hz ~ 55Hz 1.5mm DA
Endurance	Mechanical		1 x 10⁷ops
	Electrical		1A 240VAC 1 x 10⁵ops (ON/OFF=1s/9s)
			3A 120VDC 5 x 10⁴ops (ON/OFF=1s/9s)
Operate Condition	Ambient Temperature		-25℃ ~ 70℃
	Humidity		5% to 85%
Termination			PCB (DIP Encapsulation)
Unit Weight			5g
Construction			Plastic Sealed, Flux Proofed

Note: In order to maintain the initial performance parameters of the signal relay, please be careful not to drop it.

Dimension

Units: mm

Performance curves

Tips: Signal relay troubleshooting

In the process of circuit application, improper operation or other interference factors will lead to signal relay faults. Common faults of signal relays include fuse fusing, wire breaking, sealing-off, screw loosening, coil burnout, bad contact of contacts, bad contact of connectors, bad insulation between lines and mixed power supply of lines. The solutions of the signal relay faults are as follows.

Mixed line protection circuit
Indoor and signal relay box environment is better, as long as strict construction technology is adopted, mixed line fault rarely occurs in the circuit, so it is no need to take mixed line protection measures. For the outdoor circuit, whether the cables or other wires are used as the connecting line, the possibility of mixed line failure is more likely to occur, and the mixed line protection circuit needs to be adopted.
Disconnection protection circuit
Disconnection fault is far more than mixed fault. The closed circuit method is used to design the signal relay circuit in order to drop the signal relay to protect the circuit in the event of a disconnection fault.
