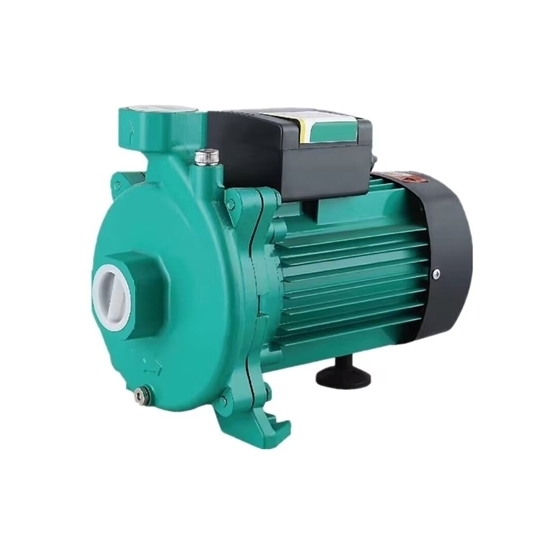

960W solar circulation pump is designed for efficient pressure enhancement in water supply pipelines. Domestic solar booster pump features a robust all-copper motor, max 25m lift and 115L/min flow, DN25 pipe diameter, and operates seamlessly on a 220V 50Hz power supply, perfect for hot water recirculation.

Specifications

• Model: RDDLZ-PUN-601EH
• Power Supply: 220V 50Hz
• Rated Power: 600W
• Maximum Power: 960W
• Maximum Current: 4A
• Maximum Lift: 25m
• Maximum Flow: 115L/min
• Rated Lift: 20m
• Rated Flow: 50L/min
• Pipe Diameter: DN25
• Medium Temperature: 0℃~130℃
• Weight: 11.95kg

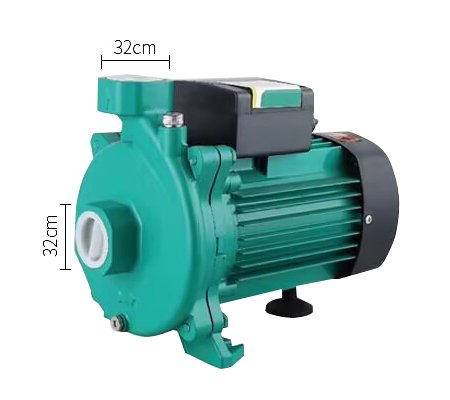

Dimension

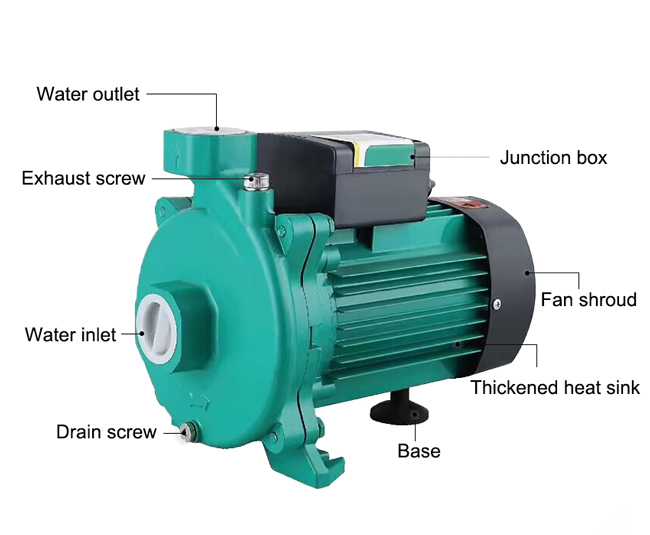

Details

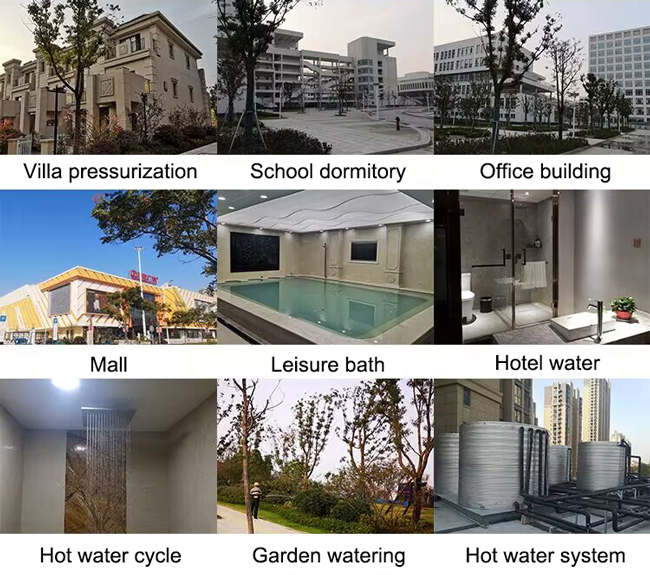

Applications

Tips: What is a circulation pump?

A circulation pump, also known as a circulator pump, is a device designed to circulate fluid within a closed system. These pumps are commonly used in heating and cooling systems to ensure the even distribution of hot or cold water. In a heating system, a circulation pump helps move hot water from the boiler to the radiators or underfloor heating system, promoting efficient heat transfer. In cooling systems, circulation pumps distribute chilled water to various components such as air conditioning units or cooling coils.

The primary purpose of a circulation pump is to maintain a consistent flow of fluid through the system, preventing stagnation and promoting uniform temperatures. This enhances energy efficiency, reduces operating costs, and improves the overall performance of the heating or cooling system. Circulation pumps are commonly found in residential, commercial, and industrial applications where precise temperature control is essential.
