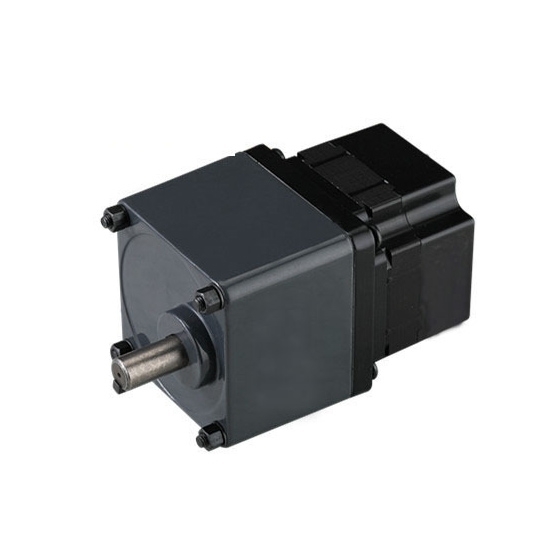

90 W DC Gear Motor, 3000 Rpm, 12V/24V/48V

0 reviews • Write a review

from

$193.25

Ex Tax: $193.25

Stock: In Stock
Model: RDDLZ-BLDC-90
Weight: 1.00
SKU: RDDLZ-BLDC-90

Available Options

Short Description

With Matched Controller

Gear Ratio

Voltage (DC)

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost 90W DC gear motor with 3000 rpm rated speed, 9.38A rated current at 12V, 4.69A at 24V, 2.34A at 48V, 3:1 to 200:1 gear ratio are available here. This small DC gear motor suitable for a lot of industrial applications such as food processing machine, sealing equipment, textile machine etc..

90W DC gear motor specifications

Model	RDDLZ-D5BLD90-12	RDDLZ-D5BLD90-24	RDDLZ-D5BLD90-48
Power	90W	90W	90W
Voltage	12V	24V	48V
Rated Speed	3000 rpm	3000 rpm	3000 rpm
No-load Speed	3300 rpm	3300 rpm	3300 rpm
Rated Current	9.38A	4.69A	2.34A
Rated Torque	0.29 N.m	0.29 N.m	0.29 N.m
Peak Torque	0.86 N.m	0.86 N.m	0.86 N.m
No-load Current	< 0.85A	< 0.7A	< 0.5A
Compatible Driver Model	BLD-300B (Click it to the product page)		BLD-120A (Click it to the product page)
Weight	2.3 Kg
Protection Grade	IP54
Motor Lead Length	300mm
Temperature	0~50℃
Gearbox Model	2GN□K Enter the gear ratio into the box (□) within the model name
Gear Ratio	3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

Note: Motor length, power, voltage and speed can be customized according to your requirements under the allowed circumstance of adoptable dimension.

The allowable torque with a gearbox

Gear Ratio	3	5	7.5	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Speed (r/min)	1000	600	400	300	240	200	167	150	120	100	83.33	75	60	50	40	33	30	25	20	17	15
Allowable Torque (N.m)	0.67	1.16	1.74	2.32	2.61	3.14	3.77	3.78	4.73	5.67	6.81	7.56	9.46	11.35	14.18	15.21	16.9	20	20	20	20
Allowable Torque (kgf.cm)	6.96	11.6	17.4	23.21	26.14	31.37	37.65	37.82	47.27	56.73	68.07	75.64	94.55	113.5	141.8	152.1	169	200	200	200	200

Note:

The values colored "Red" indicate that the gearbox and the DC motor are running in the same direction, and the other values are in the opposite direction.
When it is desired to reduce the speed further than the gear ratio in the table above, an intermediate speed reducer with a gear ratio of 10 can be installed between the motor and the gearbox.

Wiring Definition

Dimension (Unit: mm)

*Mounting screws are included with gearbox

Details

Tips: Why does the gear motor vibrate?

Armature imbalance. Due to the centrifugal force generated by the unbalanced mass during rotation, a rotational force acts on the bearing, causing vibration of the motor. When the air gap is uneven, the main engine is not tightly fixed, or the rigidity of the base and the end cover is poor, vibration will be aggravated. Therefore, if the rotor is found to be unbalanced during the inspection, it must be rebalanced.
The radial clearance of the bearing is too large, and the outer ring and the end cover loosen together. When assembling, the bearings should be inspected. Bearing and journal, bearing seat must meet the requirements, otherwise it must be sprayed or brushed to deal with the process, to avoid bearing vibration caused by poor. For worn bearings, the frequency of vibration and noise during the operation of the motor is relatively high and it is easy to judge. In this case, bearings should be replaced.
Manufacturing error or deformed operation of the seat, end cover and other important braces. The shape and position error on the fitting surfaces of seat, end cover and other important rotor braces, particular the deformation of important braces (such as seat, end cover) of large and medium motors after long-term operation, make the bearing to produce an interference force, thus leading to the motor vibration.
